Productomschrijving
Portable 15" PA system with 2 UHF receiver units, audio player and bluetooth including battery

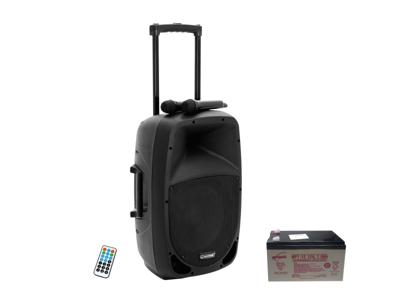

OMNITRONIC MES-15BT2 Wireless PA System
Portable 15" PA system with 2 UHF receiver units, audio player and Bluetooth
- Portable all-in-one PA system with 45 watts output power
- Battery pack must be ordered separately
- 3-channel power mixer (45 W RMS) and 2-way speaker system with a 38 cm woofer (15")
- SD card slot and USB port
- UHF receiver units and 2 matching wireless microphones
- 2 mono microphone channels
- 1 stereo input channel for line signal sources e.g. CD players and notebooks
- Adjustable reverb effect for wireless microphones/microphone channels
- Graphic 5-band EQ, master volume control
- 2 master outputs (mono)
- Terminals for external 12V battery operation (e.g. car battery)
- Battery operation up to 5h
- Trolley
- For application areas such as: Theater; mobile use; wedding/gala/events; product presentations and lectures
- Integrated automatic charging of the battery and status indicator
- Black metal grille
- 2 Rugged carrying handles
- Application possibility: Standing; monitoring; on stand
- Cordless, flexible and versatile
audio player
- Control via Bluetooth; IR remote control
- 2.4 GHz license-free worldwide
- Bluetooth: operating range up to 10m
microphone
- Polar pattern: Cardioid
- Operating range up to 30m
Package contents
- 1 x device, 2 x microphone, 2 x antenna, 1 x power cord, 1 x user manual, 1 x declaration of conformity, 1 x remote control, 1 x battery
ACCESSORY Battery 12V/7000mAh
Maintenance-free lead acid battery
- High energy densitiy
- Long life
- Sealed leak proof construction
- Cordless, flexible and versatile
| Weight: | 15,43 kg |
| OMNITRONIC MES-15BT2 Wireless PA System |
| Power supply: | 230 V AC, 50 Hz
Or
12 V DC |
| Power consumption: | 75 W |
| Output power: | Max. 90 W; 45 W RMS |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Battery/battery pack (optional)
Mains input via spring terminal |
| Battery pack type: | 1 x lead 12 V, 7000 mAh, 84 Wh |
| Battery pack: | Battery operation up to 5h
Recharging time 11h |
| Frequency range: | 60 - 19000 Hz |
| Sensitivity: | 90 dB (1W/1m) |
| Max. SPL: | 110 dB |
| Frequency selection: | Fixed frequencies |
| Attachment system: | Flange: Ã 35mm |
| Control elements: | Audio player, echo effect control |
| Status LED: | Power, clip, microphone, charge status indicator |
| Connections: | Antenna via 2 x BNC (F)
Input: microphone via 2 x 6.3 mm jack socket (mono) mounting version
Input: line via 1 x stereo RCA
Output: master via 1 x stereo RCA |
| Equalizer: | Master: 1 x graphic equalizer 5-band stereo
Centre frequency: 100Hz/330Hz/1,1kHz/3,3kHz/6,8kHz |
| Speaker: | 1 x woofer 15"
1 x horn 1" |
| Type of speaker: | Compact cabinet speaker |
| Carrying handle: | 2 pc/pcs |
| Transport aid: | Trolley |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Length: 37 cm
Width: 44 cm
Height: 70 cm |
| Weight: | 13,10 kg |
| Microphone |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Range: | Range up to 30m |
| Carrier frequency: | 830 MHz; 864 MHz |
| Frequency stability: | ± 0,005 % |
| RF power output: | 10 mW |
| Material: | Plastic |
| Dimensions: | Length: 25,5 cm
Diameter: Ã 3,2 cm |
| Weight: | 200 g |
| Remote control |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Audio player |
| Control: | Bluetooth; IR remote control |
| Audio player: | USB + SD + Bluetooth |
| Range: | Bluetooth: range up to 10m |
| Frequency band: | 2.4 GHz |
| Music format: | MP3, WMA; WAV |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| USB port: | Type A |
| ACCESSORY Battery 12V/7000mAh |
| Battery pack type: | 1 x lead 12 V, 7000 mAh, |
| Connections: | 6.3 mm flat plug |
| Dimensions: | Width: 16,1 cm
Depth: 6,5 cm
Height: 10 cm |
| Weight: | 2,33 kg |
