RELACART H-31 Microphone for HR-31S system

0
Hand-held microphone with PLL multifrequency transmitterDynamic hand-held microphone with UHF pilot tone technology (PLL)Ergonomic aluminum alloy housing, applicable for touring731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)823-832 MHz (license-free in German...

Verkopers met dit product

Verkoper
Bezorging
Prijs
ST-shop.nl logo
ST-shop.nl
1-3 dagen
niet bekend
311,25
Conrad NL logo
Conrad NL
7-11 werkdagen
gratis
285,-

Anderen bekeken ook

Nieuw
RELACART H-31 Microphone for HR-31S system
RELACART H-31 Microphone for HR-31S system
Hand-held microphone with PLL multifrequency transmitterDynamic hand-held microphone with UHF pilot tone technology (PLL)Ergonomic aluminum alloy housing, applicable for touring731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidthEasy and error-free synchronization between receiver and transmitter via infrared signalRF output power Hi/Low adjustableGain level Hi/Mid/Low adjustableDirectly compatible with Shure's SM58 capsulePolar pattern: CardioidOLED displayUHF 823 - 832 MHz License-free and approved in large parts of EuropeUHF 731 - 790 MHz License-free and approved in large parts of EuropeOperating range up to 80m with line-of-sightPackage contents1 x microphone, 1 x user manual, 1 x declaration of c…
311,25
Nieuw
RELACART HR-31S 1-channel True Diversity System
RELACART HR-31S 1-channel True Diversity System
The HR-31S is a premium true diversity system in the UHF spectrum that can fully exploit its strengths, in particular in connection with the RWW software. The transmission takes place either in the professional switchable band 731-790 MHz or in the license-free range 823-832 MHz. The other features also convince: quick setup via infrared andan exceptionally long service life of the transmitter from up to 15 hours on just one set of batteries.Wireless microphone system with PC control, 731-790 + 823-832 MHzReceiver and microphone also available separatelyCharge status indicatorRELACART HR-31S 1-channel True Diversity ReceiverTrue diversity wireless receiver with PC controlMultifrequency wireless receiver with high-quality true diversity receptionReal-time monitoring and data management using RWW PC software731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)823-832 MHz (license-free in Germany) offers …
648,75
Nieuw
RELACART ET-60 Bodypack with Lavalier Microphone for WAM-402
RELACART ET-60 Bodypack with Lavalier Microphone for WAM-402
UHF pocket transmitter for model WAM-402, 823-832 + 863-865 MHzPilot frequency squelch technology delete wireless RF interference10 groups with 90 fixed frequencies within 11 MHz switching bandwidthEasy and error-free synchronization between receiver and transmitter via infrared signalLED for battery status, frequency, channel and groupUHF 823 - 832 MHz License-free and approved in large parts of EuropeUHF 863 - 865 MHz License-free and approved in EuropeUp to 8 transmitters can be operated in parallel without interferencetransmitterOperating range up to 80mmicrophonePolar pattern: CardioidPackage contents1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformityType:Bodypack with microphonePower consumption:0,42 WFrequency band:UHF 823 - 832 MHz; UHF 863 - 865 MHzSwitching bandwidth:11 MHzParallel mode:Max. 8 transmitterRF power output:10 mWModulation:FMFrequency selection:90 switchable frequenciesIn 10 groups with up to 10 preset frequencies eachW…
181,25
Nieuw
RELACART UH-1 UHF Handheld Microphone for WAM-402
RELACART UH-1 UHF Handheld Microphone for WAM-402
Microphone with PLL multifrequency transmitter for WAM-402, 823-832 + 863-865 MHzDynamic hand-held microphone with UHF pilot tone technology (PLL)Ergonomic aluminum alloy housing, applicable for touringEasy and error-free synchronization between receiver and transmitter via infrared signalRF output power Hi/Low adjustableGain level Hi/Mid/Low adjustablePolar pattern: CardioidOperating range up to 60mUHF 823 - 832 MHz License-free and approved in large parts of EuropeUHF 863 - 865 MHz License-free and approved in EuropeOLED displayCharge status indicatorPackage contents1 x microphone, 1 x user manual, 1 x declaration of conformityType:Hand-held transmitterPower supply:3 V DCCapsule type:DynamicPolar pattern:CardioidBattery:2 x Mignon (AA) (not included)Range:Range up to 60mFrequency band:UHF 823 - 832 MHz; UHF 863 - 865 MHzSwitching bandwidth:11 MHzRF power output:10 mWModulation:FMFrequency selection:90 switchable frequenciesIn 10 groups with up to 10 preset frequencies eachDisplay typ…
181,25
Nieuw
RELACART UD-1 UHF Gooseneck Microphone for WAM-402
RELACART UD-1 UHF Gooseneck Microphone for WAM-402
UHF gooseneck microphone for model WAM-402, 823-832 + 863-865 MHzGooseneck microphone with UHF pilot tone technology (PLL)Easy and error-free synchronization between receiver and transmitter via infrared signalGain control and low cut switchOperating range up to 60mUHF 823 - 832 MHz License-free and approved in large parts of EuropeUHF 863 - 865 MHz License-free and approved in EuropeLCD displayCharge status indicatorUp to 8 transmitters can be operated in parallel without interferencePackage contents1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformityType:Gooseneck microphonePower supply:3 V DCPower connection:Battery/battery packCapsule type:CondenserBattery:2 x Mignon (AA) (not included)Low cut:120Hz, switchableGain:Input: ± 10 dBRange:Range up to 60mFrequency band:UHF 823 - 832 MHz; UHF 863 - 865 MHzSwitching bandwidth:11 MHzFrequency stability:± 0,0005 %Parallel mode:Max. 8 transmitterRF power output:10 mWModulation:FMFrequency selection:90 switchable f…
186,25
Nieuw
RELACART UB-1 UHF Boundary Microphone
RELACART UB-1 UHF Boundary Microphone
UHF boundary microphone with PLL multifrequency transmitterElectret boundary microphone with UHF pilot tone technology (PLL)Easy and error-free synchronization between receiver and transmitter via infrared signalRugged metal housingUHF 863 - 865 MHz License-free and approved in EuropeUHF 823 - 832 MHz License-free and approved in large parts of EuropeMonochrome LCD displayCharge status indicatorUp to 8 transmitters can be operated in parallel without interferencePackage contents1 x microphone, 1 x user manual, 1 x declaration of conformityType:Boundary microphonePower supply:3 V DCPower connection:Battery/battery packCapsule type:ElectretBattery:2 x Mignon (AA) (not included)Gain:Output:Frequency band:UHF 863 - 865 MHz; UHF 823 - 832 MHzParallel mode:Max. 8 transmitterModulation:FMFrequency selection:90 switchable frequenciesIn 10 groups with up to 10 preset frequencies eachDisplay type:Monochrome LCD displayDisplay:Charge status indicator , frequency , channelControl elements:Transmit…
223,75
Nieuw
RELACART UH-222D Microphone 823-832 + 863-865 MHz
RELACART UH-222D Microphone 823-832 + 863-865 MHz
Hand-held microphone with PLL multifrequency transmitterDynamic hand-held microphone with UHF pilot tone technology (PLL)Ergonomic aluminum alloy housing, applicable for touring10 groups with 90 fixed frequencies within 11 MHz switching bandwidthEasy and error-free synchronization between receiver and transmitter via infrared signalRF output power Hi/Low adjustableGain level Hi/Mid/Low adjustableCapsule M-022Directly compatible with Shure's SM58 capsulePolar pattern: Super cardoidOperating range up to 80mUHF 863 - 865 MHz License-free and approved in EuropeUHF 823 - 832 MHz License-free and approved in large parts of EuropeOLED displayCharge status indicatorPackage contents1 x microphone, 1 x user manual, 1 x declaration of conformityType:Hand-held transmitterPower supply:3 V DCCapsule type:DynamicPolar pattern:Super cardoidBattery:2 x Mignon (AA) (not included)Frequency range:120 - 16000 HzSensitivity:-53 dBMax. SPL:145 dBRange:Range up to 80mFrequency band:UHF 863 - 865 MHz; UHF 823 …
148,75
Nieuw
RELACART HR-31S 1-channel True Diversity Receiver
RELACART HR-31S 1-channel True Diversity Receiver
The HR-31S is a premium true diversity system in the UHF spectrum that can fully exploit its strengths, in particular in connection with the RWW software. The transmission takes place either in the professional switchable band 731-790 MHz or in the license-free range 823-832 MHz. The other features also convince: quick setup via infrared andan exceptionally long service life of the transmitter from up to 15 hours on just one set of batteries.True diversity wireless receiver with PC controlMultifrequency wireless receiver with high-quality true diversity receptionReal-time monitoring and data management using RWW PC software731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidthPilot frequency squelch tech…
373,75
Nieuw
RELACART MIPASSPORT Wireless Cameramount Microphone System
RELACART MIPASSPORT Wireless Cameramount Microphone System
Wireless audio transmission system for camerasPortable transmitter and receiver with attachment clipPerfect video sound for cameras, smartphones, camcorders, etc.Easy attachment to clothing, the camera's hot shoe, etc.Ultra-compact and lightweight designRechargeable lithium batteriesCharging via USB-C socketTransmitter with integrated omnidirectional condenser microphone3.5 mm TRS jack for an external lavalier microphone (optional)Receiver with 3.5 mm TRS jack for your recording device and 4-stage gain control (0 dB, -3 dB, -6 dB, -9 dB)Automatic pairing in 2 secondsWorks with iOS and Android devicesOperating range up to 40m with line-of-sight2.4 GHz license-free worldwideUp to 6 transmitters can be operated in parallel without interferenceOLED displayFor application areas such as: Trade fair and shop fitting; mobile use; mobile djs / entertainer; homerecording and studios; video and photographytransmitterPolar pattern: OmnidirectionalCordless, flexible and versatileBattery operation u…
168,75
Nieuw
RELACART UR-222D 2-channel UHF System 823-832 + 863-865 MHz
RELACART UR-222D 2-channel UHF System 823-832 + 863-865 MHz
True diversity wireless microphone system with two channels, 823-832 MHz + 863-865 MHzRELACART UR-222D 2-channel UHF Receiver 823-832 + 863-865 MHz2-channel multifrequency wireless receiver with high-quality diversity reception10 groups with 90 fixed frequencies within 11 MHz switching bandwidthPilot frequency squelch technology delete wireless RF interferenceAutomatic frequency scan (AFS) finds interference-free channelsEasy and error-free synchronization between receiver and transmitter via infrared signal2 detachable BNC antennas allow for use with the R-14D antenna dividerRugged metal housingMulticolor LCD displayUHF 863 - 865 MHz License-free and approved in EuropeUHF 823 - 832 MHz License-free and approved in large parts of EuropeOperating range up to 80m with line-of-sightDesktop console housing(19") 48.3 cm rack installation possible 1 UUp to 9 transmitters can be operated in parallel without interferenceCharge status indicatorPackage contents1 x receiver, 1 x external mains ad…
586,25

Klanten-reviews van RELACART H-31 Microphone for HR-31S system

Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

Meer over RELACART H-31 Microphone for HR-31S system

Productomschrijving

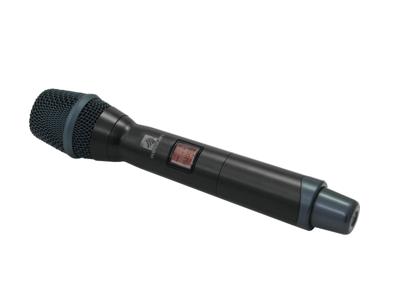

Hand-held microphone with PLL multifrequency transmitter

  • Dynamic hand-held microphone with UHF pilot tone technology (PLL)
  • Ergonomic aluminum alloy housing, applicable for touring
  • 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
  • 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
  • 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • RF output power Hi/Low adjustable
  • Gain level Hi/Mid/Low adjustable
  • Directly compatible with Shure's SM58 capsule
  • Polar pattern: Cardioid
  • OLED display
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • UHF 731 - 790 MHz License-free and approved in large parts of Europe
  • Operating range up to 80m with line-of-sight

Package contents

  • 1 x microphone, 1 x user manual, 1 x declaration of conformity


Type:Hand-held transmitter
Power supply:3 V DC
Power connection:Battery/battery pack
Capsule type:Dynamic
Polar pattern:Cardioid
Battery:2 x Mignon (AA) (not included)
Frequency range:100 - 18000 Hz
Max. SPL:145 dB
Range:Range up to 80m with line-of-sight
Frequency band:UHF 823 - 832 MHz; UHF 731 - 790 MHz
Switching bandwidth:68 MHz
RF power output:10 mW (LO); 40 mW (HI)
Modulation:FM
Frequency selection:292 switchable frequencies
In 10 groups with up to 25 preset frequencies each and
In 8 groups with up to 7 preset frequencies each
Display type:OLED display
Switch:On/off/mute switch
Material:Aluminum
Color:Black
Dimensions:Length: 26,5 cm
Diameter: Ã 5,4 cm
Weight:290 g

Productinformatie

    Productspecificaties

    Artikelnummer(s)
    EAN
    4026397537017
