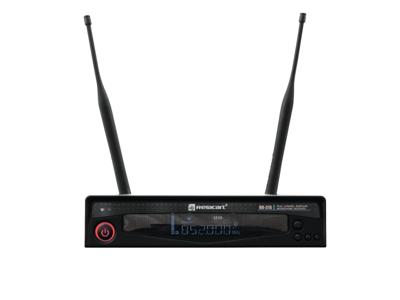

RELACART HR-31S 1-channel True Diversity Receiver

RELACART HR-31S 1-channel True Diversity Receiver

0
The HR-31S is a premium true diversity system in the UHF spectrum that can fully exploit its strengths, in particular in connection with the RWW software. The transmission takes place either in the professional switchable band 731-790 MHz or in the license-free range 823-832 MHz. The other features also convince: quick setup via infrared andan exce...

Snel naar

  • Prijzen

    PrijzenProductomschrijvingProductspecificaties

    Alle aanbiedingen van dit product

    Verkoper
    Bezorging
    Prijs
    ST-shop.nl logo
    ST-shop.nl
    1-3 dagen
    niet bekend
    €373,75
    Conrad NL logo
    Conrad NL
    10-15 werkdagen
    gratis
    €365,-

    Klanten-reviews van RELACART HR-31S 1-channel True Diversity Receiver

    Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

    Meer over RELACART HR-31S 1-channel True Diversity Receiver

    Productomschrijving

    The HR-31S is a premium true diversity system in the UHF spectrum that can fully exploit its strengths, in particular in connection with the RWW software. The transmission takes place either in the professional switchable band 731-790 MHz or in the license-free range 823-832 MHz. The other features also convince: quick setup via infrared andan exceptionally long service life of the transmitter from up to 15 hours on just one set of batteries.

    True diversity wireless receiver with PC control

    • Multifrequency wireless receiver with high-quality true diversity reception
    • Real-time monitoring and data management using RWW PC software
    • 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
    • 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
    • 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
    • Pilot frequency squelch technology delete wireless RF interference
    • Automatic frequency scan (AFS) finds interference-free channels
    • Easy and error-free synchronization between receiver and transmitter via infrared signal
    • Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
    • Up to 32 units can be linked with network cables
    • Lock function for prevents undesired changes to settings
    • 2 detachable BNC antennas allow for use with the R-14D antenna divider
    • Monochrome LCD display
    • UHF 823 - 832 MHz License-free and approved in large parts of Europe
    • UHF 731 - 790 MHz License-free and approved in large parts of Europe
    • Operating range up to 80m with line-of-sight
    • The device can be connected via RJ14 (F) mounting version to the PC in connection with RELACART RWW software and the dongle (optional)
    • Desktop console housing
    • (19") 48.3 cm rack installation possible 1 U
    • Up to 12 transmitters can be operated in parallel without interference
    • Charge status indicator

    Package contents

    • 1 x device, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 1 x user manual, 1 x declaration of conformity, 1 x bag, 3 x mounting bracket, 10 x screw


    Type:Receiver
    Power supply:100-240 V AC, 50/60 Hz
    12 V DC
    Power consumption:3,5 W
    Power connection:Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
    Number of channels:1
    Frequency range:45 - 18000 Hz
    S/N ratio:>108 dB
    THD:

    Productinformatie

      Productspecificaties

      Artikelnummer(s)
      EAN
      4026397537000
