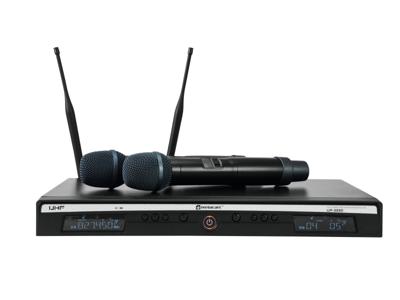

True diversity wireless microphone system with two channels, 823-832 MHz + 863-865 MHz
RELACART UR-222D 2-channel UHF Receiver 823-832 + 863-865 MHz
2-channel multifrequency wireless receiver with high-quality diversity reception
Package contents
RELACART UH-222D Microphone 823-832 + 863-865 MHz
Hand-held microphone with PLL multifrequency transmitter
Package contents
| Type: | Wireless set |
| Weight: | 2,89 kg |
| RELACART UR-222D 2-channel UHF Receiver 823-832 + 863-865 MHz | |
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| Power consumption: | 5 W |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >105 dB |
| Range: | Range up to 80m with line-of-sight |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Diversity: | Antenna diversity |
| Switching bandwidth: | 11 MHz |
| Frequency stability: | ± 0,0005 % |
| Parallel mode: | Max. 9 transmitter |
| Modulation: | FM |
| Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Display type: | Multicolor LCD display |
| Display: | Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency |
| Control elements: | Navigation keys, menu, groundlift selector |
| Connections: | Output: line via 2 x 3-pin XLR Output: line via 2 x 6.3 mm plug (unbal.) Antenna via 2 x BNC (F) 8 V |
| Material: | Metal |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U |
| Dimensions: | Width: 41 cm Depth: 26 cm Height: 4,6 cm |
| Weight: | 2,32 kg |
| RELACART UH-222D Microphone 823-832 + 863-865 MHz | |
| Type: | Hand-held transmitter |
| Power supply: | 3 V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Super cardoid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 120 - 16000 Hz |
| Sensitivity: | -53 dB |
| Max. SPL: | 145 dB |
| Range: | Range up to 80m |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Switching bandwidth: | 11 MHz |
| RF power output: | 10 mW |
| Modulation: | FM |
| Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Display type: | OLED display |
| Display: | Charge status indicator , frequency , channel |
| Control elements: | Gain-switch (high-mid-low), transmitter power switch (high-low) |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Dimensions: | Length: 26 cm Diameter: Ã 5,4 cm |
| Weight: | 280 g |
