Productomschrijving

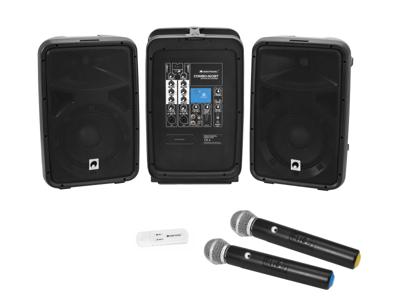

Portable 160 W PA system with Bluetooth including compatible wireless Mic Set
OMNITRONIC COMBO-160BT Active PA System
Portable 160 W PA system with Bluetooth
- Ultra-portable all-in-one PA system for mobile live and DJ applications
- Detachable 6-channel power mixer with built-in MP3 player
- Dual Class D amplifier (2 x 80 W RMS)
- 2 full-range speaker systems, each with 20 cm woofer and 25 mm tweeter, bass reflex system and flange for speaker stands
- 2 mono inputs mic/line with 2-band EQ and adjustable reverb
- Volume control per channel
- Adjustable monitor output
- Master level control with limiter indication
- UWM-2HH USB dongle with 2 wireless microphones available as accessory
- Control via Bluetooth
- Bluetooth: operating range up to 10m
- With accessory compartment
- For application areas such as: Mobile use; mobile djs / entertainer; sports centres/gyms
Package contents
- 1 x user manual, 1 x declaration of conformity, 2 x speaker, 1 x amplifier, 1 x power cord, 2 x jack cable
OMNITRONIC UWM-2HH USB Wireless Mic Set with two handheld microphones
Accessory kit for compatible Omnitronic products
- Operation with fixed UHF frequencies
- Automatic pairing
- Operating range up to 30m
- UHF 863 - 865 MHz License-free and approved in Europe
- For application areas such as: Mobile use; mobile djs / entertainer
Package contents
- 1 x receiver, 2 x microphone, 1 x user manual, 1 x declaration of conformity
| Weight: | 16,83 kg |
| OMNITRONIC COMBO-160BT Active PA System |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 200 W |
| Power: | Rated: 2x 80W RMS |
| Control: | Bluetooth |
| Range: | Bluetooth: range up to 10m |
| Carrier frequency: | 2,4 GHz |
| Circuitry: | Class D Biamp |
| Connections: | Input: microphone via USB A (F) mounting version
Input: mic/line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 2 x 6.3 mm jack socket (mono) mounting version
Input: line via 1 x stereo RCA
Input: line via 1 x 3.5 mm jack (stereo) mounting version
Output: speaker via 2 x 6.3 mm jack socket (stereo) mounting version
Output: line via 1 x stereo RCA |
| Channels: | , channel control via rotary dial, 2-band tone control EQ ±6dB at 70Hz/13kHz |
| Max. level: | Input: microphone -14 dBu |
| USB port: | 1 x type A |
| Dimensions: | Width: 67 cm
Depth: 31 cm
Height: 46 cm |
| Weight: | 16,50 kg |
| Speaker |
| Speaker: | 1 x woofer 8"
Horn 1" |
| Dimensions: | Width: 30 cm
Depth: 26 cm
Height: 46 cm |
| Weight: | 5,85 kg |
| OMNITRONIC UWM-2HH USB Wireless Mic Set with two handheld microphones |
| Type: | Wireless set |
| Range: | Range up to 30m |
| Frequency band: | UHF 863 - 865 MHz |
| Frequency stability: | ± 0,01 % |
| RF power output: | 10 mW |
| Frequency selection: | Fixed frequencies |
| Weight: | 330 g |
| Receiver |
| Power supply: | 5 V DC 500 mA |
| Power connection: | Mains input via USB, type A |
| Status LED: | Signal |
| Material: | Plastic |
| Color: | White |
| Dimensions: | Length: 10 cm
Width: 3,1 cm
Height: 1,3 cm |
| Weight: | 20 g |
| Microphone |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Battery: | 2 x Mignon (AA) (not included) |
| Carrier frequency: | 863,3 MHz; 865 MHz |
| Color code: | CH A= blue, CH B= orange, |
| Switch: | On/off switch |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Length: 25 cm
Diameter: Ã 5 cm |
| Weight: | 170 g |
