Shimano kettingbladboutset m8x8.5 binnenblad (4st)

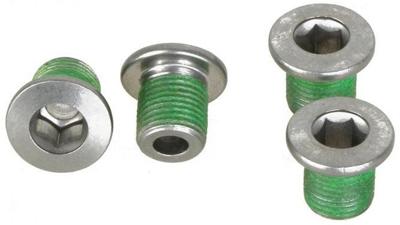

Product Description The inner chainring bolts for FC-M590-10 4-arm cranks by Shimano The Shimano chainring bolts for FC-M552 and Deore FC-M590-10 are compatible with numerous other 4-arm cranks, e.g. FC-M6000, FC-M4050 or FC-T6010. They have a size of M8 x 8.5 mm and must be fitted on the inside, i.e. on the small chainring (when used with 2 or 3 chainrings). Technical Information:Threads:M8 x 8.5Position:inner (w/ 2 or 3 chainrings)Mount:on small chainringCompatibility:FC-M552FC-M590-10FC-M610FC-M612FC-M615FC-M617FC-M6000FC-M5100-2FC-M5100-B2 (here also middle)FC-M4060FC-M4050FC-M4100-2FC-M4100-B2 (here also middle)FC-M3000FC-MT500-2/3FC-MT300FC-T3010FC-T4060FC-T6010FC-T521FC-T551FC-T611FC-R3030FC-R2030FC-RX600-10also fits FC-M660-10Manufacturer Number:Y-1LV98060 Contents:4 x Shimano chainring bolts Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com

Productspecificaties: Groep: Deore Geschikt voor: FC-M6000-3 Afmeting: M8x 8,5 mm Inhoud: 4 bouten en 4 moeren

Productspecificaties: Groep: Deore Geschikt voor: FC-M6000-3 Afmeting: M8x 8,5 mm Inhoud: 4 bouten en 4 moeren

Geschikt voor CycloCross (46-36T) Kleur donker antrachiet met 4x torx boutjes, moeren met kapjes voor Ultegra 6800 crankstel Tandblad boutjes torx met moerenen kapjes Kleur donker antrachiet Product Description Shimano Chainring Bolts for FC-6800 with 36 and 46 T Chainrings These Shimano chainring bolts are compatible with the Ultegra FC-6800 4-arm crank, but only with the 36-46 tooth gradation. They have an M8 x 10.1 mm thread and are fitted in the middle, between the small and large chainrings. Four cover caps, which are also the nuts, are supplied. Compatibility:FC-6800 (only 36-42 t)Models:2-speed: Threads:M8 x 10.1Position:mediumMount:between small and large chainringManufacturer Number:Y-1P498090 Note:The chainring bolts for the inner position for all other gradations are identical to FC-M970 chainring bolts.Contents:4 x chainring bolts4 x top caps Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com

Geschikt voor CycloCross (46-36T) Kleur donker antrachiet met 4x torx boutjes, moeren met kapjes voor Ultegra 6800 crankstel Tandblad boutjes torx met moerenen kapjes Kleur donker antrachiet Product Description Shimano Chainring Bolts for FC-6800 with 36 and 46 T Chainrings These Shimano chainring bolts are compatible with the Ultegra FC-6800 4-arm crank, but only with the 36-46 tooth gradation. They have an M8 x 10.1 mm thread and are fitted in the middle, between the small and large chainrings. Four cover caps, which are also the nuts, are supplied. Compatibility:FC-6800 (only 36-42 t)Models:2-speed: Threads:M8 x 10.1Position:mediumMount:between small and large chainringManufacturer Number:Y-1P498090 Note:The chainring bolts for the inner position for all other gradations are identical to FC-M970 chainring bolts.Contents:4 x chainring bolts4 x top caps Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
