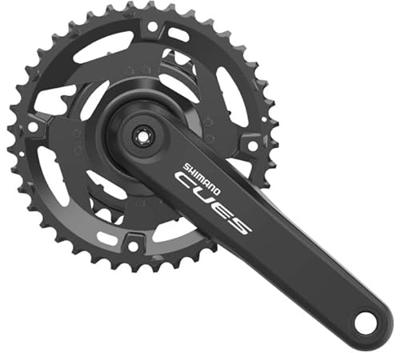

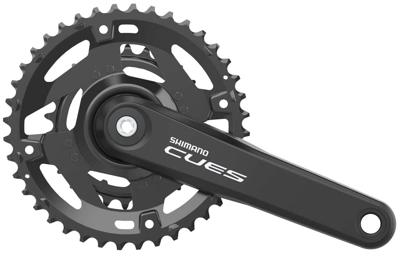

Product Description Shimano CUES FC-U4010-2 - 2-piece crank with two chainrings for city, touring and MTB The CUES crankset FC-U4010-2 was designed by Shimano for Linkglide drivetrains on city, touring and mountain bikes. It is suitable for 2x9-speed, 2x10-speed and, depending on the version, also for 2x11-speed derailleurs and produces a chainline of 48.8 mm. Therefore, frame over locknut dimensions of 135 mm and 142 mm are compatible. The Q-factor is 180 mm. The 2-piece design of the crank provides an optimal stiffness-to-weight ratio and improves power transfer. The gradations are chosen so that it is possible to pedal harmoniously and smoothly on different types of terrain. The model is made of aluminium and steel. The four-armed steel chainrings are permanently installed via riveted joints. Specifications:Application:City, Touring, All MountainCompatibility:2x9-speed, 2x10-speed, 2x11-speed*Chainring Mount:4-arm (riveted) * 30-46 T is not 11-speed compatible Technical Information:Series:CUES U4000Crank Arm Material:aluminiumChainring Material:steelAxle Material:steelGradation:22-36, 26-40, 30-46Crank Arm Length:170.0 mm, 175.0 mmChainline:48.8 mmQ-Factor:180 mmAxle Diameter:24 mmCompatible BSA Shell Width:68 mm / 73 mmRecommended Bottom Bracket:BB-MT501 (BSA) or BB-MT500-PA press fit (not included)Recommended Chain:Linkglide (CN-LG500), HG 11-speed (e.g. CN-HG601-11)Compatibility:Rear Over Locknut Dimension: quick release: 135 mmthru-axle: 142 mmBottom Bracket:BB-MT801, BB-MT501, BB-UR400, SM-BB94-41A, BB-MT800-PA, BB-MT500-PAShifter:SL-U8000-L, SL-U8000-IL, SL-U6000-L, SL-U4000-LFront Derailleur: 2x11-speed (22-36 T, 26-40 T): FD-U6000, FC-U6010 (only 26-40 T)2x10-speed (22-36 T, 26-40 T): FD-U6000, FD-U40002x10-speed (30-46 T): FC-U8010, FD-U60102x9-speed (22-36 T, 26-40 T): FD-U40002x9-speed (30-46 T): FD-U4010Chain:CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500Chain Case:30-46 T compatibleFeatures:2-piece crank with two chainringsfor city, touring and mountain bikes with Shimano Linkglide drivetrain (9-speed, 10-speed, 22-36 and 26-40 also 11-speed)reliable, smooth performance on various terrainwide ratio range for harmonious, comfortable pedallingoptimum stiffness with low weightefficient transfer of pedal powerpainted crank arms and chainringsTechnology:2-Piece Crankset With the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets. Manufacturer Numbers:170.0 mm 22-36:EFCU40102CX62170.0 mm 26-40:EFCU40102CX06X170.0 mm 30-46:EFCU40102CX60X175.0 mm 22-36:EFCU40102EX62175.0 mm 26-40:EFCU40102EX06X175.0 mm 30-46:EFCU40102EX60XContents:1 x (22-36, 26-40 or 30-46 teeth)1 x Shimano crank bolts Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
