Productomschrijving

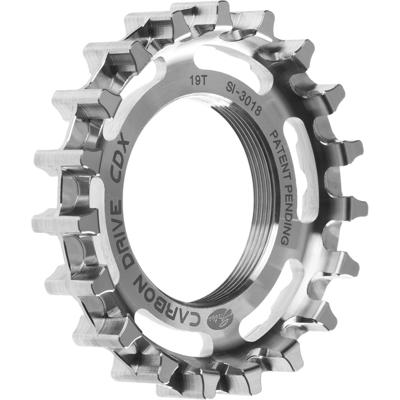

Product Description This rear CDX sprocket from Gates for track cycling and touring use has a BSA screw thread. This is compatible with corresponding fixed gear hubs as well as rear hub motors that have a built-in freehub. The sprocket is made of stainless steel. Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance. Specifications:Application:Track, City, TouringMount:Screw threadTeeth:22 TTechnical Information:Width of the teeth:12.5 mmTooth division:11 mmMounting web thickness:6.5 mmOffset:6.75 mm (assembly surface), 3.5 mm (centre line)Material:stainless steelCompatibility:fixed gear hubs with integrated clockwise BSA 1.37" x 24 tpi (34.79 mm) screw threadrear hub motors (rear drivetrains) with integrated freehub and clockwise BSA 1.37" x 24 tpi (34.79 mm) screw threadFeatures:CDX: high-end version for high loads and best performancesuitable for mud, sand, snow and ice as well as all roadsmiddle guide groove (CenterTrack)high mileagerobust stainless steelTechnology:Gates Carbon Drive System The main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, E-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past. Clean: No lubricant means no accumulation of grease and dirt. Smooth and silent operation: no metal-to-metal contact of the chains. Light: The whole system weighs less than a standard bicycle chain. No elongation: Belt does not need to be re-tensioned or replaced. Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants. Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt. Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against using one to modify a conventional framework. Models:19 tooth: Outer Diameter:64.8 mmManufacturer Number:CT1119FMN 21 tooth: Outer Diameter:71.8 mmManufacturer Number:CT1121FMNContents:1 x Gates CDX Thread-On / Fixie Rear Belt Drive SprocketOrder Together:POM Tool for disassembly of the sprocket Manufacturer: Universal Transmissions GmbH Walkmühlenstraße 195 99974 Mühlhausen Germany shop@carbondrive.net
