Productomschrijving

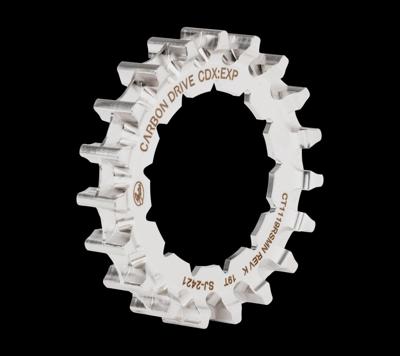

Gates CDX tandwiel achter 19 tands Rohloff Splined. Buitendiameter 64,85mm. Product Description This Gates rear belt drive sprocket from the CDX:EXP Expedition series for touring and off-road use has splined teeth for Rohloff Speedhub gear hubs in combination with the Splined Carrier L. It features an enlarged wear surface and is made of robust stainless steel. Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance. Specifications:Application:City & Touring, Cross CountryMount:Rohloff SplineTeeth:19 t, 20 t, 22 tTechnical Information:Width of the teeth:12 mmTooth division:11 mmMounting web thickness:2.0 mmOffset:1.3 mm (assembly surface), 2.3 mm (centre line)Material:stainless steelCompatibility:Rohloff Speedhub 500/14Rohloff Speedhub 500/14 XLthe Rohloff Splined Carrier L is absolutely necessary for assemblyUse of a snubber mandatory (prevents belt from skipping)Features:CDX:EXP level: high-end version for high loads and best performance plus 25% additional wear surfacesuitable for mud, sand, snow and ice as well as all roadsmiddle guide groove (CenterTrack)for low-maintenance journeys across extreme distances on almost any terrainTechnology:Gates Carbon Drive System The main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, E-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past. Clean: No lubricant means no accumulation of grease and dirt. Smooth and silent operation: no metal-to-metal contact of the chains. Light: The whole system weighs less than a standard bicycle chain. No elongation: Belt does not need to be re-tensioned or replaced. Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants. Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt. Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against using one to modify a conventional framework. Models:19 tooth: Outer Diameter:64.85 mmManufacturer Number:CT1119RSMN 20 tooth: Outer Diameter:68.27 mmManufacturer Number:CT1120RSMN 22 tooth: Outer Diameter:75.33 mmManufacturer Number:CT1122RSMNContents:1 x Order Together:Strap Wrench for dismantling the belt drive sprocket Manufacturer: Universal Transmissions GmbH Walkmühlenstraße 195 99974 Mühlhausen Germany shop@carbondrive.net Deze Gates CDX is ideaal voor dagelijks gebruik op e-bikes of trekkingfietsen en kan zelfs de hoogste belastingen aan. Bovendien biedt het beproefde tandprofiel (Mudports) optimale prestaties en duurzaamheid.Gates hanteert 4 soorten productlijnen. Deze productlijnen worden vaak door Gates gebruikt om aan te tonen voor welke soort fietsen het onderdeel is. Dit product hoort bij productlijn:CDX: krachtige woon-werkverkeerfietsen, trekking-fietsen, mountainbikes, bakfietsen en e-bikes, en extreme omstandighedenOntwerp: met Finline- of CenterTrack-design en centrale geleidingsflensMateriaal: slijtvast roestvrij staal van vliegtuigkwaliteitTandafstand (pitch): 11 mmKleur: zilverGates Artikelnummer: 740854 EAN-code: 4262428339599 Leveranciersnummer: 78980748-AM Winkelverpakking: Ja
