Productomschrijving

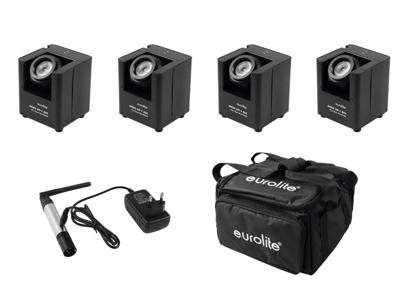

4x LED uplight with black soft bag and wireless DMX transmitter
EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX
LED uplight with 15 W 4in1 LED, tiltable head and QuickDMX transceiver
- Integrated QuickDMX transceiver for wireless DMX control
- Inclination angle of the LED head manually adjustable
- Interchangeable front lens for 9° or 15° beam angle
- Battery operation up to 18h depending on program used
- 1 powerful LED 15 W high-power 4in1 QCL RGBW (homogenous color mix)
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone; QuickDMX; sound to light via microphone; IR remote control
- Flicker-free
- With a beam angle of 9°
- For application areas such as: Mobile djs / entertainer; wedding/gala/events; mobile use; small rental
- Dimmer speed (step response) adjustable; colors preset; color blend stepless; color change adjustable; Dimmer electronic
- Strobe effect
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
- Cordless, flexible and versatile
- Integrated automatic charging of the battery and status indicator
- Silent operation
- Application possibility: Standing
Package contents
- 1 x spotlight, 1 x external mains adapter, 1 x remote control, 2 x battery, 1 x lens, 1 x omega bracket, 1 x user manual, 1 x power cord
EUROLITE SB-4 Soft Bag L
Black soft bag for up to 4 devices, 320 x 320 x 200 mm
- Practical transport bag offers enough space for several lighting effects and accessories
- With dividers
- With 2 Outside pockets
- With 4 Device compartments
- High-quality workmanship with nylon , black, water repellent
- Interior with foam padding
cover with foam padding - 2 carrying straps
Package contents
EUROLITE QuickDMX Wireless Transmitter
Compact wireless DMX transmitter 2.4 GHz
- User-friendly 3-pin XLR adapter (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can transmit up to 512 DMX channels
- Control via QuickDMX; DMX; plug and play
- Operating range up to 400m
- Up to 6 transmitters can be operated in parallel without interference
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x USB cable
| Weight: | 9,51 kg |
| EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX |
| Power consumption: | 15 W |
| IP classification: | IP20 |
| Protection class: | Protection class III |
| Power connection: | Battery/battery pack
Mains input via coaxial power connector (M) mounting version power supply cord with Euro plug (provided) |
| Battery pack type: | 1 x lithium ion 7,4 V, 8800 mAh, 65,12 Wh |
| Battery pack: | Battery operation up to 18h depending on program used
Recharging time 6h |
| Lamp type: | LED lamp |
| LED type: | 1 x 15 W high-power 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: | 3; 4; 6; 8; 10 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; stand-alone; QuickDMX; sound to light via microphone; IR remote control |
| Preprogrammed in: | Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3 |
| Projection: | Flicker-free |
| Carrier frequency: | 2,4 GHz |
| Beam angle: | 9° |
| Beam angle (1/2 peak): | 9°
15° |
| Beam angle (1/10 peak): | 18°
30° |
| Housing color: | Black |
| Dimensions: | Width: 12 cm
Depth: 12 cm
Height: 14,2 cm |
| Weight: | 2,21 kg |
| Noise classification: | Class 0 (no noise at all) |
| External mains adapter |
| Power supply: | 100-240 V AC, 50/60 Hz
8,4 V 3 A |
| Remote control |
| Battery: | 1 x button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| EUROLITE SB-4 Soft Bag L |
| Maximum load: | 25 kg |
| Carrying strap: | 2 pc/pcs |
| Material: | Nylon |
| Color: | Black, water repellent |
| Compartment dimensions: | 15 cm x 15 cm x 20 cm |
| Inside dimensions: | 31 cm x 34 cm x 20 cm |
| Dimensions: | Width: 32 cm
Depth: 41 cm
Height: 20 cm |
| Weight: | 520 g |
| EUROLITE QuickDMX Wireless Transmitter |
| Power supply: | 100-240 V AC, 50/60 Hz
5 V DC 1 A |
| IP classification: | IP20 |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) |
| Control: | QuickDMX; DMX; plug and play |
| Range: | Range up to 400m |
| Carrier frequency: | 2,4 GHz |
| Parallel mode: | Max. 6 transmitter |
| RF power output: | 19 dBm |
| Modulation: | GFSK |
| Color: | Silver |
| Dimensions: | Length: 21,2 cm
Diameter: Ã 1,8 cm |
| Weight: | 150 g |
