Productomschrijving

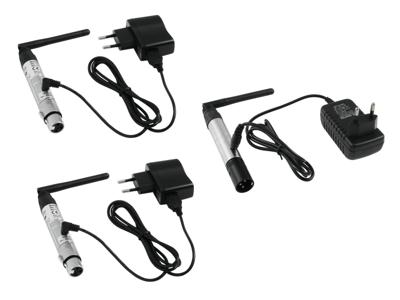

Wireless DMX transmitter with 2 compact wireless DMX receivers
EUROLITE QuickDMX Wireless Transmitter
Compact wireless DMX transmitter 2.4 GHz
- User-friendly 3-pin XLR adapter (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can transmit up to 512 DMX channels
- Control via QuickDMX; DMX; plug and play
- Operating range up to 400m
- Up to 6 transmitters can be operated in parallel without interference
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x USB cable
EUROLITE QuickDMX Wireless Receiver
Compact wireless DMX receiver 2.4 GHz
- User-friendly 3-pin XLR adapter (female) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can receive and process up to 512 DMX channels
- Control via QuickDMX; plug and play
- Operating range up to 400m
- Up to 6 transmitters can be operated in parallel without interference
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x USB cable
| Weight: | 470 g |
| EUROLITE QuickDMX Wireless Transmitter |
| Power supply: | 100-240 V AC, 50/60 Hz
5 V DC 1 A |
| IP classification: | IP20 |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) |
| Control: | QuickDMX; DMX; plug and play |
| Range: | Range up to 400m |
| Carrier frequency: | 2,4 GHz |
| Parallel mode: | Max. 6 transmitter |
| RF power output: | 19 dBm |
| Modulation: | GFSK |
| Color: | Silver |
| Dimensions: | Length: 21,2 cm
Diameter: Ã 1,8 cm |
| Weight: | 150 g |
| EUROLITE QuickDMX Wireless Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
5 V DC 1 A |
| IP classification: | IP20 |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Input 512 |
| DMX output: | 3-pin XLR (F) |
| Control: | QuickDMX; plug and play |
| Range: | Range up to 400m |
| Carrier frequency: | 2,4 GHz |
| Parallel mode: | Max. 6 transmitter |
| RF power output: | 19 dBm |
| Modulation: | GFSK |
| Color: | Silver |
| Dimensions: | Length: 21,2 cm
Diameter: Ã 1,8 cm |
| Weight: | 160 g |
