Name: Wheels Manufacturing Wheels mfg - wave washer opvulringen 24mm id 10 stuks
Brand: Wheels Manufacturing
SKU: e2c5d64e8b14107ee30396f16f9b8a37
Price: 23.99 EUR
Availability: InStock

Nieuw

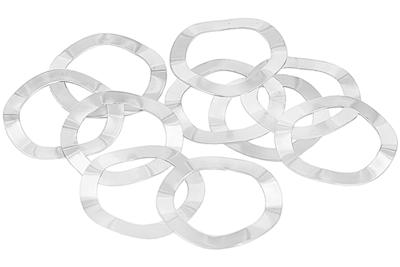

Wheels Manufacturing Wheels mfg - wave washer opvulringen 24mm id 10 stuks

Opvulringen voor gebruik op 22/24mm (GXP) crankspindels. Helpt bij het elimineren van zijspeling in cranks of voorbelasting van hoekcontactlagers. Raadpleeg de montage-instructies van de fabrikant van je crankstel voor de juiste plaatsing. Binnendiameter: 24,5 mmBuitendiameter: 33,7 mmOngecomprimeerde dikte: 2.1mmGecomprimeerde dikte: 0,5 mmVeerstaal10 per zak ArtikelnummerWAVEWSH-24MM-10EAN836572009734MerkenWheels ManufacturingType24MM

23,99

Nieuw

Wheels Manufacturing wheels mfg wave washer opvulringen 30mm id 10 stuks

Golfring voor gebruik op 30mm Trapassen. Helpt bij het elimineren van zijspeling in cranks of voorbelasting van hoekcontactlagers. Raadpleeg de montage-instructies van de fabrikant van je crankstel voor de juiste plaatsing. Binnendiameter: 30.3mmBuitendiameter: 39,4 mmNiet-gecomprimeerde dikte: 2,1 mmGecomprimeerde dikte: 0,5 mmVeerstaal10 per zak ArtikelnummerWAVEWSH-30MM-10EAN836572009741MerkenWheels ManufacturingType30mm

23,99

Nieuw

Wheels Manufacturing Wheels mfg - trapas 386evo sram 22/24mm acb zwart

Threaded BB for 386EVO frames and 22/24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance. No more creaking. Smooth operation. Fast bearing replacement. Notes: Wheels Mfg 386EVO BB for use with 24/22mm spindle cranks will not work with Quarq SRAM/GXP cranksets (Elsa, Riken, SRAM Red 22, SRAM S975, SRAM S2275, CinQo Saturn, Saturn2). If your Quarq spider has an ID less than 49.5mm, your crank may rub on the BB cup. Compatible with Quarq DZero powermeter spiders with GXP spindles except Eagle MTB. Bearings: Enduro Angular Contact, Color: Black, Bottom Bracket/Frame Interface: BB386EVO, BB392EVO, Bottom Bracket Shell Width (mm): 86mm - 92mm, Bottom Bracket Shell I.D.: 46mm, Crank Spindle Diameter: 22/24mm, Weight: 145g, Packaged for retail display. Artikelnummer386EVOBB-SRAMACEAN811079024213MerkenWheels ManufacturingLagerkwaliteitAngular Contact Bearing (ACB)

151,99

Nieuw

Wheels Manufacturing wheels mfg trapas pf30 shimano 24mm acb zwart

Install 24mm (Shimano, FSA, Etc.) cranks into PF30 frames without adapters! Threaded design = easy install and removal. Fits 68-73mm width shells. Weight: 153g. Made in the USA. Machined, anodized black aluminum cups. Enduro Angular Contact bearings. Dual silicone seal keeps the contamination out for longer life. Will accept current 24mm spindle cranksets (Shimano, FSA, etc.). No adapters needed. Packaged for retail display. ArtikelnummerPF30-OUT-3EAN811079020277MerkenWheels ManufacturingLagerkwaliteitAngular Contact Bearing (ACB)TypeACB

151,78

Nieuw

Wheels Manufacturing Wheels mfg - trapas pf30a outboard sram 22/24mm abec 3

The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement. Specifically designed for installing 22mm / 24mm spindle diameter cranks (SRAM / Truvativ GXP) in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters. • Bearings: Enduro ABEC-3 • Color: Black • Bottom Bracket/Frame Interface: Cannondale PF30A • Bottom Bracket Shell Width: 73mm • Bottom Bracket Shell I.D.: 46mm • Over Bearing Width: 91mm in 73mm wide shell* • Crank Spindle Diameter: 22/24mm • Tool Pattern: 44mm x 16 notch • Weight: 168g • Packaged for retail display * Over Bearing Width Dimensions include supplied silicone dust shields. ArtikelnummerPF30A-OUT-SRAMEAN811079024763MerkenWheels ManufacturingLagerkwaliteitABEC-3

151,99

Nieuw

Wheels Manufacturing Wheels mfg - trapas adapter 386evo shimano

For adapting Shimano cranks to 386EVO-standard frames. Simply tap the adapters into the 6806 bearing in the BB shell or cups, then install the cranks using the included spacers to adjust chainline, or to take up any side-to-side movement in the crank. Includes 2 - 24mm ID adapters. Includes 8 - .7mm spacers. Machined engineering-grade Delrin. 48g/pr. Artikelnummer386EVO-SHIMEAN836572007945MerkenWheels ManufacturingMateriaalDelrin

75,58

Nieuw

Wheels Manufacturing Wheels mfg - trapas t47 shimano 24mm acb zwart

T47 threaded BB cups for T47 frames and 24mm diameter spindle cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells. Bearings: Enduro Angular Contact, Color: Black, Bottom Bracket/Frame Interface: T47, Bottom Bracket Shell Width (mm): 73mm - 132mm, Bottom Bracket Shell I.D.: 47x1.0mm Threaded, Crank Spindle Diameter: 24mm, Weight: 123g, Packaged for retail display. ArtikelnummerT47-BB-SHIM-ACEAN811079024244MerkenWheels ManufacturingLagerkwaliteitAngular Contact Bearing (ACB)TypeACB

152,88

Nieuw

Wheels Manufacturing wheels mfg trapas race sram abec 3 grijs

Redesigned with a new seal system and complete Enduro bearings. External English threaded BB for 68mm shells. Compatible with 24/22mm (SRAM, Truvativ) cranks. Weight: 98g. Road (68mm Shell width). Gray anodized, machined aluminum cups. Enduro 2437 (24mm ID) and 2237 (22mm ID) ABEC 3 sealed bearings. Dual silicone seal keeps the contamination out for longer life. Will accept current 24mm spindle (SRAM, Truvativ) cranksets. Packaged for retail display. ArtikelnummerBB-ROAD-16EAN811079020185MerkenWheels ManufacturingLagerkwaliteitABEC-3FietstypeRacefietsTypeABEC-3

105,99

Nieuw

Wheels Manufacturing wheels mfg lager trekker id 24mm 24x37

Individual extractor for removing 2437 sealed bearing. Bearing ID: 24mm / OD: 37mm / Width: 7mm. Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing. Tap the extractor out with a punch. Artikelnummer24X37-EXTEAN836572006863MerkenWheels ManufacturingType gereedschapLager

55,41

Nieuw

Wheels Manufacturing wheels mfg trapas t47 outboard shimano 24mm acb zwart

T47 threaded BB cups for T47 frames and 24mm diameter spindle cranks. Cups have outboard bearings, and are typically used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells. Bearings: Enduro Angular Contact, Color: Black, Bottom Bracket/Frame Interface: T47, Bottom Bracket Shell Width (mm): 68mm - 100mm, Bottom Bracket Shell I.D.: 47x1.0mm Threaded, Crank Spindle Diameter: 24mm, Weight: 123g, Packaged for retail display. ArtikelnummerT47-OUT-SHIM-ACEAN811079024268MerkenWheels ManufacturingLagerkwaliteitAngular Contact Bearing (ACB)TypeACB

152,88
