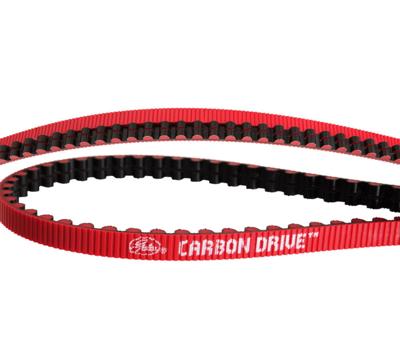

Product Description The Gates CDX belt is perfect for long-distance and off-road riding. It is 12 mm wide and consists of strong carbon fibre strands, a weather-resistant polyurethane body and a nylon running side. The back of the belt is ribbed for better dirt repellency. Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance. Specifications:Application:City & Touring, All Mountain, Cross CountryWidth:12 mmTechnical Information:Length:1188 mm, 1221 mm, 1243 mm, 1265 mm, 1298 mm, 1320 mm, 1342 mm, 1375 mm, 1408 mm, 1430 mm, 1452 mm, 1507 mm, 1573 mm, 1661 mm, 1738 mm, 1826 mm, 1848 mm, 1914 mmTooth division:11 mmMaterial:Polyurethane, Carbon, NylonCompatibility:CDX Belt Drive SprocketsCDX:EXP Belt Drive SprocketsFeatures:CDX level: high-end version for high loads and best performancesuitable for mud, sand, snow and ice as well as all roadsmiddle guide groove (CenterTrack)high mileageweather-resistant and wear-resistant polyurethanecarbon fibre tension memberswheel-optimised tooth profileribbed strap backnylon running sideTechnology:Gates Carbon Drive System The main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, e-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past. Clean: No lubricant means no accumulation of grease and dirt. Smooth and silent operation: no metal-to-metal contact of the chains. Light: The whole system weighs less than a standard bicycle chain. No elongation: Belt does not need to be re-tensioned or replaced. Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants. Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt. Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against modifying a conventional frame. Belt tension For optimal function of the Gates Carbon Drive System, correct belt tension is essential. Common tension adjustment systems include inclined or vertical dropouts, horizontally sliding dropouts (not recommended by Gates) and eccentric bottom brackets. There are several common methods to measure the tension of your Carbon Drive system, most notably the Eco Tension Tester, the Spring Tension Tester and the Gates Carbon Drive Smartphone App. Gates Carbon Drive tension recommendations are as follows: Off-road and urban - soft and even pedalling style: 40-60 Hz (35-45 lbs)Off-road and urban - strong and hard pedalling style: 60-75 Hz (45-53 lbs)Internally geared hubs: 35-50 Hz (28-40 lbs)Tandem: 60-65 Hz (45-48 lbs)Shimano STEPS: 35-45 Hz (28-35 lbs) To calculate the correct belt length, the Gates Carbon Drive Belt Calculator is available on the Gates Carbon Drive homepage. Models:1188 mm: Teeth:108Manufacturer Number:11M-108T-12CT 1221 mm: Teeth:111Manufacturer Number:11M-111T-12CT 1243 mm: Teeth:113Manufacturer Number:11M-113T-12CT 1265 mm: Teeth:115Manufacturer Number:11M-115T-12CT 1298 mm: Teeth:118Manufacturer Number:11M-118T-12CT 1320 mm: Teeth:120Manufacturer Number:11M-120T-12CT 1342 mm: Teeth:122Manufacturer Number:11M-122T-12CT 1375 mm: Teeth:125Manufacturer Number:11M-125T-12CT 1408 mm: Teeth:128Manufacturer Number:11M-128T-12CT 1430 mm: Teeth:130Manufacturer Number:11M-130T-12CT 1452 mm: Teeth:132Manufacturer Number:11M-132T-12CT 1507 mm: Teeth:137Manufacturer Number:11M-137T-12CT 1573 mm: Teeth:143Manufacturer Number:11M-143T-12CT 1661 mm: Teeth:151Manufacturer Number:11M-151T-12CT 1738 mm: Teeth:158Manufacturer Number:11M-158T-12CT 1826 mm: Teeth:166Manufacturer Number:11M-166T-12CT 1848 mm: Teeth:168Manufacturer Number:11M-168T-12CT 1914 mm: Teeth:174Manufacturer Number:11M-174T-12CTContents:1 x Gates CDX belt Manufacturer: Universal Transmissions GmbH Walkmühlenstraße 195 99974 Mühlhausen Germany shop@carbondrive.net
