Productomschrijving

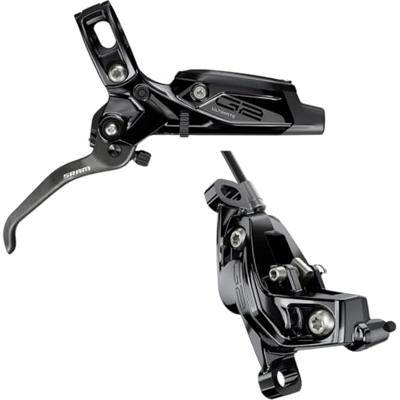

Product Description The SRAM G2 Ultimate Front+Rear Carbon Disc Brake offers strong braking power at a low weight SRAM's G2 Ultimate disc brake is extra lightweight with carbon levers and titanium bolts, and made for all-mountain and enduro trails with its four pistons. High-quality cartridge bearings at the lever pivot provide a good braking feel. Optimise your braking experience with a variety of adjustment options: after easily adjusting the grip's width to your hand size via tool-free Reach Adjust, you can precision-tune the lever stroke from which the brakes should grip via Contact Point Adjustment. SwingLink™ technology ensures precise brake control and high dosage in every situation. Bleeding Edge Technology makes bleeding particularly easy work. Specifications:Series:G2Application:All Mountain, EnduroType:hydraulic, 4 pistonsActuation:DOT 5.1Hose Length (Front/Rear):950 mm / 2000 mmTechnical Information - Caliper:Caliper Mount:post mountPistons:4Pads:organicDesign:two-partCalliper Material:aluminiumHose Connection:banjoTechnical Information - Lever:Adjustment Options:Grip width adjustment (tool-free), pressure point adjustmentMount:Matchmaker XDesign:Flip-Flop (without specific side)Brake Lever Material:CarbonBrake Lever Housing Material:aluminiumHose Connection:straightFeatures:extremely lightweight thanks to carbon levers and titanium hardwarecaliper features a high degree of stiffnessforged aluminium caliper and brake lever housingcartridge bearings at the lever pivot point for precision braking feel and low fatigueoptimal ratio of braking force and weighttool-free grip adjustmentContact Point Adjustmenteasy bleeding thanks to Bleeding Edgeperfect dosage with SwingLink technologyrecommended brake rotor Centerline 1-pieceTechnology:DOT 5.1: Heat is the enemy of every braking system. Through better heat management, your journey will also be much safer. It was found that DOT 5.1 takes three times longer to reach boiling point than DOT 4. This ensures smooth and undiminishing braking power under even more extreme conditions. Reach Adjust: The fit and ergonomics of the brake lever is a very personal matter. Riders have individual position preferences as well as unique hand sizes and finger lengths. With the reach adjustment, the lever can be easily adjusted - for maximum control with just one finger. SwingLink™: If you pull the SRAM brake lever, you will notice the difference immediately. A shorter idle travel and optimized brake pad actuation. Due to the new cam design, a shorter lever travel is required to push the brake pads towards the brake rotor. It's nice, but for perfect braking performance, it takes more than just power. Because you need control. Many braking systems offer a shorter stroke - but at the expense of modulation. SwingLink solves this problem with its special cam shape. When the brake pads touch the brake rotor, the force is modulated, thus avoiding the " on-off" brake feeling. This creates the perfect balance between power and precision. Contact Point Adjustment: Some people like the immediate power transmission of a short lever travel. Others, however, prefer the feeling of a longer lever travel. With the contact point adjustment you can determine the position where your fingers should be when the brakes are actuated. This way, you can quickly and easily adjust the feel of your brakes without having to move the pads. In addition, both brake levers can be adjusted so that they feel exactly the same. Bleeding Edge™: Bleeding Edge technology allows for quick and easy brake bleeding. Thanks to the special fluid channel and a specially designed bleed opening, the fluid can be pumped more easily through the brake caliper. A special adapter can be fitted to the bleed port and seals the system to prevent air ingress and fluid loss. Manufacturer Numbers:polar grey anodized / front wheel:00.5018.160.000polar grey anodized / rear wheel:00.5018.160.001gloss black / front wheel:00.5018.160.002gloss black / front wheel:00.5018.160.003gloss black-rainbow / front wheel:00.5018.160.004gloss black-rainbow / rear wheel:00.5018.160.005Contents:1 x SRAM G2 Ultimate Disc Brake (front or rear wheel)1 x SRAM brake hose, 950 mm (front) or 2000 mm (rear wheel)1 x pairs SRAM organic brake pads1 x SRAM Matchmaker X clamps1 x SRAM pad spacers1 x SRAM bleed block2 x SRAM bolts2 x SRAM washers1 x SRAM Torx keys1 x SRAM insert pins1 x SRAM olives1 x SRAM hose clip Manufacturer: SRAM LLC 1000 W. Fulton Market 4th Floor Chicago IL 60607 USA info@sram.com Distributor: SRAM Europe Sales and Services B.V. Paasbosweg 16 3862 ZS Nijkerk Netherlands info@sram.com
