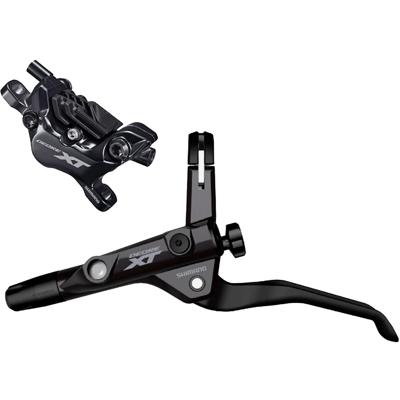

Product Description The Shimano XT BR-M8120 Disc Brake with BL-T8100 3-finger Brake Lever This version of the XT BR-M8120 disc brake from Shimano comes with the BL-T8100 3-finger brake lever, which impresses with very good operability and braking dosage. It is compatible with I-Spec II shifters, which can be installed on the same mount to save space. The handle width can be adjusted without tools. The BR-M8120 is a four-piston caliper with organic cooling-fin brake pads specially designed for enduro and trail riding. It features excellent brake control and a simple connection system. That way, you can give your full attention to the challenges of the terrain. Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance. Specifications:Series:Deore XT M8100Application:Enduro, All MountainType:hydraulic, 4 pistonsActuation:mineral oilHose:SM-BH90-SBMHose Length (Front/Rear):1000 mm / 1700 mmTechnical Information - Caliper:Caliper Mount:post mountPads:resin with cooling finsDesign:2-pieceCalliper Material:aluminiumPiston Material:CeramicHose Connection:banjoTechnical Information - Lever:Lever Length:3-fingerAdjustment Options:reach adjust (no tools required)Mount:clamp (split), I-Spec IIDesign:right (side-specific), left (side-specific)Brake Lever Material:aluminiumBrake Lever Housing Material:aluminiumHose Connection:straightCompatibility:Mounting Position: front brake caliper: brake lever leftrear brake caliper: brake lever rightBrake Rotor:140 mm, 160 mm, 180 mm, 203 mm, 220 mm (recommended: RT-MT800)Pads:organic and sintered; with narrow pad shape; standard and Ice Tech brake padsE-Bike:EP8 EP801, EP8 EP800 for MTB / TouringFeatures:Brake Caliper: excellent brake control helps you to focus on the trailextremely powerful braking for more self-confidence and downhill controlless brake rotor noise and 10% more braking power than M8000easy and quick installation4 ceramic pistonsapproved for use with transport and cargo bikespaintedsteel bolts (5 mm) Brake Lever: longer 3-finger leverI-Spec II compatiblegreater braking power and intuitive modulation, adapted to touring E-bikesimproved ergonomics and controlfunnel venting with M5 funnelanodised lever, painted bodystainless steel clamp boltsTechnology:One-Way Bleeding One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily. I-Spec II I-Spec II describes a variant of the connection between the brake lever and the shift lever on MTB or, more precisely, flatbar gears from Shimano. This type of mount makes for a tidy cockpit as it reduces the number of clamps needed. On some models it is also possible to adjust the shift lever both horizontally and vertically in relation to the brake lever. Then there is 12 mm of adjustment travel in the longitudinal direction and/or up to 15° of rotation - for optimum ergonomic adaptation to your riding style, seat position and anatomy. J-Kit J-Kit is a simple line connection system for hydraulic brakes from Shimano, so that you can install your brakes quickly and easily. The brake hose does not come connected to the brake to facilitate routing of the hose in the frame. The brake hose is already filled with oil in the J-Kit and sealed with a thin membrane. There is a small pin in the J-Kit brake lever that pierces this diaphragm during assembly to allow oil to flow. Manufacturer Numbers:Front:I-M81201JLFPSA100Rear:I-M81201JRRXSA170Contents:1 x Shimano XT BR-M8120 + BL-T8100 disc brake, front or rear1 x Shimano SM-BH90-SBM brake hose, 1000 mm (front) or 1700 mm (rear)1 x pair Shimano brake pads, resin1 x insert2 x calliper bolts1 x olive (installed)ready for installation, filled, bleeding is recommended after installationOrder Together:TL-BH61 tool for insert installationDisc Brake Adapter Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
