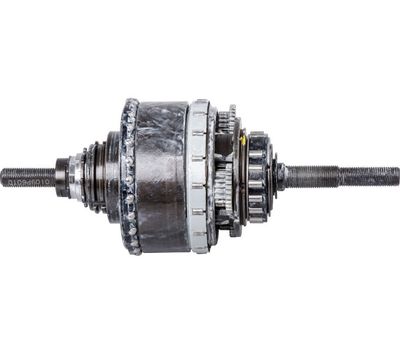

Shimano nexus 8 binnenwerk sg-c6001-8d disc y1ek98010

Aslengte: 187 mm Model: SG-C6001-8D (Nexus 8 met Center Lock remaansluiting) Het binnenwerk bestaat uit de volgende onderdelen: Y34R79000 Stop ring (diameter 12 mm / 1.0 mm) Y34R79010 Stop ring (diameter 12 mm / 1.3 mm) Y34R79020 Stop ring (diameter 12 mm / 1.6 mm) Y3EH98030 Ring gear unit Y3EH98040 Carrier unit Y36V22000 Ring gear 1 Y34R80000 Ring gear 1 stop spring Y38X98050 Ball retainer O (3/16" x 26) Y3EK98020 Hub axle unit (axle length 187 mm) Y34R98050 Clutch unit Y34R21000 Return spring A Y37J98020 Driver unit Y34R98070 Ball retainer P (3/16" x 13) Y37J98080 Right hand cone with seal Y34R12000 Driver plate Y34R98090 Lock washer Y34R09000 Stop washer Y35Z11000 Right hand serated lock nut (5.4 mm)EAN: 4524667388852

Compleet binnenwerk voor Shimano Nexus 8 remnaaf SG-C6001-8C / SG-C6000-8C. Aslengte: 184 mm Bestaande uit de volgende onderdelen: 10 Y37G98020 Brake Shoe Unit (3 pcs.) A 11 Y37E08000 O-Ring A 12 Y37G19000 E-Ring A 13 Y3EJ98040 Ring Gear Unit B 14 Y3EJ98050 Carrier Unit B 15 Y35P11010 Ring Gear 1 A 16 Y34R80000 Ring Gear 1 Stop Ring A 17 Y38X98050 Ball Retainer O (3/16" x 26) A 18 Y3EJ98060 Hub Axle Unit (Axle Length 184 mm) B 19 Y35P98060 Clutch Unit A 20 Y34R21000 Return Spring A A 21 Y37G98060 Driver Unit A 22 Y34R98070 Ball Retainer P (3/16" x 13) A 23 Y37J98080 Right Hand Cone w/Seal A 24 Y34R12000 Driver Plate A 25 Y34R98090 Lock Washer A 26 Y34R09000 Stop Washer A 27 Y33Z07020 Right Hand Lock Nut (3.4 mm)

Compleet binnenwerk voor Shimano Nexus 8 remnaaf SG-C6001-8C / SG-C6000-8C. Aslengte: 184 mm Bestaande uit de volgende onderdelen: 10 Y37G98020 Brake Shoe Unit (3 pcs.) A 11 Y37E08000 O-Ring A 12 Y37G19000 E-Ring A 13 Y3EJ98040 Ring Gear Unit B 14 Y3EJ98050 Carrier Unit B 15 Y35P11010 Ring Gear 1 A 16 Y34R80000 Ring Gear 1 Stop Ring A 17 Y38X98050 Ball Retainer O (3/16" x 26) A 18 Y3EJ98060 Hub Axle Unit (Axle Length 184 mm) B 19 Y35P98060 Clutch Unit A 20 Y34R21000 Return Spring A A 21 Y37G98060 Driver Unit A 22 Y34R98070 Ball Retainer P (3/16" x 13) A 23 Y37J98080 Right Hand Cone w/Seal A 24 Y34R12000 Driver Plate A 25 Y34R98090 Lock Washer A 26 Y34R09000 Stop Washer A 27 Y33Z07020 Right Hand Lock Nut (3.4 mm)

Binnenwerk SG-C6011-8R Aslengte: 184 mm Model: SG-C6011-8R (Nexus 8 met rollerbrake remaansluiting) Het binnenwerk bestaat uit de volgende onderdelen: Y34R79010 Stop ring (diameter 12 mm / 1.3 mm) Y34R79020 Stop ring (diameter 12 mm / 1.6 mm) Y3EG98020 Ring gear unit Y3EG98030 Carrier unit Y36W07000 Ring gear 1 Y34R80000 Ring gear 1 stop ring Y38X98050 Ball retainer O (3/16" x 26) Y3EH98050 Hub axle unit (axle length 184 mm) Y34R98050 Clutch unit Y34R21000 Return spring A Y37L98020 Driver unit Y34R98070 Ball retainer P (3/16" x 13) Y37J98080 Right hand cone with seal Y34R12000 Driver plate Y34R98090 Lock washer Y34R09000 Stop washer Y33Z07020 Right hand lock nut (3.4 mm)
