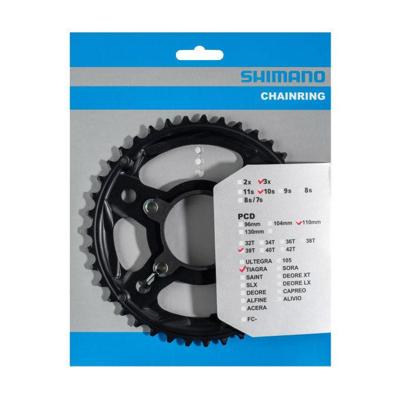

Shimano kettingblad tiagra 10v 39t y1rd98050 fc-4703

Shimano kettingblad 50t Tiagra 4700

Shimano kettingblad 52t Tiagra 4700

Shimano kettingblad 52t Tiagra 4700

Shimano kettingblad 34t Tiagra 4700 Product Description The Shimano Tiagra 10-speed Chainring for the FC-4700 crank This Shimano 10-speed chainring is a replacement part for the Tiagra FC-4700 crank and can be used for the 2-speed combinations 34-50 and 36-52 (bolt circle diameter 110 mm). The small chainrings are made of aluminium, the large ones of an aluminium-plastic composite. Specifications:Application:Road, CityMount:110 mm pitch circle, 4-arm asymmetricalTeeth:34 t, 36 t, 50 t, 52 tGearing:2x10-speedTechnical Information:Combinations:34-50 t, 36-52 tMaterial:aluminium (34 + 36 t), aluminium/composite (GFRP 50 t + 52 t)Compatibility:Tiagra FC-4700Features:anodisedModels:34 tooth: Type:MKManufacturer Number:Y-1RC34000 36 tooth: Type:MLManufacturer Number:Y-1RC36000 50 tooth: Type:MKManufacturer Number:Y-1RC98050 52 tooth: Type:MLManufacturer Number:Y-1RC98060Note to Type Designation:The type designation (one or two characters) helps identify the compatibility of various chainring…
