Productomschrijving

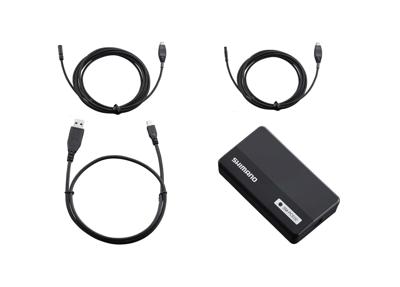

Shimano Diagnostic Tool E-Tube SM-PCE02 PC met USB Kabel Product Description Shimano SM-PCE02 PC Interface - Maintenance and setting hardware for Di2 and STEPS The Shimano PC interface SM-PCE02 is a connection and diagnostic device for professional and detailed maintenance of Di2 shifters as well as STEPS E-bike systems. It works with E-Tube Project Professional software for Microsoft Windows - the E-Tube Cyclist app is not supported. The unit is connected directly to a PC using the included micro USB to USB cable. On the other side, you connect it to any free e-tube connection on your bike via one of the two system cables, which are also included. It is also possible to connect individual components to SM-PCE02 without them being mounted on the bike. One of the system cables supplied is compatible with connectors of the (older) type EW-SD50, the other with connectors of the (newer) type EW-SD300. In contrast to the app, the Professional software with cable-supported connection offers you a large maintenance area. Here you can check the status of the drive unit and battery or the usage ratio for each gear setting for the front derailleur. You can also make direct adjustments to the gearing. You can also view the error log of the e-bike and select which Di2 or STEPS units you want to run error diagnostics. The result and much more information are part of the service report, which you can view as a PDF. Just as with the app, you can of course also use the SM-PCE02 hardware to update firmware for Di2 or STEPS parts, pair devices or adjust settings. In the case of electronic shifters and derailleurs, these are, for example, the button assignment on the STI, the shift mode or the multi-shift mode. For e-bikes, the riding characteristics, support patterns and support profiles can be configured or the display can be adjusted. Information regarding the return of batteries and electrical equipment:Information on the return and disposal of batteries and electrical equipment can be found here. Specifications:PC Connection:Micro USB to USBSystem Connection:EW-SD50, EW-SD300LED:1 x greenCompatibility:Software: E-Tube Project Professional (free download at https://bike.shimano.com/en-EU/e-tube/project/forwindows.html Shimano Di2 System: Di2 with BT-DN300 batteryDi2 with BM-DN100 / BT-DN110 battery holder / rechargeable batteryDi2 with SM-BMR1 / SM-BMR2 / SM-BTR2 battery holder / battery Shimano E-Bike System (STEPS): EP801 / EP6E6000E8000 / E8080E7000EP800 / E6100 / E6180 / E5000 / E5080 Operating System: Window 8.1 (32/64 bit)Windows 10 (32/64 bit)Windows 11 (32/64 bit)Features:for connecting STEPS and Di2 systems/components to a PCwide range of diagnostic and maintenance optionsdiverse setting optionsfirmware updateManufacturer Number:ISMPCE02B3 Contents:1 x Shimano SM-PCE02 PC interface1 x Shimano Y79M00800 Micro USB/USB cable1 x Shimano Y7EA03100 connection cable (SD50 type)1 x Shimano Y79M9801T connection cable (SD300 type) Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
