Productomschrijving

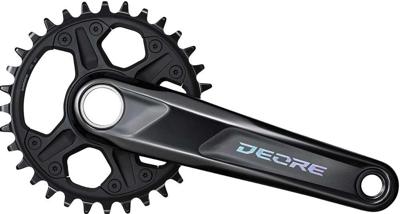

Product Description Shimano Deore crankset FC-M6130-1 - with larger Q-factor Compared to the other Deore 12-speed cranks, the Shimano Deore crankset FC-M6130-1 generates the largest distance between bottom bracket and pedal mount (Q-factor), namely 181 mm. The chainline, i.e. the distance between frame and chainring, is also slightly wider than on the FC-M6120-1, which makes the model suitable for 157 mm over locknut dimensions as well as 148 mm. FC-M6130-1 is equipped with a single chainring for direct mounting, so Mountain bikers benefit from a user-friendly, reliable and low-maintenance set-up. To ensure that the chain runs safely, smoothly and quietly over the teeth, Dynamic Chain Engagement+ technology is used, which was previously used in the SLX, for example. Last but not least, this crankset scores points with its metallic look including colour gradient in the Deore logo and with the 2-piece design, which ensures a balanced ratio of stiffness and weight. Specifications:Application:Enduro, Downhill, All MountainCompatibility:Shimano 1x12-speedChainring Mount:Shimano Direct MountTechnical Information:Series:Deore M6100Crank Arm Material:aluminiumChainring Material:Steel, composite material (GFRP), aluminiumAxle Material:steelGradation:30 tooth, 32 toothCrank Arm Length:165.0 mm, 170.0 mm, 175.0 mmChainline:56.5 mmQ-Factor:181 mmAxle Diameter:24 mmCompatible BSA Shell Width:68 mm / 73 mmRecommended Bottom Bracket:BB-MT501 or BB-MT500-PA Press Fit Hollowtech II (not included)Recommended Chain:HG 12-speed (e.g. CN-M6100)Compatibility:MTB 1x12-speed: Rear Over Locknut Dimension: thru-axle: 157 mm, also suitable for 148 mmBottom Bracket:SM-BB93, SM-BB80, BB-MT801, BB-MT800, SM-BB52, BB-MT501, BB-MT500, SM-BB94-41A, BB-MT800-PA, BB-MT500-PAChain:CN-M9100, CN-M8100, CN-M7100, CN-M6100-12Features:stiff, lightweight 2-piece cranks with efficient power transferDirect Mount systemparticularly high retention of the chain on the chainring for comfortable riding on rough terrainanodised crank arms, painted chainringTechnology:2-Piece Crankset With the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets. Dynamic Chain Engagement+ Dynamic Chain Engagement+ is Shimano's term for a special tooth profile of single chainrings intended for off-road use. This improves the chain hold and counteracts chain drop on rough ground. It also minimises wear and increases pedaling efficiency. Manufacturer Numbers:165.0 mm 30 tooth:E-FCM61301AXA0170.0 mm 30 tooth:E-FCM61301CXA0175.0 mm 30 tooth:E-FCM61301EXA0165.0 mm 32 tooth:E-FCM61301AXA2170.0 mm 32 tooth:E-FCM61301CXA2175.0 mm 32 tooth:E-FCM61301EXA2Contents:1 x (30 or 32-tooth)Order Together:TL-FC41 Chainring Assembly Tool Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
