Productomschrijving

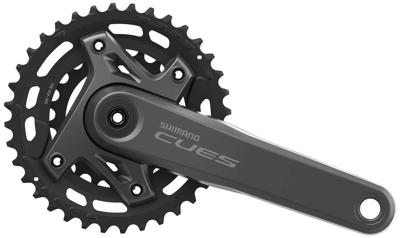

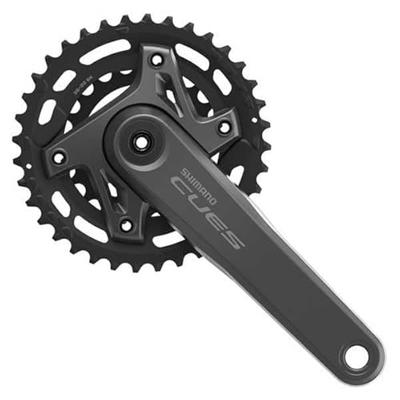

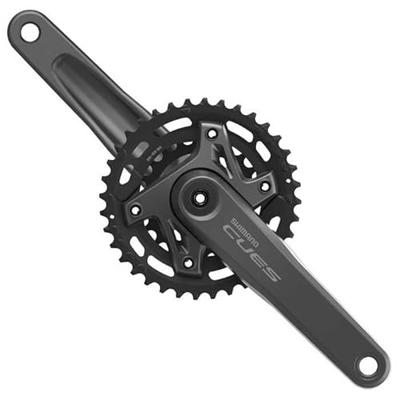

Product Description Shimano CUES FC-U6000-2B - High-quality 2-piece crank with two chainrings for Boost over locknut dimension The CUES crankset FC-U6000-2B was designed by Shimano for Linkglide drivetrains for sporty MTB and touring use. It is suitable for 2x9-speed, 2x10-speed and 2x11-speed derailleurs and produces a chainline of 51.8 mm further out. This is why frames with the so-called Boost Standard, i.e. an over locknut dimension of 148 mm, are compatible. The Q-factor is 180 mm. The 2-piece design of the crank provides an optimal stiffness-to-weight ratio and improves power transfer. The gradation is chosen so that it can be pedalled harmoniously and smoothly on different types of terrain. The crank arms and spider are made of aluminium; the chainrings are made of steel. Specifications:Application:All Mountain, City & TouringCompatibility:2x9-speed, 2x10-speed, 2x11-speedChainring Mount:96 mm bolt circle diameter, 4-arm asymmetricalTechnical Information:Series:CUES U6000Crank Arm Material:aluminiumChainring Material:steelAxle Material:steelGradation:22-36Crank Arm Length:170.0 mm, 175.0 mmChainline:51.8 mmQ-Factor:180 mmAxle Diameter:24 mmCompatible BSA Shell Width:68 mm / 73 mmRecommended Bottom Bracket:BB-MT501 (BSA) or BB-MT500-PA press fit (not included)Recommended Chain:Linkglide (CN-LG500), HG 11-speed (e.g. CN-HG601-11)Compatibility:Rear Over Locknut Dimension: quick release: 141 mmthru-axle: 148 mmBottom Bracket:BB-MT801, BB-MT501, BB-UR400, SM-BB94-41A, BB-MT800-PA, BB-MT500-PAShifter:SL-U8000-L, SL-U8000-IL, SL-U6000-L, SL-U4000-LFront Derailleur: 2x11-speed: FD-U60002x10-speed: FD-U6000, FD-U40002x9-speed: FD-U4000Chain:CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500Chain Case:not compatibleFeatures:2-piece crank with two chainrings and chainline further out for sporty MTB and touring useexclusively for Shimano Linkglide drivetrains (9-speed, 10-speed, 11-speed)reliable, smooth performance on various terrainwide ratio range for harmonious, comfortable pedallingoptimum stiffness with low weightefficient transfer of pedal powerlacquered crank arms, spider and chainringsstainless steel chainring boltsTechnology:2-Piece Crankset With the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets. Manufacturer Numbers:170.0 mm 22-36:EFCU60002BCX62175.0 mm 22-36:EFCU60002BEX62Contents:1 x (22-36 tooth)1 x Shimano crank bolts Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
