Productomschrijving

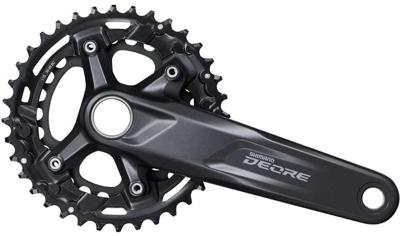

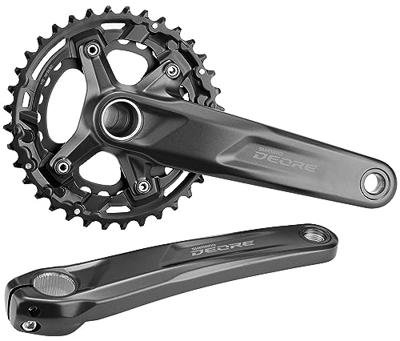

Product Description Shimano Deore crankset FC-M5100-B2 - for 148 mm over locknut dimensions The for 11-speed drivetrains differs from the FC-M5100-2 by its chainline, i.e. the distance from the frame to the centre between the chainrings. This is 51.8 mm here, or 3 mm wider, so that the cranks are only suitable for frames with an over locknut dimension of 148 mm. However, the two chainrings are also mounted on this model via a conventional 4-arm spider. Thanks to the 2-piece construction, a balanced ratio of stiffness to weight is ensured. Specifications:Application:All Mountain, Cross CountryCompatibility:Shimano 2x11-speedChainring Mount:96/64 mm bolt circle diameter, 4-arm asymmetricalTechnical Information:Series:Deore M5100Crank Arm Material:aluminiumChainring Material:steelAxle Material:steelGradation:26-36Crank Arm Length:170.0 mm, 175.0 mmChainline:51.8 mmQ-Factor:178.5 mmAxle Diameter:24 mmCompatible BSA Shell Width:68 mm / 73 mmRecommended Bottom Bracket:BB-MT501 or BB-MT500-PA Press Fit Hollowtech II (not included)Recommended Chain:HG-X11 (e.g. CN-HG601-11)Compatibility:MTB 2x11-speed: Rear Over Locknut Dimension: quick release: 141 mmthru-axle: 148 mmShifter:SL-M9000, SL-M8000, SL-M7000-L, SL-M5100, SW-M9050, SW-M8050Front Derailleur:FD-M9020, FD-M9025, FD-M8020, FD-M8025, FD-M7020-11, FD-M7025-11, FD-M5100, FD-M9070, FD-M8070Bottom Bracket:SM-BB93, SM-BB80, BB-MT801, BB-MT800, SM-BB52, BB-MT501, BB-MT500, SM-BB94-41A, BB-MT800-PA, BB-MT500-PAChain:CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500Features:stiff, lightweight 2-piece cranks with efficient power transferprecise and reliable gear changes3 mm outboard chainlinepainted crank arms and chainringsstainless steel hardwareTechnology:2-Piece Crankset With the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets. Manufacturer Numbers:170.0 mm:E-FCM51002BCX66175.0 mm:E-FCM51002BEX66Contents:1 x (26-36 tooth)1 x Shimano crank bolt Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
