Productomschrijving

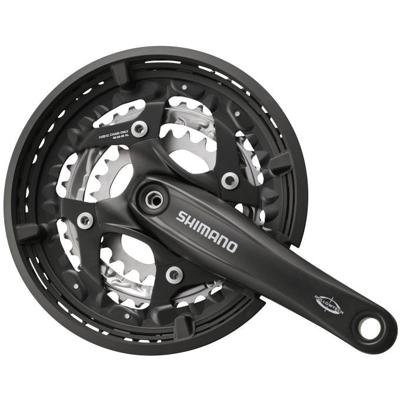

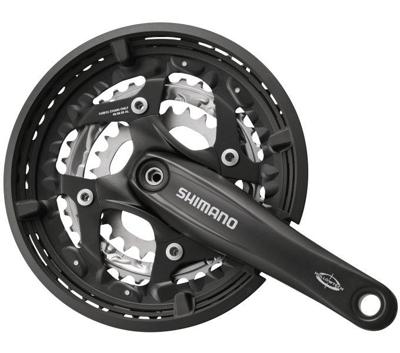

10-speed crankstel voor trekkingfiets Gebaseerd op concept van XT/LX trekkingproducten Stabiele en soepele schakelwerking Eenvoudig en stevig ontwerp Geïntegreerd uiterlijk van de kettingbeschermer Stijf en lichtgewicht door HOLLOWTECH, OCTALINK OCTALINK-constructie Aanbevolen BB-ES300 Product specificaties
Merk: Shimano Shimano groep: Geen Shimano groepscode: T521 Shimano modelcode: FC-T521 Cranklengte: 175 mm Vertanding: 48-36-26 Aantal armen: 4-arm Aantal kettingbladen: Triple Aantal versnellingen: 10 Kleur: Zwart BB as-lengte: Octalink (121 mm lengte trapas voor de juiste kettinglijn) Bout-cirkel diameter: 104/64mm Q-factor (mm) 185,8 Product Description Shimano FC-T521 with chain guard - The Octalink crankset for city & touring The Shimano FC-T521 is an Octalink crankset for 10-speed touring drivetrains. Although it has no groupset, it meets the quality criteria of comparable LX components, for example with regard to the smoothness of shifting or the shapely integration of the chain guard ring as well as chain case compatibility. Hollow forged crank arms (Hollowtech technology) provide stability with the lowest possible weight. The crank comes with three chainrings (104/64 mm bolt circle diameter), which are attached to a 4-arm spider. You have the choice between a black and a silver version. Specifications:Application:City & TouringCompatibility:Shimano 3x10-speedChainring Mount:104/64 mm bolt circle diameter, 4-armTechnical Information:Crank Arm Material:aluminiumChainring Material:aluminium / steel-fibreglass composite (32 T), steel (36 T) / steelGradation:24-32-44, 26-36-48Crank Arm Length:170.0 mm, 175.0 mmChainline:50 mmQ-Factor:185.8 mmCompatible BSA Shell Width:68 mm / 73 mmRecommended Bottom Bracket:BB-ES300 Octalink or BB-ES300-AK Octalink (with chain case), 121 mm axle (not included)Recommended Chain:HG-X 10-speed (e.g. CN-HG95)Compatibility:Touring 3x10-speed: Shifter:SL-T8000, SL-T780, SL-M780, SL-T670, SL-M670, SL-T610, SL-M610, SL-M591, SL-T6000Front Derailleur:FD-T8000, FD-T780, FD-T781, FD-T670, FD-T671, FD-T610, FD-T611, FD-T6000Bottom Bracket:BB-ES300 (Octalink, 121 mm axle)Chain:CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54Chain Case:compatibleFeatures:follows XT/LX Trekking product conceptgentle shifting performance in combination with HG-X chainintegrated design of the chain guardstable and light due to Hollowtech construction (hollow crank arms)crank arms and large chainring anodised, medium/small chainring paintedstainless steel chainring boltswith chain guardTechnology:Octalink In Shimano's Octalink system, the bottom bracket and crank are connected by an 8-tooth contact surface. This provides greater rigidity and greater load capacity, especially compared to conventional square systems. Manufacturer Numbers:black 170.0 mm 24-32-44:E-FCT521C424CLsliver 170.0 mm 24-32-44:E-FCT521C424CSblack 175.0 mm 24-32-44:E-FCT521E424CLsliver 175.0 mm 24-32-44:E-FCT521E424CSblack 170.0 mm 26-36-48:E-FCT521C866CLsliver 170.0 mm 26-36-48:E-FCT521C866CSblack 175.0 mm 26-36-48:E-FCT521E866CLsliver 175.0 mm 26-36-48:E-FCT521E866CSContents:1 x Shimano FC-T521 crankset (24-32-44 or 26-36-48 tooth)1 x Shimano chain guard2 x crank bolts2 x washers Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
