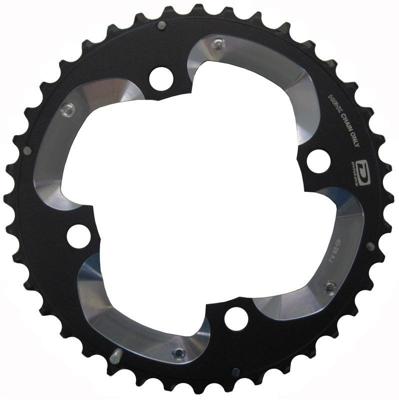

Shimano chainring fc-m780 40-4 2x10 speed

Product specificaties Merk: Shimano Shimano groep: Deore XT Shimano groepscode: M782 Shimano modelcode: FCM782 Modeljaar: 2014 Aantal armen: 4-arm Aantal versnellingen: 10 Vertanding: 30 Product Description The Shimano XT 10-speed Chainring for the FC-M782 crank This Shimano XT 10-speed chainring is compatible with the FC-M782 crank and has a bolt circle diameter of 96 or 64 mm (symmetrical 4-arm design). This allows the 22-30-40 tooth combination to be formed. The middle chainring is made of a steel-carbon composite, the other two are made of aluminium. Specifications:Application:Cross Country, All MountainMount:96/64 mm bolt circle diameter, 4-arm symmetricalTeeth:22 t, 30 t, 40 tGearing:3x10-speedTechnical Information:Combinations:22-30-40 TMaterial:aluminium (22 t + 40 t), steel-carbon composite (30 t)Compatibility:XT FC-M78222/30 Z also fits SLX FC-M672Features:large chainring anodised, medium and small chainring platedModels:22 tooth: Type:ANBolt Circle Diameter:64 mmManufacturer…

Product specificaties Merk: Shimano Shimano groep: Deore Shimano modelcode: FCM610 Modeljaar: 2013 Aantal armen: 4-arm Aantal versnellingen: 10 Vertanding: 32 Product Description The Shimano 10-speed Chainring for FC-T521 Cranks This Shimano chainring is compatible with the FC-T521 3x10-speed touring crank. It can be combined to form the 24-32-44 and 26-36-48 gradations. In line with the Shimano HyperDrive concept, it contributes to a reliable, fast shifting function in combination with the chain and front derailleur. Specifications:Application:City & Touring, All Mountain, Cross CountryMount:104 mm bolt circle diameter, 4-armTeeth:32 t, 36 t, 44 t, 48 tGearing:3x10-speedTechnical Information:Combinations:24-32-44 T, 26-36-48 TMaterial:steel fibreglass composite (32 t), aluminium (36 t to 48 t) Note:The FC-T521 with chain guard requires a special chainring.Models:32 tooth: Type:AECompatibility:FC-T521 / Deore FC-T611, FC-M610Manufacturer Number:Y-1NL98010 36 tooth: Type:ALCompatibility…

Shimano kettingblad 39t Tiagra FC-4500 Product Description The Shimano Tiagra 9-speed Chainring for the FC-4500 crank The Shimano chainring (39 T) for the Tiagra FC-4500 crank also fits Alfine FC-S501, but only in the version with single chain guard. It can be combined with a 52 T chainring on the Tiagra. This 5-arm chainring (130 mm bolt circle diameter) is made of anodised aluminium. Specifications:Application:Road, City, Touring & TrekkingAttachment:130 mm bolt circle diameter, 5-armTeeth:39 tGearing:2x9-speed (FC-4500), 1x9-speed (Alfine)Technical Information:Combinations:39-52 t (only FC-4500)Material:AluminiumCompatibility:Tiagra FC-4500Alfine FC-S500 w/ 1x chain guardAlfine FC-S501 w/ 1x chain guardFeatures:anodisedManufacturer Number:Y-1H639000 Contents:1 x Shimano Tiagra FC-4500 chainring Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com

Product specificaties Merk: Shimano Shimano groep: SLX Shimano groepscode: M672 Shimano modelcode: FCM672 Modeljaar: 2013 Aantal armen: 4-arm Aantal versnellingen: 10 Vertanding: 30 Product Description The Shimano SLX 10-speed Chainring for the FC-M672 crank The Shimano SLX 10-speed chainring fits FC-M672 Triple cranks, but the 22- and 30-tooth version is also compatible with a few other cranks. The chainrings have symmetrically distributed holes with a bolt circle diameter of 96 or 64 mm. They have been designed to work perfectly with the front derailleur and chain in the HyperDrive drivetrain. Specifications:Application:All Mountain, Cross CountryMount:96/64 mm bolt circle diameter, 4-arm symmetricalTeeth:22 t, 30 t, 40 tGearing:3x10-speedTechnical Information:Combinations:22-30-40 TMaterial:steel (22 t), steel fibreglass composite (30 t), aluminium (40 t)Features:large chainring anodised, medium and small chainring platedModels:22 tooth: Type:ANBolt Circle Diameter:64 mmCompatibilit…

Product Description The Shimano 105 11-speed Chainring for FC-R7000 Cranks This Shimano 11-speed chainring is a spare part for the 105 FC-R7000 crank. It works together with the other front drive components precisely and quickly. The 4-arm chainrings have an asymmetrical 110 mm bolt circle diameter and can be assembled into three different combinations. The versions 34 to 39 teeth are made of aluminium, 50 to 53 teeth of an aluminium-plastic composite. Of course, there are two different colour options so that the chainring can be matched to the colour of the crank. Specifications:Application:Road, Cyclocross, GravelMount:110 mm pitch circle, 4-arm asymmetricalTeeth:34 t, 36 t, 39 t, 50 t, 52 t, 53 tGearing:2x11-speedTechnical Information:Combinations:34-50 t, 36-52 t, 39-53 tMaterial:Aluminium (34 to 39 t), aluminium/composite material (GFRP, 50 to 53 t)Compatibility:105 FC-R7000also fits Ultegra FC-R8000Features:anodisedModels:34 tooth: Type:MSManufacturer Numbers:Y-1WV34000 (black), …

Product Description The Shimano Ultegra 12-speed chainring for the FC-R8100 crankset This chainring is a spare part for the Shimano Ultegra FC-R8100 2x12-speed road crankset. It is also compatible with the FC-R8100-P model with power meter. The chainring has four asymmetrically arranged arms and a 110 mm bolt circle diameter. The 52 and 50 tooth versions are made of an aluminium-carbon composite, the other variations are purely aluminium. All versions have an anodised finish. Specifications:Application:RoadMount:110 mm bolt circle, 4-arm asymmetricalTeeth:34 t, 36 t, 50 t, 52 tGearing:2x12-speedTechnical Information:Combinations:34-50 t, 36-52 tMaterial:aluminium / carbon (50 + 52 t), aluminium (34 + 36 t)Compatibility:Ultegra FC-R8100Ultegra FC-R8100-Palso suitable for Dura-Ace FC-R9200(-P)Features:suitable for cranksets with and without power meterlarge chainring made of aluminium-CFRP compositesmall chainring made of aluminiumanodisedModels:34 tooth: Type:NKManufacturer Number:Y0NG…

Product Description The Shimano Alfine 9-speed Chainring for the FC-S501 crank This 9-speed chainring is compatible with the Shimano Alfine FC-S501 crank, regardless of whether one or two chain rings are used. The 45-tooth version can also be used for older city bike cranks. Since it is a single chainring, no combinations can be made. Specifications:Application:City & TouringAttachment:130 mm bolt circle diameter, 5-armTeeth:42 t, 45 tGearing:1x9-speedTechnical Information:Material:AluminiumFeatures:for single and double chain guardsModels:silver / 42-tooth: Compatibility:Alfine FC-S501Manufacturer Number:Y-1PB42000 black / 42-tooth: Compatibility:Alfine FC-S501Manufacturer Number:Y-1PB42010 silver / 45-tooth: Compatibility:Alfine FC-S501, FC-S500, FC-S400Manufacturer Number:Y-1PB45000 black / 45-tooth: Compatibility:Alfine FC-S501, FC-S500, FC-S400Manufacturer Number:Y-1PB45010Contents:1 x Shimano Alfine FC-S501 chainring Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG E…
