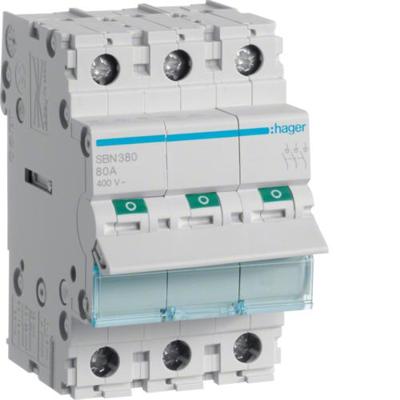

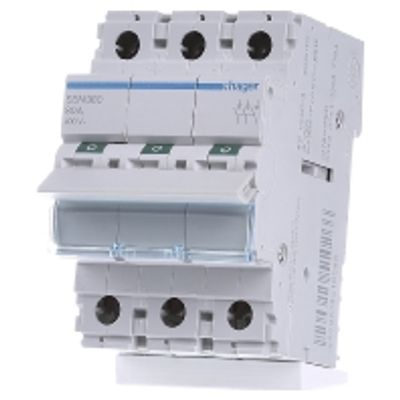

SBN380 - Off switch for distributor 3 NO 0 NC SBN380

EAN: 3250615510266 - manufacturer-number: SBN380 - Off switch for distributor 3 NO 0 NC Switching function Off switch, Number of contacts as normally open contact 3, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Number of poles 3, Rated current 80A, Rated voltage 400V, Min. rated voltage 400V, Rated s...
74,36

Webshops met dit product

Webshop
Bezorging
Prijs

Anderen bekeken ook

SBN316  - Off switch for distributor 3 NO 0 NC SBN316
SBN316 - Off switch for distributor 3 NO 0 NC SBN316
EAN: 3250615510068 - manufacturer-number: SBN316 - Off switch for distributor 3 NO 0 NC Switching function Off switch, Number of contacts as normally open contact 3, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Number of poles 3, Rated current 16A, Rated voltage 400V, Min. rated voltage 400V, Rated switching capacity 0,338kA, Short-circuit breaking capacity (Icw) 0,24kA, Voltage type AC, Max. lamp power 0W, Width in number of modular spacings 2, Built-in depth 68mm, Degree of protection (IP) IP20 - SBN316
28,31
SBN390  - Off switch for distributor 3 NO 0 NC SBN390
SBN390 - Off switch for distributor 3 NO 0 NC SBN390
EAN: 3250615510303 - manufacturer-number: SBN390 - Off switch for distributor 3 NO 0 NC Switching function Off switch, Number of contacts as normally open contact 3, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Number of poles 3, Rated current 100A, Rated voltage 400V, Min. rated voltage 400V, Rated switching capacity 1,692kA, Short-circuit breaking capacity (Icw) 1,2kA, Voltage type AC, Max. lamp power 0W, Width in number of modular spacings 3, Built-in depth 68mm, Degree of protection (IP) IP20 - SBN390
133,99
SBN340  - Off switch for distributor 3 NO 0 NC SBN340
SBN340 - Off switch for distributor 3 NO 0 NC SBN340
EAN: 3250615510181 - manufacturer-number: SBN340 - Off switch for distributor 3 NO 0 NC Switching function Off switch, Number of contacts as normally open contact 3, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Number of poles 3, Rated current 40A, Rated voltage 400V, Min. rated voltage 400V, Rated switching capacity 0,846kA, Short-circuit breaking capacity (Icw) 0,6kA, Voltage type AC, Max. lamp power 0W, Width in number of modular spacings 3, Built-in depth 68mm, Degree of protection (IP) IP20 - SBN340
38,52
SBN363  - Off switch for distributor 3 NO 0 NC SBN363
SBN363 - Off switch for distributor 3 NO 0 NC SBN363
EAN: 3250615510228 - manufacturer-number: SBN363 - Off switch for distributor 3 NO 0 NC Switching function Off switch, Number of contacts as normally open contact 3, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Number of poles 3, Rated current 63A, Rated voltage 400V, Min. rated voltage 400V, Rated switching capacity 1,332kA, Short-circuit breaking capacity (Icw) 0,945kA, Voltage type AC, Max. lamp power 0W, Width in number of modular spacings 3, Built-in depth 68mm, Degree of protection (IP) IP20 - SBN363
23,61
SBN263  - Off switch for distributor 2 NO 0 NC SBN263
SBN263 - Off switch for distributor 2 NO 0 NC SBN263
EAN: 3250615510211 - manufacturer-number: SBN263 - Off switch for distributor 2 NO 0 NC Switching function Off switch, Number of contacts as normally open contact 2, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Number of poles 2, Rated current 63A, Rated voltage 400V, Min. rated voltage 400V, Rated switching capacity 1,332kA, Short-circuit breaking capacity (Icw) 0,945kA, Voltage type AC, Max. lamp power 0W, Width in number of modular spacings 2, Built-in depth 68mm, Degree of protection (IP) IP20 - SBN263
33,32
SBN463  - Off switch for distributor 4 NO 0 NC SBN463
SBN463 - Off switch for distributor 4 NO 0 NC SBN463
EAN: 3250615510235 - manufacturer-number: SBN463 - Off switch for distributor 4 NO 0 NC Switching function Off switch, Number of contacts as normally open contact 4, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Number of poles 4, Rated current 63A, Rated voltage 400V, Min. rated voltage 400V, Rated switching capacity 1,332kA, Short-circuit breaking capacity (Icw) 0,945kA, Voltage type AC, Max. lamp power 0W, Width in number of modular spacings 4, Built-in depth 69mm, Degree of protection (IP) IP20 - SBN463
49,19
SBN240  - Off switch for distributor 2 NO 0 NC SBN240
SBN240 - Off switch for distributor 2 NO 0 NC SBN240
EAN: 3250615510174 - manufacturer-number: SBN240 - Off switch for distributor 2 NO 0 NC Switching function Off switch, Number of contacts as normally open contact 2, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Number of poles 2, Rated current 40A, Rated voltage 400V, Min. rated voltage 400V, Rated switching capacity 0,846kA, Short-circuit breaking capacity (Icw) 0,6kA, Voltage type AC, Max. lamp power 0W, Width in number of modular spacings 2, Built-in depth 68mm, Degree of protection (IP) IP20 - SBN240
34,15
SBN280  - Off switch for distributor 2 NO 0 NC SBN280
SBN280 - Off switch for distributor 2 NO 0 NC SBN280
EAN: 3250615510259 - manufacturer-number: SBN280 - Off switch for distributor 2 NO 0 NC Switching function Off switch, Number of contacts as normally open contact 2, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Number of poles 2, Rated current 80A, Rated voltage 400V, Min. rated voltage 400V, Rated switching capacity 1,354kA, Short-circuit breaking capacity (Icw) 0,96kA, Voltage type AC, Max. lamp power 0W, Width in number of modular spacings 2, Built-in depth 68mm, Degree of protection (IP) IP20 - SBN280
56,80
SBN416  - Off switch for distributor 4 NO 0 NC SBN416
SBN416 - Off switch for distributor 4 NO 0 NC SBN416
EAN: 3250615510075 - manufacturer-number: SBN416 - Off switch for distributor 4 NO 0 NC Switching function Off switch, Number of contacts as normally open contact 4, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Number of poles 4, Rated current 16A, Rated voltage 400V, Min. rated voltage 400V, Rated switching capacity 0,338kA, Short-circuit breaking capacity (Icw) 0,24kA, Voltage type AC, Max. lamp power 0W, Width in number of modular spacings 2, Built-in depth 68mm, Degree of protection (IP) IP20 - SBN416
40,88
SBN440  - Off switch for distributor 4 NO 0 NC SBN440
SBN440 - Off switch for distributor 4 NO 0 NC SBN440
EAN: 3250615510198 - manufacturer-number: SBN440 - Off switch for distributor 4 NO 0 NC Switching function Off switch, Number of contacts as normally open contact 4, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Number of poles 4, Rated current 40A, Rated voltage 400V, Min. rated voltage 400V, Rated switching capacity 0,846kA, Short-circuit breaking capacity (Icw) 0,6kA, Voltage type AC, Max. lamp power 0W, Width in number of modular spacings 4, Built-in depth 69mm, Degree of protection (IP) IP20 - SBN440
60,80

Klanten-reviews van SBN380 - Off switch for distributor 3 NO 0 NC SBN380

Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

Meer over SBN380 - Off switch for distributor 3 NO 0 NC SBN380

Productomschrijving

EAN: 3250615510266 - manufacturer-number: SBN380 - Off switch for distributor 3 NO 0 NC Switching function Off switch, Number of contacts as normally open contact 3, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Number of poles 3, Rated current 80A, Rated voltage 400V, Min. rated voltage 400V, Rated switching capacity 1,354kA, Short-circuit breaking capacity (Icw) 0,96kA, Voltage type AC, Max. lamp power 0W, Width in number of modular spacings 3, Built-in depth 68mm, Degree of protection (IP) IP20 - SBN380

Productspecificaties

Artikelnummer(s)
EAN
3250615510266
Brand
Hager
Energie
Nominale netspanning
80 A
Kern voltage (max)
440 V
Kenmerken
Aantal polen
3
Hoeveelheid modules (max)
3 module(s)
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-20 - 50 °C
Temperatuur bij opslag
-40 - 80 °C
Gewicht en omvang
Breedte
52,5 mm
Diepte
68 mm
Hoogte
83 mm
