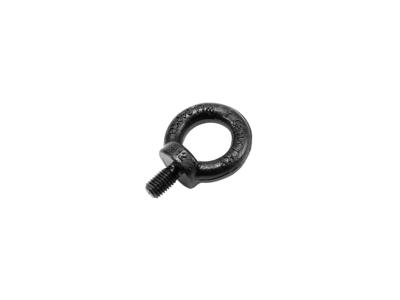

Name: SAFETEX Eye Bolt M12/20mm, black galvanized drop forged
SKU: 84db69bf200428723866620da0f0aa75
Price: 6.15 EUR
Availability: InStock

SAFETEX Eye Bolt M12/20mm, black galvanized drop forged

Complies with DIN 580M12 threadMaximum load BGV C1 (8-fold):170 kgMaximum load WLL (4-fold):340 kgStandard:DIN 580,Material:Steel C15EColor:BlackInside diameter:Ã 3 cmOutside diameter:Ã 5,3 cmThread:M12 thread x 20,5 mmDimensions:Length: 7,35 cmWeight:180 g

6,15

SAFETEX Eye Bolt M8/13mm, black galvanized drop forged

Complies with DIN 580M8 threadMaximum load BGV C1 (8-fold):70 kgMaximum load WLL (4-fold):140 kgStandard:DIN 580,Material:Steel C15EColor:BlackInside diameter:Ã 2 cmOutside diameter:Ã 3,6 cmThread:M8 thread x 13 mmDimensions:Length: 4,90 cmWeight:60 g

3,15

SAFETEX Eye Bolt M10/17mm, black galvanized drop forged

Complies with DIN 580M10 threadMaximum load BGV C1 (8-fold):115 kgMaximum load WLL (4-fold):230 kgStandard:DIN 580,Material:Steel C15EColor:BlackInside diameter:Ã 2,5 cmOutside diameter:Ã 4,5 cmThread:M10 thread x 17 mmDimensions:Length: 6,20 cmWeight:110 g

3,65

SAFETEX Eye Bolt M14/27mm, black galvanized drop forged

M14 threadMaximum load BGV C1 (8-fold):245 kgMaximum load WLL (4-fold):490 kgMaterial:Steel C15EInside diameter:Ã 3,5 cmOutside diameter:Ã 6,2 cmThread:M14 thread x 27 mmDimensions:Length: 8,90 cmWeight:300 g

8,15

ACCESSORY Eye Bolt M12/50mm, Stainless Steel

Safety eyeletFor holding, carrying, suspending and securingCan be used as attachment gear or connection element, e.g. for screwing into the flying points of a loudspeaker cabinetWarning: the given working load limit (WLL) of this product is only valid for holding and carrying loads with lifting gear.M12 threadMaximum load BGV C1 (8-fold):600 kgMaximum load WLL (4-fold):1200 kgMaterial:AlSi316Inside diameter:Ã 3 cmOutside diameter:Ã 5,3 cmThread:M12 thread x 50 mmDimensions:Length: 10,30 cmWeight:170 g

12,39

SAFETEX Shackle 22mm bk with Bolt, Mother, Splint

Bow shackle, maximum load WLL 6500 kgNominal size: 22 mmScrew bolt with hexagon head, hexagon nut and safety split pinComplies with DIN EN 13889:2009-02Maximum load WLL (5-fold):6500 kgStandard:DIN EN 13889:2009-02,Color:BlackTemperature range:-20Â° C - +200Â° CDimensions:Diameter: Ã 2,20 cmWeight:1,65 kg

31,89

SAFETEX Shackle 16mm bk with Bolt, Mother, Splint

Bow shackle, maximum load WLL 3250 kgNominal size: 16 mmScrew bolt with hexagon head, hexagon nut and safety split pinComplies with DIN EN 13889:2009-02Maximum load WLL (5-fold):3250 kgStandard:DIN EN 13889:2009-02,Color:BlackTemperature range:-20Â° C - +200Â° CDimensions:Diameter: Ã 1,60 cmWeight:670 g

18,15

SAFETEX Shackle 10mm bk with Bolt, Mother, Splint

Bow shackle, maximum load WLL 1000 kgNominal size: 10 mmScrew bolt with hexagon head, hexagon nut and safety split pinComplies with DIN EN 13889:2009-02Maximum load WLL (5-fold):1000 kgStandard:DIN EN 13889:2009-02,Color:BlackTemperature range:-20Â° C - +200Â° CDimensions:Diameter: Ã 1 cmWeight:170 g

7,39

ACCESSORY Eye Bolt M10

Safety eyeletFor holding, carrying, suspending and securingCan be used as attachment gear or connection element, e.g. for screwing into the flying points of a loudspeaker cabinetWarning: the given working load limit (WLL) of this product is only valid for holding and carrying loads with lifting gear.M10 threadFor further information about this product, please refer to the Data Sheet under "Downloads"Maximum load BGV C1 (8-fold):115 kgMaximum load WLL (4-fold):230 kgInside diameter:Ã 2,5 cmOutside diameter:Ã 4,5 cmThread:M10 thread x 17 mmDimensions:Length: 6,20 cmWeight:110 g

5,65

ACCESSORY Eye Bolt M8

Safety eyeletFor holding, carrying, suspending and securingCan be used as attachment gear or connection element, e.g. for screwing into the flying points of a loudspeaker cabinetWarning: the given working load limit (WLL) of this product is only valid for holding and carrying loads with lifting gear.M8 threadFor further information about this product, please refer to the Data Sheet under "Downloads"Maximum load BGV C1 (8-fold):70 kgMaximum load WLL (4-fold):140 kgInside diameter:Ã 2 cmOutside diameter:Ã 3,6 cmThread:M8 thread x 13 mmDimensions:Length: 4,90 cmWeight:55 g

4,89

SAFETEX Eye Bolt M12/20mm, black galvanized drop forged

Verkopers met dit product

Anderen bekeken ook

Klanten-reviews van SAFETEX Eye Bolt M12/20mm, black galvanized drop forged

Meer over SAFETEX Eye Bolt M12/20mm, black galvanized drop forged

Productomschrijving

Productinformatie

Productspecificaties

Verken gerelateerde categorieën

Maximum load BGV C1 (8-fold):	170 kg
Maximum load WLL (4-fold):	340 kg
Standard:	DIN 580,
Material:	Steel C15E
Color:	Black
Inside diameter:	Ã 3 cm
Outside diameter:	Ã 5,3 cm
Thread:	M12 thread x 20,5 mm
Dimensions:	Length: 7,35 cm
Weight:	180 g
