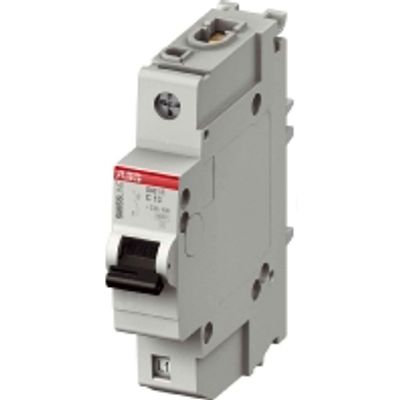

S401M-C6 - Miniature circuit breaker 1-p C6A S...

EAN: 7612270101382 - manufacturer-number: S401M-C6 - Miniature circuit breaker 1-p C6A Release characteristic C, Number of poles (total) 1, Number of protected poles 1, Rated current 6A, Rated voltage 400V, Rated insulation voltage Ui 440V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10kA, R...

Aanbiedingen

  • Webshop
    Bezorgen/levertijd
    Prijs
  • Go to Eibmarkt.com page
    Eibmarkt.com

    12 werkdagen

    €6.89

    €40.65

Anderen bekeken ook

Klanten-reviews van S401M-C6 - Miniature circuit breaker 1-p C6A S401M-C6

0

0 Klanten-reviews

0
0
0
0
0

Meer over S401M-C6 - Miniature circuit breaker 1-p C6A S401M-C6

Productomschrijving

EAN: 7612270101382 - manufacturer-number: S401M-C6 - Miniature circuit breaker 1-p C6A Release characteristic C, Number of poles (total) 1, Number of protected poles 1, Rated current 6A, Rated voltage 400V, Rated insulation voltage Ui 440V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10kA, Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 25kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10kA, Voltage type AC, Frequency 50 ... 50Hz, Current limiting class 3, Over voltage category 3, Pollution degree 3, Additional equipment possible, Width in number of modular spacings 1, Built-in depth 75mm, Degree of protection (IP) IP20, Ambient temperature during operating -25 ... 55°C, Connectable conductor cross section solid-core 0,75 ... 25mm² - S401M-C6

Productspecificaties

Artikelnummer(s)
EAN
7612270101382
Brand
ABB
