Productomschrijving

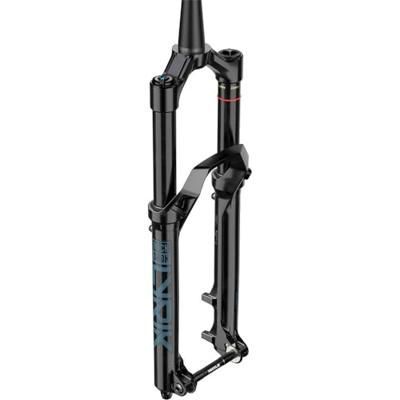

Product Description The RockShox Lyrik Select RC DebonAir+ Boost Suspension Fork for 27.5" wheels is a trail all-rounder The RockShox Lyrik Boost 27.5" suspension fork is suited for all-mountain to enduro tours and comes in the Select version with Charger RC damper and DebonAir+ air spring. It allows you to adjust the low-speed compression damping. The DebonAir+ air spring impresses with excellent response and confidence-inspiring control. With a 35 mm stanchion tube diameter, the Lyrik strikes the right balance between stability and low weight. The Maxima Plush Dynamic suspension fluid scores with high durability, low friction and ensures consistent performance. Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance. Specifications:Application:All Mountain, EnduroWheel Size:27.5" (650B)Suspension Type:airTravel:140 mm, 150 mm, 160 mmSteerer Tube:1 1/8" - 1.5" taperedAxle Type:thru-axleWheel Standard:15 x 110 mm (Boost)Brake Mount:disc PM7 (direct mount 180 mm)Technical Information:Offset:37 mm, 44 mmSteerer Tube Length:265 mmSteerer Tube Diameter (Stem):28.6 mmSteerer Tube Diameter (Crown Race):40 mmOver Locknut Dimension:110 mmStanchion Tube Diameter:35 mmSteerer Tube Material:AluminiumCrown Material:AluminiumStanchion Tube Material:AluminiumLower Tube Material:magnesiumAdjustment Options:Compression:low-speedRebound:yesSuspension Stiffness:air pressure adjustRemote:noTravel Adjustment:noApproved For:Tyre Size (max.):27.5 x 3.1"Note:For individual tyres, tyre clearance must be checked with the fork fully compressed and the tyre fully inflated. It should be at least 6 mm all around.Rotor Size (max.):220 mmFeatures:Charger RC damper with low-speed compression settingDebonAir+ air spring with more volume than DebonAir absorbs smaller bumps even better and at the same time stands higher in the suspension travel35 mm stanchion tube diameter for a good ratio of stiffness and low weightwith Maxima Plush Dynamic Suspension Lube for low friction and good durabilitycrown adjusttorque cap dropouts for increased stiffnesswith screw-on torque cap adapters for simplified use with standard end capscompatible with retrofittable pressure relief valves for adjusting the air pressure in the immersion tubes to the environment (not included)also suitable for e-bikesfork crown outer diameter: 59 mmModels:140 mm / 1.5 tapered / 15 x 110 mm / 37 mm: Travel:140 mmOffset:37 mmAxle to Crown:532 mmModel ID:FS-LYRK-ULT-D1Manufacturer Number:00.4020.693.005 140 mm / 1.5 tapered / 15 x 110 mm / 44 mm: Travel:140 mmOffset:44 mmAxle to Crown:532 mmModel ID:FS-LYRK-ULT-D1Manufacturer Number:00.4020.693.002 150 mm / 1.5 tapered / 15 x 110 mm / 37 mm: Travel:150 mmOffset:37 mmAxle to Crown:542 mmModel ID:FS-LYRK-ULT-D1Manufacturer Number:00.4020.693.004 150 mm / 1.5 tapered / 15 x 110 mm / 44 mm: Travel:150 mmOffset:44 mmAxle to Crown:542 mmModel ID:FS-LYRK-ULT-D1Manufacturer Number:00.4020.693.001 160 mm / 1.5 tapered / 15 x 110 mm / 37 mm: Travel:160 mmOffset:37 mmAxle to Crown:552 mmModel ID:FS-LYRK-ULT-D1Manufacturer Number:00.4020.693.003 160 mm / 1.5 tapered / 15 x 110 mm / 44 mm: Travel:160 mmOffset:44 mmAxle to Crown:552 mmModel ID:FS-LYRK-ULT-D1Manufacturer Number:00.4020.693.000Contents:1 x 1 x RockShox Maxle Stealth thru-axle1 x RockShox fender2 x RockShox bottomless tokens1 x star nut2 x RockShox end cap adapters2 x bolts Manufacturer: SRAM LLC 1000 W. Fulton Market 4th Floor Chicago IL 60607 USA info@sram.com Distributor: SRAM Europe Sales and Services B.V. Paasbosweg 16 3862 ZS Nijkerk Netherlands info@sram.com
