Productomschrijving

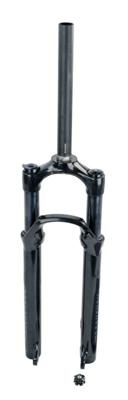

Product Description Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance. Specifications:Application:Cross CountryWheel Size:27.5" (650B)Suspension Type:airTravel:100 mm, 120 mm, 130 mmSteerer Tube:1 1/8" , 1 1/8" - 1.5" taperedAxle Type:quick release (9 x 100 mm), thru-axle(15 x 100 mm)Brake Mount:disc PM6 (direct mount 160 mm)Technical Information:Offset:42 mmSteerer Tube Length:265 mmSteerer Tube Diameter (Stem):28.6 mmSteerer Tube Diameter (Crown Race):30 mm (1 1/8" ), 40 mm (1 1/8" - 1.5" tapered)Axle to Crown:486 mm (100 mm), 506 mm (120 mm), 520 mm (130 mm)Over Locknut Dimension:100 mmStanchion Tube Diameter:32 mmSteerer Tube Material:AluminiumCrown Material:AluminiumStanchion Tube Material:steelLower Tube Material:magnesiumAdjustment Options:Compression:low-speed to lockRebound:yesSuspension Stiffness:air pressure adjustRemote:noTravel Adjustment:noApproved For:Tyre Size (max.):27.5 x 2.5"Note:For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 6 mm measured from the fork crown.Rotor Size (max.):220 mmFeatures:Motion Control damping with adjustment from low speed compression to lockcrown adjustexternal rebound adjustmentTechnology:Solo Air™: Solo Air is like a Buddhist monk. The enlightened design allows the positive and negative air chambers of your suspension fork to be filled with air at the same time using only one Schrader valve. So there is a perfect balance between them, like Yin and Yang. For a comfortable and predictable ride, you can adjust the easiest suspension fork on the market in seconds. Motion Control™: Imagine riding on the moon. Gentle hills, crushed rock blasted out of craters. Crater. Unfortunately, you can't ride on the moon. But even on earth there is much inhospitable terrain. But we have gravity, which means you need suspension that can handle climbs and descents equally well. With Motion Control damping technology, exactly that is possible. You can't ride the moon, but with Motion Control you can make gravity yours. Models:100 mm / 1 1/8 / 9 x 100 mm / 42 mm: Travel:100 mmSteerer Tube:1 1/8"Steerer Tube Diameter (Stem):28.6 mmOffset:42 mmBrake Mount:disc PM6 (direct mount 160 mm)Axle Type:quick release (9 x 100 mm)Model ID:FS-RCNS-RL-D1Manufacturer Number:00.4020.557.003 120 mm / 1 1/8 / 9 x 100 mm / 42 mm: Travel:120 mmSteerer Tube:1 1/8"Steerer Tube Diameter (Stem):28.6 mmOffset:42 mmBrake Mount:disc PM6 (direct mount 160 mm)Axle Type:quick release (9 x 100 mm)Model ID:FS-RCNS-RL-D1Manufacturer Number:00.4020.557.004 100 mm / 1.5 tapered / 9 x 100 mm / 42 mm: Travel:100 mmSteerer Tube:1 1/8" - 1.5" taperedSteerer Tube Diameter (Stem):28.6 mmOffset:42 mmBrake Mount:disc PM6 (direct mount 160 mm)Axle Type:quick release (9 x 100 mm)Model ID:FS-RCNS-RL-D1Manufacturer Number:00.4020.557.006 120 mm / 1.5 tapered / 9 x 100 mm / 42 mm: Travel:120 mmSteerer Tube:1 1/8" - 1.5" taperedSteerer Tube Diameter (Stem):28.6 mmOffset:42 mmBrake Mount:disc PM6 (direct mount 160 mm)Axle Type:quick release (9 x 100 mm)Model ID:FS-RCNS-RL-D1Manufacturer Number:00.4020.557.007 100 mm / 1.5 tapered / 15 x 100 mm / 42 mm: Travel:100 mmSteerer Tube:1 1/8" - 1.5" taperedSteerer Tube Diameter (Stem):28.6 mmOffset:42 mmBrake Mount:disc PM6 (direct mount 160 mm)Axle Type:thru-axle (15 x 100 mm)Model ID:FS-RCNS-RL-D1Manufacturer Number:00.4020.557.008 120 mm / 1.5 tapered / 15 x 100 mm / 42 mm: Travel:120 mmSteerer Tube:1 1/8" - 1.5" taperedSteerer Tube Diameter (Stem):28.6 mmOffset:42 mmBrake Mount:disc PM6 (direct mount 160 mm)Axle Type:thru-axle (15 x 100 mm)Model ID:FS-RCNS-RL-D1Manufacturer Number:00.4020.557.009 130 mm / 1.5 tapered / 15 x 100 mm / 42 mm: Travel:130 mmSteerer Tube:1 1/8" - 1.5" taperedSteerer Tube Diameter (Stem):28.6 mmOffset:42 mmBrake Mount:disc PM6 (direct mount 160 mm)Axle Type:thru-axle (15 x 100 mm)Model ID:FS-RCNS-RL-D1Manufacturer Number:00.4020.557.010Contents:1 x RockShox Recon Silver RL Solo Air suspension fork1 x RockShox Maxle Stealth thru-axle (15 x 100 mm only)1 x star nut Manufacturer: SRAM LLC 1000 W. Fulton Market 4th Floor Chicago IL 60607 USA info@sram.com Distributor: SRAM Europe Sales and Services B.V. Paasbosweg 16 3862 ZS Nijkerk Netherlands info@sram.com Rockshox Artikelnummer: 723170 EAN-code: 710845845048Leveranciersnummer: 00.4020.557.003
