Productomschrijving

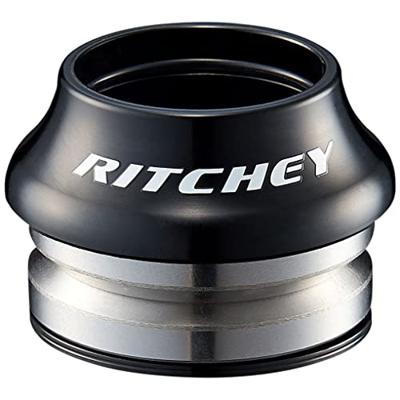

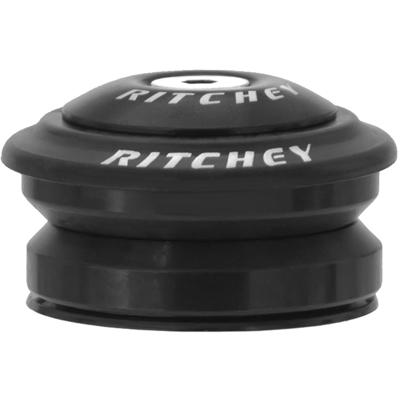

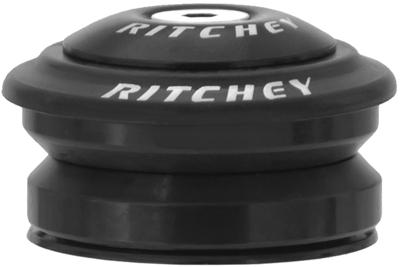

Voor fietsen met geïntegreerde headsets (zoals de Ritchey Road Logic en Swiss Cross) steekt de Comp Integrated IS Headset boven alle andere uit. De Comp heeft semi-cartridge lagers van hoge kwaliteit.
Artikelnummer33332817001EAN796941331302MerkenRitcheyLagerhoek binnen onderlager (°)45Binnendiameter onderlager (mm)30.5Binnendiameter bovenlager (mm)30.5Buitendiameter onderlager (mm)41.8Buitendiameter bovenlager (mm)41.8IntegratiemethodeDrop in (Integrated)Balhoofd gedeelteSetBalhoofdmaat1 1/8 InchBinnendiameter balhoofdbuis onder (mm)42Binnendiameter balhoofdbuis boven (mm)42Lagerhoek binnen bovenlager (°)45MateriaalStaalLagerhoek buiten onderlager (°)45Lagerhoek buiten bovenlager (°)45Vorkbuisdiameter onder (mm)30Vorkbuisdiameter boven (mm)28.6TypeLOGIC ZERO Product Description Use:for 1 1/8" upper and lower head tubes combined with standard 1 1/8" forks.Specifications:Application:Cross CountryTop Bearing:1 1/8"Bottom Bearing:1 1/8"Steerer Tube:1 1/8"Design:integrated (IS)Technical Information:Bearings:semi-cartridge bearings (loose balls)Top Outer Diameter:42 mmTop Inner Diameter:28.6 mmBottom Outer Diameter:42 mmBottom Inner Diameter:30 mmTop Cap:5 mmFeatures:Series: CompBearing Angle: 45°Standardized Headset Identification System (S.H.I.S.):In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined. Nomenclature:EC:Bearings contained within headset cups that are located outside of the frame (External Cup)ZS:Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack)IS:Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)Manufacturer Number:33-247-580 Contents:2 x Ritchey Comp drop-in bearings1 x bearing cover1 x top cap with bolt and star nut1 x compression ring1 x crown race Weight: black | 1 1/8" | IS42/28,6 - IS42/30: 130 g Manufacturer: Ritchey Design Inc. 575 Old County Road San Carlos CA 94070 USA info@ritcheylogic.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
