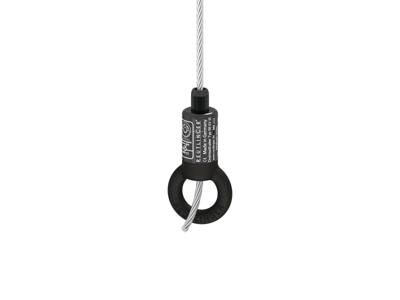

REUTLINGER Cable Glider Type 66 SVIII Ring-Integral

0
Certified cable holderCable holders can be used for easily suspending static workloads on attachment ropes. No tools are required. The load can be hung at any position and height and easily be re-positioned.The REUTLINGER cable holders are the only system certified by two independant certification bodies. This cable holder boasts of a TUV certifica...

Verkopers met dit product

Verkoper
Bezorging
Prijs
ST-shop.nl logo
ST-shop.nl
1-3 dagen
niet bekend
88,65

Anderen bekeken ook

REUTLINGER Cable Glider Type 66 SVIII Ring-Integral
REUTLINGER Cable Glider Type 66 SVIII Ring-Integral
Certified cable holderCable holders can be used for easily suspending static workloads on attachment ropes. No tools are required. The load can be hung at any position and height and easily be re-positioned.The REUTLINGER cable holders are the only system certified by two independant certification bodies. This cable holder boasts of a TUV certificate and a German BGV C1 certificate and can be used in entertainment technology.TÃV GS and BGV C1 - double-tested and double-certifiedREUTLINGER® grippers type 50 SV III, type 66 SV III and type 80 SV III are not only certified as safe (GS) by the German TÃV, they have also been licensed for use within the scope of standard DGUV Regulation 17 (BGV C1).The DGUV Test certificate authorises these grippers for use within the scope of the accident prevention regulations issued by the German employers' liability insurance associations in respect of staging and production facilities.The test seal of the DGUV is conferred only after extensive examini…
88,65
REUTLINGER Cable Glider Type 50SVIII-ZW M12i bk
REUTLINGER Cable Glider Type 50SVIII-ZW M12i bk
Certified cable holderCable holders can be used for easily suspending static workloads on attachment ropes. No tools are required. The load can be hung at any position and height and easily be re-positioned.The REUTLINGER cable holders are the only system certified by two independant certification bodies. This cable holder boasts of a TUV certificate and a German BGV C1 certificate and can be used in entertainment technology.TÃV GS and BGV C1 - double-tested and double-certifiedREUTLINGER® grippers type 50 SV III, type 66 SV III and type 80 SV III are not only certified as safe (GS) by the German TÃV, they have also been licensed for use within the scope of standard DGUV Regulation 17 (BGV C1).The DGUV Test certificate authorises these grippers for use within the scope of the accident prevention regulations issued by the German employers' liability insurance associations in respect of staging and production facilities.The test seal of the DGUV is conferred only after extensive examini…
62,39
ALUTRUSS TRILOCK E-GL33 1000 3-way Cross Beam
ALUTRUSS TRILOCK E-GL33 1000 3-way Cross Beam
TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.Please note: this truss system must never be combined with other systems!This system is mainly designed for …
193,75
ALUTRUSS TRILOCK E-GL33 1500 3-way Cross Beam
ALUTRUSS TRILOCK E-GL33 1500 3-way Cross Beam
TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.Please note: this truss system must never be combined with other systems!This system is mainly designed for …
236,25
ALUTRUSS TRILOCK E-GL33 500 3-way Cross Beam
ALUTRUSS TRILOCK E-GL33 500 3-way Cross Beam
TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.This system is mainly designed for intense use in stage installations, fair installations, event installatio…
168,75
ALUTRUSS TRILOCK E-GL33 290 3-way Cross Beam
ALUTRUSS TRILOCK E-GL33 290 3-way Cross Beam
TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.This system is mainly designed for intense use in stage installations, fair installations, event installatio…
168,75
ALUTRUSS TRILOCK E-GL33 210 3-way Cross Beam
ALUTRUSS TRILOCK E-GL33 210 3-way Cross Beam
TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.This system is mainly designed for intense use in stage installations, fair installations, event installatio…
161,25
Gigabyte GP-UD850GM PG5W Ultra Duruble GOLD PSU, ATX, 850 W, Fully Modular, 120mm, PCIe Gen5, White
Gigabyte GP-UD850GM PG5W Ultra Duruble GOLD PSU, ATX, 850 W, Fully Modular, 120mm, PCIe Gen5, White
Support PCIe Gen 5.0 graphics cardsThe UD750GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 450 watts of power to the graphics card.Support Intel ATX 3.0 standardThe UD750GM PCIE 5.0 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.ULTRA DURABLEInherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can…
120,80

Klanten-reviews van REUTLINGER Cable Glider Type 66 SVIII Ring-Integral

Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

Meer over REUTLINGER Cable Glider Type 66 SVIII Ring-Integral

Productomschrijving

Certified cable holderCable holders can be used for easily suspending static workloads on attachment ropes. No tools are required. The load can be hung at any position and height and easily be re-positioned.The REUTLINGER cable holders are the only system certified by two independant certification bodies. This cable holder boasts of a TUV certificate and a German BGV C1 certificate and can be used in entertainment technology.TÃV GS and BGV C1 - double-tested and double-certifiedREUTLINGER® grippers type 50 SV III, type 66 SV III and type 80 SV III are not only certified as safe (GS) by the German TÃV, they have also been licensed for use within the scope of standard DGUV Regulation 17 (BGV C1).The DGUV Test certificate authorises these grippers for use within the scope of the accident prevention regulations issued by the German employers' liability insurance associations in respect of staging and production facilities.The test seal of the DGUV is conferred only after extensive examining of all load applications. Further testing simulated most anticipated mis-applications.REUTLINGER® gripper ranges 50, 66 and 80 are the only load-bearing devices certified by the DGUV for use in mobile production facilities.

Cable glider, up to 150 kg work load

  • For rope diameters 6 to 6.35 mm
  • 6-ball mechanism
  • With eyering DIN 582 M12 black zinc plated C15E
  • Please note: Cable gliders must not be used for dynamic loads. Always use at least 2 cable gliders for every suspended object.
  • M16 thread
  • Made in Germany
  • BG certified
  • TÃV/GS certified
  • For further information about this product, please refer to the Data Sheet under "Downloads"


For rope diameter:6 mm - 6.35 mm
Work load:6,35 mm: 150 kg
6 mm: 135 kg
Color:Black
Ring diameter:Outside: 63 mm
Inside: 35 mm
Thread:M16 thread x 16 mm
Dimensions:Length: 11 cm
Diameter: Ã 3,40 cm
Weight:800 g

Productinformatie

    Productspecificaties

    Artikelnummer(s)
    EAN
    4026397596052
