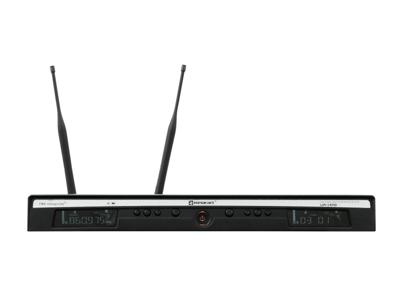

RELACART UR-260D 2-channel UHF Receiver 823-832 + 863-865 MHz

RELACART UR-260D 2-channel UHF Receiver 823-832 + 863-865 MHz

0
The UR-260D is a dual-channel true diversity UHF system with a host of innovative features. In addition to automatic frequency scanning for interference-free transmission, one also finds an intelligent feedback suppression system. With MagicEQ, various sound characteristics of world-known microphone capsules can be emulated or created yourself. The...

Snel naar

  • Prijzen

    PrijzenProductomschrijvingProductspecificaties

    Alle aanbiedingen van dit product

    Verkoper
    Bezorging
    Prijs
    ST-shop.nl logo
    ST-shop.nl
    1-3 dagen
    niet bekend
    €393,75

    Klanten-reviews van RELACART UR-260D 2-channel UHF Receiver 823-832 + 863-865 MHz

    Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

    Meer over RELACART UR-260D 2-channel UHF Receiver 823-832 + 863-865 MHz

    Productomschrijving

    The UR-260D is a dual-channel true diversity UHF system with a host of innovative features. In addition to automatic frequency scanning for interference-free transmission, one also finds an intelligent feedback suppression system. With MagicEQ, various sound characteristics of world-known microphone capsules can be emulated or created yourself. The presets can be changed from a computer via software - even during live operation.

    Diversity wireless receiver with DSP for microphone modeling and PC software

    • 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
    • Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
    • Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
    • Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
    • DSP programming and management via Ethernet port and intuitively operated PC software
    • High-quality antenna diversity reception
    • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
    • Pilot frequency squelch technology delete wireless RF interference
    • Automatic frequency scan (AFS) finds interference-free channels
    • Easy and error-free synchronization between receiver and transmitter via infrared signal
    • Multiple units can be linked with network cables
    • Lock function for prevents undesired changes to settings
    • 2 detachable BNC antennas allow for use with the R-14D antenna divider
    • Rugged metal housing
    • Digital signal processor 96kHz, 24 bit
    • Multicolor LCD display
    • UHF 863 - 865 MHz License-free and approved in Europe
    • UHF 823 - 832 MHz License-free and approved in large parts of Europe
    • Operating range up to 80m
    • The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
    • Desktop console housing
    • (19") 48.3 cm rack installation possible 1 U
    • Up to 9 transmitters can be operated in parallel without interference

    Package contents

    • 1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 2 x mounting bracket, 6 x screw, 1 x user manual, 1 x declaration of conformity


    Type:Receiver
    Power supply:100-240 V AC, 50/60 Hz
    12 V DC 1 A
    Power consumption:Max. 9 W
    Power connection:Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
    Number of channels:2
    Frequency range:45 - 18000 Hz
    S/N ratio:>100 dB
    THD:

    Productinformatie

      Productspecificaties

      Artikelnummer(s)
      EAN
      4026397537048
