Productomschrijving

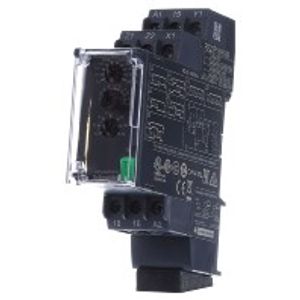

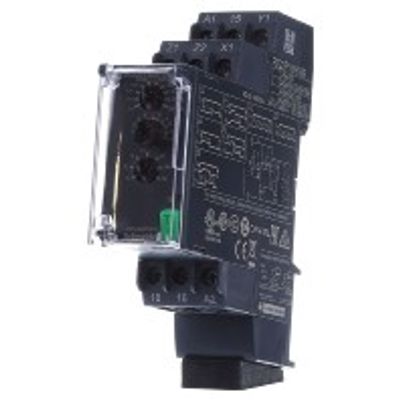

EAN: 3606480792434 - manufacturer-number: RE22R1MYMR - Timer relay 0,05...1080000s AC 24...240V Type of electric connection Screw connection, Function delay-on energization, Function delay on de-energization, Function floating contact on energization, Function flashing, starting with pause, fixed time, Function flashing, starting with pulse, fixed time, Rated control supply voltage Us at AC 50HZ 24 ... 240V, Rated control supply voltage Us at AC 60HZ 24 ... 240V, Rated control supply voltage Us at DC 24 ... 240V, Voltage type for actuating AC/DC, Nominal current 8A, Time range 0,05 ... 1080000s, Number of outputs, undelayed, normally closed contact 0, Number of outputs, undelayed, normally open contact 0, Number of outputs, undelayed, change-over contact 0, Number of outputs, delayed, normally closed contact 1, Number of outputs, delayed, normally open contact 1, Number of outputs, delayed, change-over contact 1, Suitable for DIN rail (top hat rail) mounting, Width 22,5mm, Height 90mm, Depth 73mm - RE22R1MYMR
