Productomschrijving

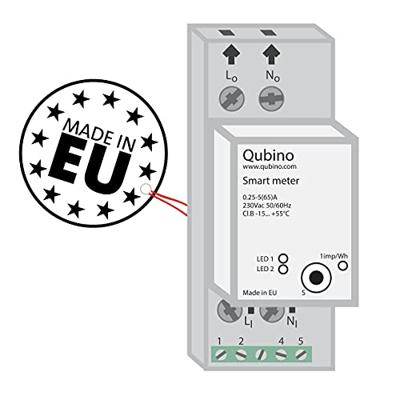

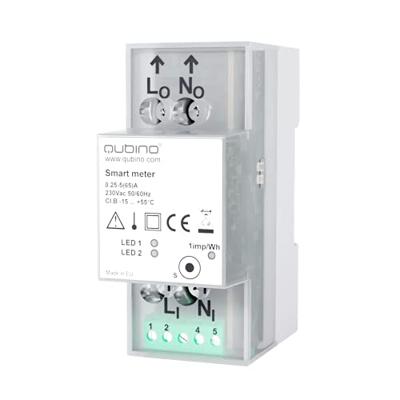

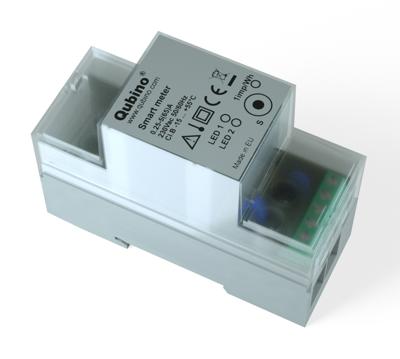

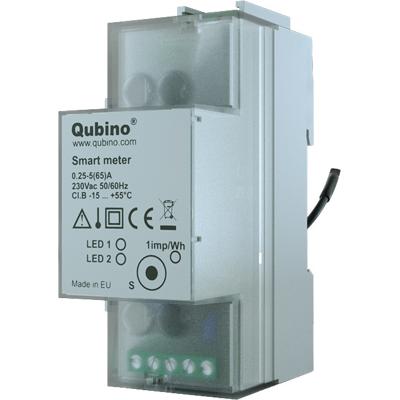

Qubino Zwave smart meter
Verbruiksmeting, zichtbaar in je control station (Fibaro HCL3, HC3, Home Assiatant, Homey, etc).
De perfecte Z-Wave Smart Energy Meter (1 fase).
Het meet het energieverbruik van je netwerk.
Rapporteert in W en kWh, V, A, var, kWh import, kWh export, kVAh en kvarh.
Handleiding
Main terminals (LI, NI, Lo, No)
Contacts capacity:
1.5 ... 16 (25) mm2
Connection screws:
M5
Max torque:
3.5 Nm (PZ2)
Optional terminals (1,2,4,5)
Contact capacity:
0.05 ... 1 (2.5) mm2
Screws:
M3
Max torque:
0.6 Nm
Measuring input:
Type (connection):
single phase (1b)
Reference current (Iref):
5 A
Maximum current (Imax):
65 A
Minimum current (Imin):
0.25 A
Starting current:
20 mA
Voltage (Un):
230 V (±20%)
Power consumption at Un:
< 2 W
Nominal frequency (fn):
50 and 60 Hz
Accuracy:
Active energy and power:
Standard EN 62053-21:
class 1
Standard EN 50470-3:
class B
Reactive energy:
Standard EN 62053-23:
class 2
Optical communication:
Type:
IR - used to control BICOM432-40-WM1
Input (1):
Rated voltage:
230 V (± 20%)
Input resistance:
450 kOhm
Safety:
Indoor Meter:
yes
Degree of pollution:
2
Protection class:
II
AC voltage test:
4 kV
Installation Category:
300 Vrms cat. III
Standard:
EN 50470
Ambient conditions and EMC:
According standards for indoor active energy Meters.
Temperature and climatic condition according to EN 62052 11
Ambient conditions and Safety:
According standards for indoor active energy Meters.
Temperature and climatic condition according to EN 62052 11
Dust/water protection:
IP20
Operating temperature:
-15 ... 55°C
Storage temperature:
-40 ... 70°C
Enclosure material:
Self-extinguish
complying UL94 V
Indoor Meter:
yes
Degree of pollution:
2
AC voltage test:
4 kV
Distance:
up to 30 m indoors (depending on building materials)
Weight (with packaging):
150g (170g)
Frequency range:
868.4 MHz, Z-Wave
Installation:
DIN rail 35mm
Dimensions (W x H x D):
36 x 90 x 64mm
Package dimensions (W x H x D):
40 x 95 x 80mm
Colour:
RAL 7035
