Productomschrijving
Qubic System - QS-CH2

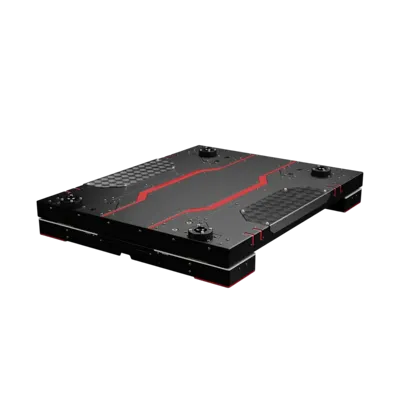

QS-CH2 2DoF Motion Platform: The Ultimate Simulation of Traction Loss and Oversteer
The QS-CH2 2DoF Motion Platform offers a revolutionary simulation experience by simulating the most important forces you experience as a driver in a racing vehicle, such as traction loss, oversteer, acceleration and deceleration. Based on the world's fastest linear actuators from Qubic System, this platform provides a level of realistic vehicle feedback that immerses you in the race, making it ideal for rally, drift, GT - and F1 simulations.
Key Features
Qubic System Linear Actuators: The platform uses the world's fastest linear actuators for exceptional precision and speed in the feedback you receive receives. This ensures precise and responsive movements, from losing grip to the acceleration and braking forces you feel during a race.
2DoF Movement: With two additional axes of freedom, the QS-CH2 offers an extended range of motion, including SURGE strong> (forward/backward) and YAW- (rotate left/right) movements. This makes the platform perfect for simulating oversteer and traction loss.
Immersive Traction Loss Effects: The platform responds to traction loss, from slip of the rear wheels to slacking of the front wheels< /strong>, giving you an authentic experience of what happens to the car in situations of oversteer or understeer.
Accelerated and Decelerated Movements: The QS-CH2 platform moves the cockpit to simulate powerful g-forces on the driver's body , such as when braking too hard or accelerating too hard. The platform responds by physically moving the driver into position, providing a more dynamic and realistic driving experience.
Special Software - QubicManager: The included QubicManager software provides full motion customization and motion post-processing, and allows you able to use predefined profiles for a quick plug-and-play experience. The platform supports more than 80 racing and flight simulations, including popular titles such as rFactor 2, iRacing, and Assetto Corsa >.
Flexible Mounting Options: The QS-CH2 platform can be used in conjunction with the QS-CH1 motion cockpit system and is designed to easily integrate into a variety of setups, including rally and drift rigs.
Durable and Robust: Made of rugged materials and with advanced technology, the QS-CH2 is built to withstand the toughest simulation conditions with a platform weight of 160 kg and a gross moving load of 300 kg.
Applications
The QS-CH2 Motion Platform is designed to provide the most immersive feeling of loss of traction, teaching you how to effectively handle vehicles that are at the limit of grip move. This platform is ideal for simulations where loss of grip and acceleration/deceleration are crucial, such as:
Rally simulations: Feel the change in grip on different surfaces, from mud to gravel, and learn how to maintain control of a vehicle in challenging conditions. p>
Drifting Simulations: Simulate powerful oversteer balance and learn the precision control needed to drift a vehicle in a controlled manner.
GT and F1 Simulations: Improve your racing skills by simulating braking and acceleration at high speeds > and the physical forces you experience in a Formula 1 car or GT vehicle.
Sim Racing and Driving Tutorials: The QS-CH2 platform provides an excellent training environment for both beginner and advanced sim racers, as it helps you develop a deeper connection with the mechanics of the vehicle.
Technical Specifications
Architecture: 2DoF (two axes of freedom)
Platform weight: 160 kg | 352.74 lb
Gross Moving Load: 300 kg | 661.39 lb
Rise (SURGE): -50 mm, +50 mm
Yaw (YAW): -7.2°, +7.2°
Dimensions:
- Total length: 1328.95 mm | 52.32 inches
- Total width: 1072.5 mm | 42.22 inches
- Total height: 213 mm | 8.39 inches
Power requirements: 115/230 VAC, single phase
Connection: USB
What's Included
- QS-CH2 Motion Platform
- QubicManager Software Download
- USB and Power Cables
- Assembly parts: Nuts, bolts and necessary mounting materials
- Transport wheels for easy movement
- User manual
Note: The QS-MC6 (motion platform controller) must be purchased separately to fully utilize the system.
Conclusion
The QS-CH2 Motion Platform provides excellent vehicle feedback by simulating oversteer and traction loss, which is essential for improving your driving skills in a wide range of racing simulations. This platform offers unparalleled accuracy and realistic experiences, making it a must-have for serious sim racers who want to take their experience to the next level. Designed to integrate easily into existing setups, it offers flexibility, precision and immersive feedback that allow you to feel what's happening with the car happens in critical situations on the asphalt. Please note: this product is custom-made and cannot be cancelled.
