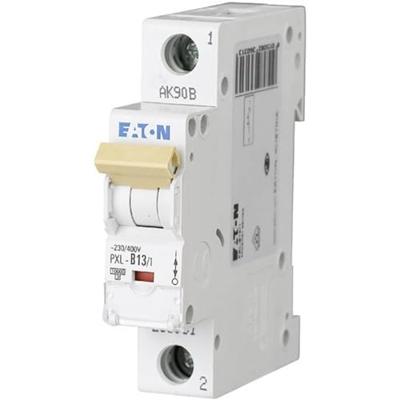

PXL-B13/1 - Miniature circuit breaker 1-p B13A PXL-B13/1

Snel naar

Prijzen

PrijzenProductomschrijvingProductspecificaties

Meer over PXL-B13/1 - Miniature circuit breaker 1-p B13A PXL-B13/1

Productomschrijving

EAN: 4015082360313 - manufacturer-number: PXL-B13/1 - Miniature circuit breaker 1-p B13A Release characteristic B, Number of poles (total) 1, Number of protected poles 1, Rated current 13A, Rated voltage 230V, Rated insulation voltage Ui 440V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10kA, Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0kA, Voltage type AC, Frequency 50 ... 60Hz, Current limiting class 3, Over voltage category 3, Pollution degree 2, Additional equipment possible, Width in number of modular spacings 1, Built-in depth 70,5mm, Degree of protection (IP) IP20, Ambient temperature during operating -25 ... 55°C, Connectable conductor cross section multi-wired 1 ... 25mm², Connectable conductor cross section solid-core 1 ... 25mm² - PXL-B13/1

Productinformatie

Productspecificaties

Artikelnummer(s)

Energie

Kenmerken

Eisen aan de omgeving

Gewicht en omvang

PXL-B13/1 - Miniature circuit breaker 1-p B13A PXL-B13/1

Verkopers met dit product

Klanten-reviews van PXL-B13/1 - Miniature circuit breaker 1-p B13A PXL-B13/1

Meer over PXL-B13/1 - Miniature circuit breaker 1-p B13A PXL-B13/1

Productomschrijving

Productinformatie

Productspecificaties

Verken gerelateerde categorieën
