Neutrik NTR-NYS323 Connector Din Male Metaal Zilver

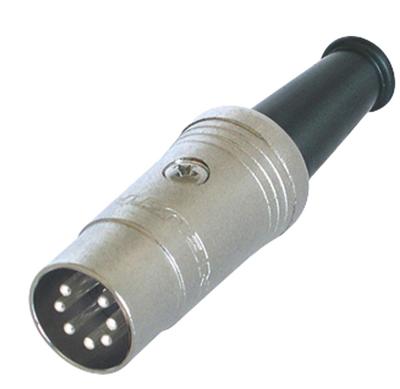

5-polige metalen DIN plug (180°)Zilveren contacten

3-polige XLR-socket.Nikkel behuizing en zilvere contacten.

Nikkel behuizing met zilveren contacten en soldeer aansluiting.

3-polige XLR-socket.Nikkel behuizing en zilvere contacten.The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Product Connector Type: XLRGender: femaleElectrical Capacitance between contacts: ≤ 4 pFContact resistance: ≤ 3 mΩDielectric strength: 1, 5 kVdcInsulation resistance: > 2 GΩ (initial)Insulation resistance: > 1 GΩ (after damp heat test)Rated current per contact: 16 ARated voltage: 50 VMechanical Cable O. D.: 3. 5 - 8. 0 mmInsertion force: ≤ 20 NWithdrawal force: ≤ 20 NLifetime: > 1000 mating cyclesWire size: max. 2. 5 mm²Wire size: max. 14 AWGWiring: Solder contactsLocking device: Latch lockMaterial Boot: PolyuretanBushing: Polyamide (PA 6 15% GR)Contact plating: 2 µm AgContacts: Bronze (CuSn8)Insert: Polyamide (PA 6. 6 30 % GR)Locking element: Zinc diecast (ZnAl4 Cu1)Shell: Zinc diecast …

3-polige XLR plug.Nikkel behuizing en zilvere contacten.The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. TECHNICAL DATA. Product Connector: Type XLRGender: maleElectrical.Number of contacts: 3Contact resistance: ≤ 3 mInsulation resistance initial: > 2 GAfter damp heat test: > 1 GDielectric strength: 1500 V dcRated current: 16 AAWG: 2. 5 mm²/14 AWGCapacitance between contacts: ≤ 4 pFMechanical Lifetime: >1000 cyclesInsertion / withdrawal force: ≤ 20 NCable O. D. range: 3. 5 mm - 8. 0 mmMaterials.Shell: ZnAl4 Cu1, gal Ni over Cu platingInsert: PA 6. 6 30% GR (glass reinforced)Contacts: CuZn39 Pb3Contact surface: gal 2 µm AgStrain-relief clamp: POMAntikink bushing: PUREnvironmental Flammability: UL 94 HBStandard compliance: IEC 61076-2-103Protection class: IP 40Solderability: Complies with IEC 6…

3-polige XLR plug.Nikkel behuizing en zilvere contacten.The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. 3 pole right angle female cable connector, nickel housing, silver contacts.Features & Benefits.Extra slim right-angle connector5 selectable cable outlet positionsUnique cage design of female contact for low contact resistance and high integrityFemale contact incorporates a solder barrier to prevent solder running into the contact mating areaFemale connector with improved solid metal latch which is larger and easier to handleAdditional ground spring contacts for better shell ground continuityImproved chuck type strain relief provides higher pull-out force and makes assembly easier and fasterBoot with polyurethane gland gives high protection to cable bending stressesColoured rings and boots avai…

Neutrik metalen 6.35mm stereo jack kontra chassisdeel.

DIN mannelijke kabelconnector, 7-polig, verzilverde contacten

Professionele cinch plug met vergulde contacten. Voorzien van trekontlasting en een gekleurde markeerring.

Professionele cinch plug met vergulde contacten. Voorzien van trekontlasting en een gekleurde markeerring.
