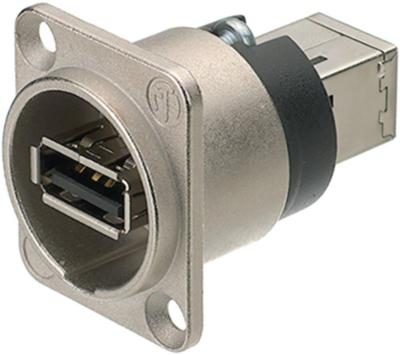

Neutrik NTR-NAUSB-W Usb Device Socket

USB Device Socket

USB Device SocketA: 13 mmCAT Catalogue Description 2: USB A jack - USB B jackKleur behuizing: black

Reversible USB adapter (type A and B)USB2.0 adaptor A-B (B-A)Reversible insert offering type A or B on front or rear endIdeal for audio networking and integration of digital equipments into audio systemsStandard D-shape housingConstruction:Mounting versionWeight:30 g

Van IT-apparatuur tot MP3-spelers, de USB-aansluiting is niet meer weg te denken. Neutrik brengt daarom de Neutrik NA USB-W op de markt. Dit robuuste chassisdeel is voor de meest veeleisende situaties! De USB-W is een 'gender changer'. Hiermee zorgt u voor een USB A naar USB B aansluiting, of net andersom, aangezien de insert om te keren is. De D-type behuizing maakt het chassisdeel eenvoudig te monteren in diverse systemen.

USB-aansluitingen zijn onmisbaar, tal van apparatuur is afhankelijk van deze aansluiting. Daarom ook brengt Neutrik dit stevige NA USB-W B USB A naar B verloop chassisdeel op de markt. Dit duurzame USB 2.0 verloopadapter chassisdeel dient als 'gender changer' voor uw USB-aansluiting. De USB-W B heeft een verloop van USB A naar USB B. Of net andersom, aangezien de insert naar keuze aan de voor- of achterzijde te plaatsen is. Bovendien heeft deze connector een stevige, nikkelen D-type behuizing.

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.Aansluiting: Schroef TerminalConnectordesign - kant A: Recht met VergrendelingGender: Male

Locking female cable connector, screw terminals. The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.Geslacht connector: Female

1. You now have all the options you need for recording your favorite movies TV shows or life video from an analog video source onto your computer 2. And edit them burn DVD disc convert them and send them to your iPod PSP or 3GP mobile phone so you can watch them any where and any time 3. If you use a scart interface please connect equipment following below picture and set the switch to be Output 4. You maybe have to buy Video and Audio cable and S-Video cable to connect the USB video capture with your analog video device you need to buy the Scart Video / Audio adapter if the output of your video source device is scart type 5. The following devices can be used as analog video sources: video recorder DVD player Video camera Set-top box Game player and any device that provides an analog video signal

3-polige XLR-socket.Nikkel behuizing en zilvere contacten.The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Product Connector Type: XLRGender: femaleElectrical Capacitance between contacts: ≤ 4 pFContact resistance: ≤ 3 mΩDielectric strength: 1, 5 kVdcInsulation resistance: > 2 GΩ (initial)Insulation resistance: > 1 GΩ (after damp heat test)Rated current per contact: 16 ARated voltage: 50 VMechanical Cable O. D.: 3. 5 - 8. 0 mmInsertion force: ≤ 20 NWithdrawal force: ≤ 20 NLifetime: > 1000 mating cyclesWire size: max. 2. 5 mm²Wire size: max. 14 AWGWiring: Solder contactsLocking device: Latch lockMaterial Boot: PolyuretanBushing: Polyamide (PA 6 15% GR)Contact plating: 2 µm AgContacts: Bronze (CuSn8)Insert: Polyamide (PA 6. 6 30 % GR)Locking element: Zinc diecast (ZnAl4 Cu1)Shell: Zinc diecast …
