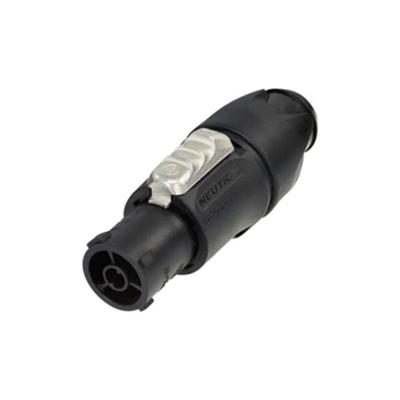

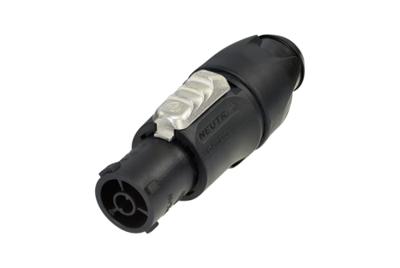

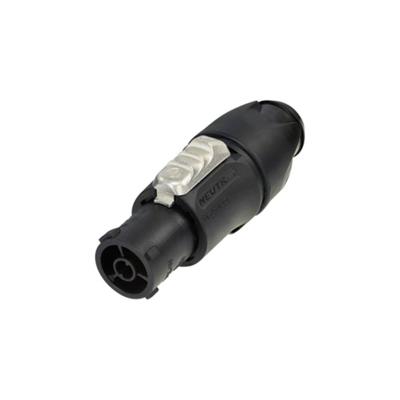

Neutrik NTR-NAC3FX-W-T Connector Female

Neutrik NTR-NAC3FX-W-T Connector Female

0
Locking female cable connector, screw terminals. The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capa...

Snel naar

  • Prijzen

    PrijzenProductomschrijvingProductspecificaties

    Verkopers met dit product

    Verkoper
    Bezorging
    Prijs
    Onlinehandelshuis.nl logo
    Onlinehandelshuis.nl
    Niet Leverbaar
    €6,95
    €19,95

    Anderen bekeken ook

    Neutrik Ntr-nc3 mrx Connector
    Neutrik Ntr-nc3 mrx Connector
    3-polige XLR plug.Nikkel behuizing en zilvere contacten.The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. 3 pole right angle female cable connector, nickel housing, silver contacts.Features & Benefits.Extra slim right-angle connector5 selectable cable outlet positionsUnique cage design of female contact for low contact resistance and high integrityFemale contact incorporates a solder barrier to prevent solder running into the contact mating areaFemale connector with improved solid metal latch which is larger and easier to handleAdditional ground spring contacts for better shell ground continuityImproved chuck type strain relief provides higher pull-out force and makes assembly easier and fasterBoot with polyurethane gland gives high protection to cable bending stressesColoured rings and boots avai…
    19,95
    Nieuw
    Neutrik NAC3PX-TRUE1 Mains Chassis IN-Outlet CBC Top Airtight Kabeldeel voor powerCON TRUE1
    Neutrik NAC3PX-TRUE1 Mains Chassis IN-Outlet CBC Top Airtight Kabeldeel voor powerCON TRUE1
    De Neutrik NAC3PX-TRUE1 is een professioneel kabeldeel uit de powerCON TRUE1-serie. Dankzij de vergrendelbare constructie, de breaking capacity (CBC) en de IP65/IP66/IP67-classificatie biedt deze connector maximale betrouwbaarheid, zelfs in de zwaarste omstandigheden. Hij is ontworpen voor vaste netvoedingsverbindingen waarbij veiligheid en duurzaamheid van cruciaal belang zijn. Ideaal voor outdoor toepassingen, touring, evenementen en industriële installaties.
    10,90
    Nieuw
    Asetek SimSports Invicta QR Adapter - USB-A
    Asetek SimSports Invicta QR Adapter - USB-A
    Asetek SimSports Invicta QR Adapter - USB-ANote: This version of the Quick Release Adapter does not include extension tubes like the previous version. Unleash the possibilities with the Invicta™ Quick Release Adapter! Many sim racers have personal preferences for their steering wheel so instead of locking you into a specific eco-system, we offer our Quick Release Adapter, meaning you can use your favorite steering wheel with your Asetek SimSports® Wheelbase.Changing steering wheels has never been easier. Once you have finished installing the Quick Release Adapter, you simply press a paddle to detach the wheel from the wheelbase, and it will effortlessly be in your hands. As easy as shifting gears!The Invicta™ Quick Release Adapter comes with a 25 mm tube.Unlock the Full Potential of Your Sim Racing SetupOne of the key aspects that makes sim racing special is the ability to customize your setup to fit your unique needs. Every racer is different, and the perfect setup is a personal journ…
    116,95
    Neutrik NAC3M-TRUE1-S Mains Cable Con. Inlet CBC Top S Stroomconnector male voor powerCON TRUE1
    Neutrik NAC3M-TRUE1-S Mains Cable Con. Inlet CBC Top S Stroomconnector male voor powerCON TRUE1
    De Neutrik NAC3M-TRUE1-S is een stevige male stroomconnector uit de powerCON TRUE1-serie, speciaal ontworpen voor betrouwbare verbindingen in zware omstandigheden. Dankzij het unieke twist-lock systeem en de trekontlasting is deze connector perfect voor professionele toepassingen. Met ondersteuning voor koppelen onder belasting (CBC) en een IP65/IP67-classificatie biedt hij optimale veiligheid en duurzaamheid. Geschikt voor kabels met een buitendiameter van 6 tot 12 mm.
    7,15
    Neutrik Ntr-nc3 fxx Connector Zilver
    Neutrik Ntr-nc3 fxx Connector Zilver
    3-polige XLR-socket.Nikkel behuizing en zilvere contacten.The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Product Connector Type: XLRGender: femaleElectrical Capacitance between contacts: ≤ 4 pFContact resistance: ≤ 3 mΩDielectric strength: 1, 5 kVdcInsulation resistance: > 2 GΩ (initial)Insulation resistance: > 1 GΩ (after damp heat test)Rated current per contact: 16 ARated voltage: 50 VMechanical Cable O. D.: 3. 5 - 8. 0 mmInsertion force: ≤ 20 NWithdrawal force: ≤ 20 NLifetime: > 1000 mating cyclesWire size: max. 2. 5 mm²Wire size: max. 14 AWGWiring: Solder contactsLocking device: Latch lockMaterial Boot: PolyuretanBushing: Polyamide (PA 6 15% GR)Contact plating: 2 µm AgContacts: Bronze (CuSn8)Insert: Polyamide (PA 6. 6 30 % GR)Locking element: Zinc diecast (ZnAl4 Cu1)Shell: Zinc diecast …
    14,95
    Neutrik Ntr-nc4 fx Connector
    Neutrik Ntr-nc4 fx Connector
    4-delig XLR-kabeldeel female, nikkel behuizing en zilvere contacten.The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables. 4 pole female cable connector with Nickel housing and silver contacts.Features & Benefits.Rugged zinc diecast shell, long lasting and durableChuck type strain relief system for secure clamping of cablesBoot with rubber gland gives high protection against bending stressesColoured rings and boots available for coding and markingUL recognized components
    16,95
    Neutrik Ntr-np3 rx Connector
    Neutrik Ntr-np3 rx Connector
    Neutrik 6. 35 mm haakse, metalen stereo jack plug.The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14. 5 mm meets the most recent requirements for highest density jackfields (15. 88 mm jack pitch)The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks. 3 pole right-angle 1/4" professional phone plug, nickel contacts, nickel shell Features & Benefits.All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protectionExtra slim 1/4" plug for highest packing densityRobust diecast shell in stylish designImproved chuck type strain relief for reliab…
    16,95

    Klanten-reviews van Neutrik NTR-NAC3FX-W-T Connector Female

    Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

    Meer over Neutrik NTR-NAC3FX-W-T Connector Female

    Productomschrijving

    Locking female cable connector, screw terminals. The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.Geslacht connector: Female

    Productinformatie

      Productspecificaties

      Artikelnummer(s)
      EAN
      7613187011832
      Kenmerken
      Aansluiting(en)
      CuSn0.2
      Kleur van het product
      Zwart, Wit
      Materiaal
      Brons, Polyacetaal-hars, Polyamide
      AWG draad omvang
      12
      Aansluitbehuizing
      Ja
      Internationale veiligheidscode (IP)
      IP65
      Kern afmeting
      2,5 mm²
      Diëlektrische sterkte
      4 V
      Contactweerstand
      3 mΩ
      Levensduur (cycli)
      5000
      Spanning
      250 V
      Stroom
      16 A
      Materiaal behuizing
      Polyoxymethyleen (POM)
      Vergrendelingselement materiaal
      Zink
      Certificering
      UL498, ENEC, IEC
      Gewicht en omvang
      Outer diameter
      1,2 cm
      Eisen aan de omgeving
      Bedrijfstemperatuur (T-T)
      -30 - 80 °C
      Inhoud van de verpakking
      Aantal per verpakking
      1 stuk(s)
