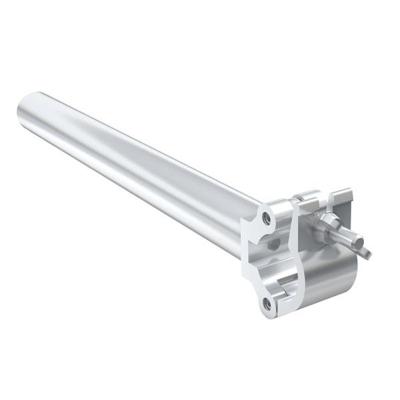

MILOS Milos Arm Coupler 500mm Aluminum, zilver

Aluminum, zilver

Aluminum, zwart

Mounting coupler for 50 mm tube, maximum load WLL 500 kgMaximum load BGV C1 (8-fold):250 kgMaximum load WLL (4-fold):500 kgTube diameter sector:45 - 50 mmMaterial:AluminumColor:SilverMounting screw:M10Dimensions:Length: 14,50 cmWidth: 3 cmDepth: 11,50 cmWeight:480 g

Mounting coupler for 50 mm tube, maximum load WLL 150 kgMaximum load BGV C1 (8-fold):75 kgMaximum load WLL (4-fold):150 kgTube diameter sector:48 - 50 mmMaterial:AluminumColor:SilverMounting screw:M10Dimensions:Length: 10 cmWidth: 3 cmDepth: 9 cmWeight:160 g

Mounting coupler for 35 mm tube, maximum load WLL 200 kgHook for installing projectors, lighting effects etc. via a truss systemWith countersunk mounting screw M10x35 mmMounting of a half cone M10 is possible since the mounting screw can be turned as required (countersunk head)Maximum load BGV C1 (8-fold):100 kgMaximum load WLL (4-fold):200 kgTube diameter sector:32 - 35 mmMaterial:AluminumColor:SilverMounting screw:M10Dimensions:Length: 5,10 cmWidth: 3,50 cmDepth: 8 cmWeight:200 g

Pro-30 Square F Truss

Swivel double coupler for 50 mm tube, maximum load WLL 500 kgMaximum load BGV C1 (8-fold):250 kgMaximum load WLL (4-fold):500 kgTube diameter sector:45 - 50 mmMaterial:AluminumColor:SilverDimensions:Length: 25 cmWidth: 3 cmDepth: 11,50 cmWeight:890 g

Mounting coupler for 50 mm tube, maximum load WLL 800 kgMaximum load BGV C1 (8-fold):400 kgMaximum load WLL (4-fold):800 kgTube diameter sector:45 - 50 mmMaterial:AluminumColor:SilverMounting screw:M10Dimensions:Length: 11 cmWidth: 5 cmDepth: 11,50 cmWeight:710 g

Swivel double coupler for 50 mm tube, maximum load WLL 150 kgPackage contents1 x device, 1 x user manualMaximum load BGV C1 (8-fold):75 kgMaximum load WLL (4-fold):150 kgTube diameter sector:48 - 50 mmMaterial:AluminumColor:SilverDimensions:Length: 15 cmWidth: 3 cmDepth: 8 cmWeight:240 g

Coupler for 50 mm tube with Quicklock 6082 conical connector, maximum load WLL 200 kgWith conical connector matching the Quicklock truss systems Singlelock, Bilock, Trilock 6082, Quadlock 6082Maximum load BGV C1 (8-fold):100 kgMaximum load WLL (4-fold):200 kgTube diameter sector:45 - 50 mmMaterial:AluminumColor:SilverDimensions:Length: 12 cmWidth: 3 cmDepth: 3 cmWeight:440 g
