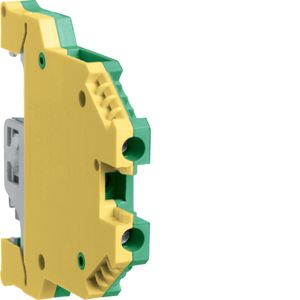

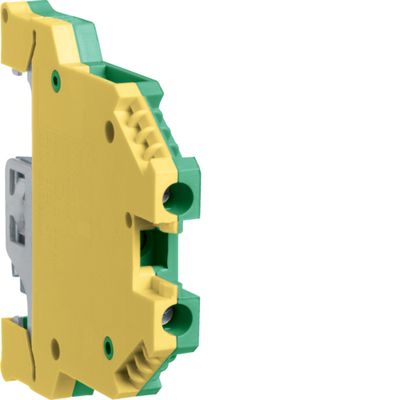

KXB04E - Ground terminal block 1-p 6mm KXB04E

Snel naar

Prijzen

PrijzenProductomschrijvingProductspecificaties

Meer over KXB04E - Ground terminal block 1-p 6mm KXB04E

Productomschrijving

EAN: 3250613941819 - manufacturer-number: KXB04E - Ground terminal block 1-p 6mm Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 4mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 1, Number of clamp positions per level 2, Mounting method Other, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 6mm, Height at lowest possible mounting height 48,5mm, Length 51mm, Colour Green/yellow - KXB04E

Productspecificaties

Artikelnummer(s)

Kenmerken

Gewicht en omvang

Inhoud van de verpakking

KXB04E - Ground terminal block 1-p 6mm KXB04E
