Productomschrijving

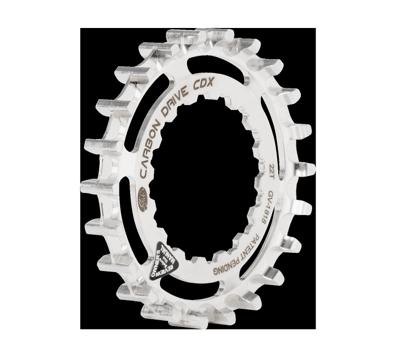

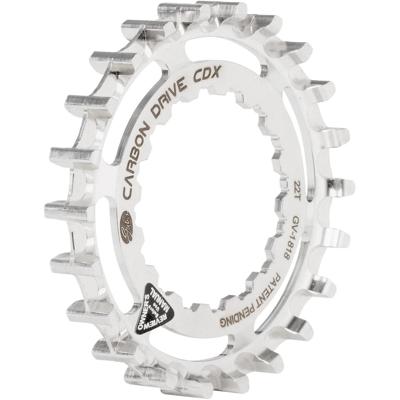

Gates CDX voortandwiel 22 tands Bosch GEN2. Wordt geleverd inclusief spacerkit en moer Product Description This front CDX sprocket from Gates for touring and off-road use is compatible with Bosch 2nd generation e-bike mid-drive motors. It is made of stainless steel. Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance. Specifications:Application:City & Touring, All Mountain, Cross CountryMount:Direct Mount on Bosch Gen2 mid-drive motorTeeth:22 T, 24 T, 26 T, 28 TTechnical Information:Width of the teeth:11 mmTooth division:11 mmMounting web thickness:2.0 mmOffset:2.5 mm (assembly surface), 1.5 mm (centre line)Material:stainless steelCompatibility:Bosch Gen2 Performance LineBosch Gen2 Performance Line CXFeatures:CDX level: high-end version for high loads and best performancesuitable for mud, sand, snow and ice as well as all roadsmiddle guide groove (CenterTrack)high mileagerobust stainless steelNote from the manufacturer:Only use mounting material supplied by Gates, not the Bosch O-ring. Technology:Gates Carbon Drive System The main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, e-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past. Clean: No lubricant means no accumulation of grease and dirt. Smooth and silent operation: no metal-to-metal contact of the chains. Light: The whole system weighs less than a standard bicycle chain. No elongation: Belt does not need to be re-tensioned or replaced. Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants. Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt. Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against using one to modify a conventional framework. Models:22 tooth: Outer Diameter:75.3 mmManufacturer Number:CT1122BMN-K 24 tooth: Outer Diameter:82.3 mmManufacturer Number:CT1124BMN-K 26 tooth: Outer Diameter:89.3 mmManufacturer Number:CT1126BMN-K 28 tooth: Outer Diameter:96.3 mmManufacturer Number:CT1128BMN-KContents:1 x Gates CDX Bosch Gen2 front belt drive sprocket1 x lockring3 x spacersOrder Together:Strap Wrench for dismantling the belt drive sprocket Manufacturer: Universal Transmissions GmbH Walkmühlenstraße 195 99974 Mühlhausen Germany shop@carbondrive.net
