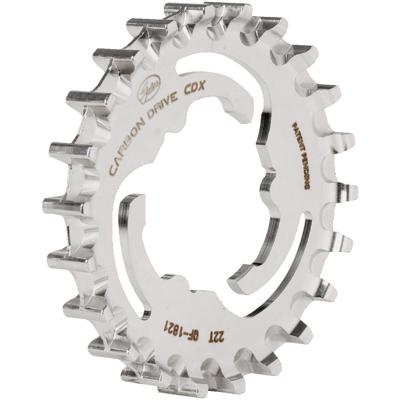

Product Description This Gates CDX rear belt drive sprocket for touring use has three SureFit™ cams, fits a belt line of 43.7 mm and is compatible with Shimano Alfine and Nexus mechanical gear hubs and SRAM internally geared hubs. The sprocket is made of stainless steel. Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance. Specifications:Application:City & TouringTeeth:22 t, 24 t, 26 tMount:3-cam (3-lobe)Technical Information:Width of the teeth:11 mmTooth division:11 mmBelt line:43.7 mmMounting web thickness:2.9 mmOffset:0.9 mm (assembly surface), -0.55 mm (centre line)Material:stainless steelCompatibility:Shimano Alfine 8-speed SG-S7001-8Shimano Alfine 11-speed SG-S700Shimano Nexus 3-speed coaster brake SG-3C41Shimano Nexus 3-speed disc SG-3D55Shimano Nexus 7-speed roller brake SG-C3000-7RShimano Nexus 7-speed coaster brake SG-C3000-7CShimano Nexus 7-speed disc SG-C3001-7DShimano Nexus 8-speed roller brake, rim brake SG-C6011-8R, SG-C6001-8R, SG-C6011-8V, SG-C6001-8VShimano Nexus 8-speed coaster brake SG-C6001-8CShimano Nexus 8-speed disc SG-C6001-8D, SG-C6001-8CDSRAM AutomatixSRAM i-Motion 3Note from the manufacturer:For 22 t sprockets in all combinations with mechanical Nexus 8-speed internally geared hubs, a Right hand dust cap B for Inter-8 should be ordered as well. Features:CDX level: high-end version for high loads and best performancesuitable for mud, sand, snow and ice as well as all roadsmiddle guide groove (CenterTrack)high mileagerobust stainless steelSureFit pinion design: flexible interface for 3-cam flat, greater mounting toleranceTechnology:Gates Carbon Drive System The main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, E-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past. Clean: No lubricant means no accumulation of grease and dirt. Smooth and silent operation: no metal-to-metal contact of the chains. Light: The whole system weighs less than a standard bicycle chain. No elongation: Belt does not need to be re-tensioned or replaced. Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants. Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt. Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against using one to modify a conventional framework. Models:22 tooth: Outer Diameter:75.3 mmManufacturer Number:CT1122XMN 24 tooth: Outer Diameter:82.3 mmManufacturer Number:CT1124XMN 26 tooth: Outer Diameter:89.3 mmManufacturer Number:CT1126XMNContents:1 x Gates CDX SureFit 3-Cam Rear Belt Drive SprocketOrder Together:SureFit assembly tool Manufacturer: Universal Transmissions GmbH Walkmühlenstraße 195 99974 Mühlhausen Germany shop@carbondrive.net
