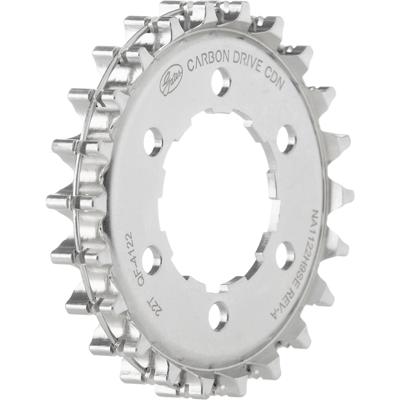

Gates sprocket cdn 22t 6b 9-spline hub wire flange

Product Description This Gates CDX rear belt drive sprocket for touring and off-road use has a 9-spline mount with nine grooves that is narrower than the standard version. This makes it suitable for very short Shimano HG freehub bodies (e.g. DX). The sprocket also has six bolt holes, making it compatible with 6-bolt disc brakes. Specifications:Application:All Mountain, City & TouringTeeth:22 TMount:9-SplineTechnical Information:Width of the teeth:11 mmTooth division:11 mmMounting web thickness:2.35 mmOffset:2.1 mm (assembly surface), 2.25 mm (centre line)Outer Diameter:75.3 mmMaterial:stainless steelCompatibility:Shimano HG standard freehub body with nine notches (Shimano MTB, Shimano Road)6-bolt disc brake systemsFeatures:CDX: high-end version for high loads and best performancesuitable for mud, sand, snow and ice as well as all roadsmiddle guide groove (CenterTrack)high mileagerobust stainless steelnarrower attachment than standard version, therefore also suitable for very short free…

Product Description This Gates CDX rear belt drive sprocket for touring and off-road use has a 9-spline mount with nine grooves that is narrower than the standard version. This makes it suitable for very short Shimano HG freehub bodies (e.g. DX). The sprocket also has six bolt holes, making it compatible with 6-bolt disc brakes. Specifications:Application:All Mountain, City & TouringTeeth:22 TMount:9-SplineTechnical Information:Width of the teeth:11 mmTooth division:11 mmMounting web thickness:2.35 mmOffset:2.1 mm (assembly surface), 2.25 mm (centre line)Outer Diameter:75.3 mmMaterial:stainless steelCompatibility:Shimano HG standard freehub body with nine notches (Shimano MTB, Shimano Road)6-bolt disc brake systemsFeatures:CDX: high-end version for high loads and best performancesuitable for mud, sand, snow and ice as well as all roadsmiddle guide groove (CenterTrack)high mileagerobust stainless steelnarrower attachment than standard version, therefore also suitable for very short free…

Gates CDX tandwiel achter 28 tands 9-Spline Shimano. Buitendiameter 96,3mm.

Gates CDX tandwiel achter 30 tands 9-Spline Shimano. Buitendiameter 103,3mm.
