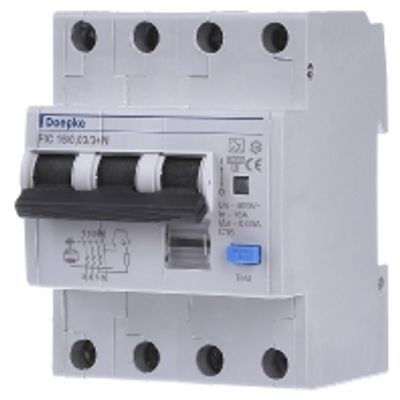

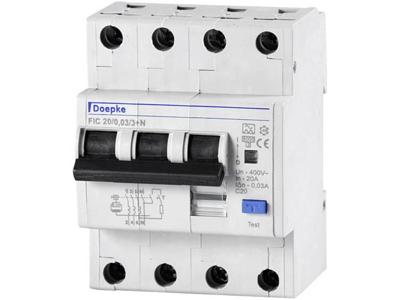

FIC 16/0,03/3+N-A - Earth leakage circuit breaker C16/0,03A FIC 16/0,03/3+N-A

Snel naar

Prijzen

PrijzenProductomschrijvingProductspecificaties

105,48

Meer over FIC 16/0,03/3+N-A - Earth leakage circuit breaker C16/0,03A FIC 16/0,03/3+N-A

Productomschrijving

EAN: 4014712149175 - manufacturer-number: FIC16/0,03/3+N-A - Earth leakage circuit breaker C16/0,03A Number of poles (total) 4, Number of protected poles 3, Rated voltage 400V, Rated insulation voltage Ui 440V, Rated current 16A, Rated fault current 0,03A, Leakage current type A, Current limiting class 3, Rated short-circuit breaking capacity acc. EN 61009 6kA, Rated short-circuit breaking capacity IEC 60947-2 6kA, Rated short-circuit breaking capacity Icn acc. EN 61009-1 6kA, Disconnection characteristic Undelayed, Voltage type AC, Frequency 50/60 Hz, Release characteristic C, Over voltage category 3, Pollution degree 2, Ambient temperature during operating -25 ... 40°C, Width in number of modular spacings 4, Built-in depth 68mm, Degree of protection (IP) IP20, Connectable conductor cross section solid-core 1 ... 35mm², Connectable conductor cross section multi-wired 1 ... 35mm² - FIC 16/0,03/3+N-A

Productspecificaties

Artikelnummer(s)

FIC 16/0,03/3+N-A - Earth leakage circuit breaker C16/0,03A FIC 16/0,03/3+N-A
