| Weight: | 20,86 kg |

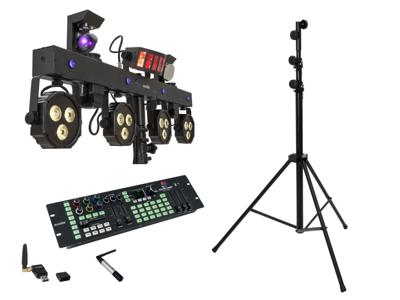

| EUROLITE LED KLS Scan Next FX Compact Light Set |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 115 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| Equipment: | Color wheel; gobo wheel with static gobos |
| Color generation: | Cold white (CW) |
| Color generation: | Color wheel with 8 dichroic filters plus open
Half colors selectable |
| DMX channels: | 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; IR remote control; sound to light via microphone; stand-alone; master/slave function; wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Housing color: | Black |
| Attachment system: | TV spigot à 28mm
2x mounting bracket |
| Display type: | OLED display |
| Dimensions: | Width: 1,1 m
Depth: 15,5 cm
Height: 43 cm |
| Weight: | 12,80 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Remote control |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Bar |
| LED type: | 4 x 1 W high-power ultra violet (UV) |
| Light effect |
| LED type: | 2 x 3 W R/G/B |
| Spotlight |
| LED type: | 3 x 7 W high-power 4in1 QCL RGB/WW (homogenous color mix) |
| Beam angle: | 15° |
| Beam angle (1/2 peak): | 15° |
| Beam angle (1/10 peak): | 28° |
| Illuminance in Lux (lx): | Red (R) 1m: 1022 lx, 3m: 125 lx, 6m: 33 lx
Green (G) 1m: 2448 lx, 3m: 285 lx, 6m: 75 lx
Blue (B) 1m: 395 lx, 3m: 47 lx, 6m: 13 lx
Warm white (WW) 1m: 1892 lx, 3m: 219 lx, 6m: 58 lx
All 1m: 4853 lx, 3m: 676 lx, 6m: 175 lx |
| Moving light |
| LED type: | 1 x 15 W cold white (CW) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| EUROLITE QuickDMX USB Wireless Transmitter/Receiver |
| Power supply: | 5 V DC |
| IP classification: | IP20 |
| Power connection: | Mains input via USB A (M) connectable version |
| DMX channels: | Input 512
Output 512 |
| DMX output: | 1 x USB, type A |
| Control: | DMX; QuickDMX; plug and play |
| Range: | Range up to 400m with line-of-sight |
| Carrier frequency: | 2,4 GHz |
| Parallel mode: | Max. 6 transmitter |
| RF power output: | 23 dBm |
| Modulation: | GFSK |
| Color: | Black |
| Dimensions: | Width: 8,6 cm
Depth: 4 cm
Height: 1,1 cm |
| Weight: | 10 g |
| EUROLITE QuickDMX Wireless Transmitter |
| Power supply: | 100-240 V AC, 50/60 Hz
5 V DC 1 A |
| IP classification: | IP20 |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) |
| Control: | QuickDMX; DMX; plug and play |
| Range: | Range up to 400m |
| Carrier frequency: | 2,4 GHz |
| Parallel mode: | Max. 6 transmitter |
| RF power output: | 19 dBm |
| Modulation: | GFSK |
| Color: | Silver |
| Dimensions: | Length: 21,2 cm
Diameter: Ã 1,8 cm |
| Weight: | 150 g |
| EUROLITE DMX LED Color Chief Controller |
| Power supply: | 100-240 V AC, 50/60 Hz
9 V DC 800 mA |
| Power consumption: | 7,2 W |
| IP classification: | IP20 |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: | Programmable 24 scenes/chases distributed over 1 page/s |
| DMX channels: | Output 240 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; sound to light via RCA (F) mounting version; sound to light via microphone |
| Housing color: | Black |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Type A |
| Color: | Black |
| PC connect: | , firmware can be updated |
| Housing design: | (19") 48.3 cm rack installation 3 U
Desktop console housing |
| Dimensions: | Width: 48,3 cm
Depth: 13,35 cm
Height: 8,5 cm |
| Weight: | 2,25 kg |
| Noise classification: | Class 0 (no noise at all) |
| EUROLITE STV-60-WOT EU Steel Stand black |
| Maximum carrying capacity: | 30 kg |
| Height: | Maximum: 320 cm
Minimum: 150 cm |
| Attachment system: | TV spigot à 28mm |
| Type (general stands): | Light stand/manual |
| Material: | Steel/magnesium |
| Color: | Black |
| Transport dimensions: | 1,26 m x 12 cm x 15 cm |
| Weight: | 5,65 kg |
