Productomschrijving

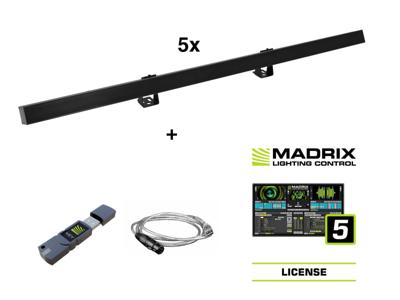

EUROLITE LED PR-100/32 Pixel DMX rail bk
DMX controlled pixel tube with RGB color mixing
- DMX and power terminals intelligently designed for easy wiring
- Front cover: black
- 96 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
32 segments controlled separately - Color blend stepless; color change adjustable; colors preset; Dimmer electronic
- 12 integrated show programs
- Direct color selection for 17 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; sound to light via microphone
- With a beam angle of 120°
- With mounting bracket
- 4 digit 7-segment LED display
- Silent operation
- Preprogrammed in Light Captain
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; stage; restaurants, bars and hotels
- Application possibility: Suspended; wall mounting
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord
MADRIX Software 5 License start
MADRIX 5 licence "start"
- Includes 1x MADRIX 5 License "start"
- Requires a valid, empty, and metallic MADRIX KEY
- Can transmit up to 1024 DMX channels
- Compatible with Win 7, Win 8, Win 10,
- Made in Germany
- Engineered in Germany
- For further information about this product, please refer to the Data Sheet under "Downloads"
MADRIX USB ONE DMX512 USB Interface
USB-DMX cable to send/receive DMX signals with MADRIX software
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via DMX
- Built with NEUTRIK connector
- The device can be connected via USB to the PC in connection with MADRIX software
- Compatible with Win 7, Win 8, Win 10,
- Made in Germany
- Engineered in Germany
- For application areas such as: Clubs/dancing school; installation; stage; restaurants, bars and hotels
MADRIX KEY
MADRIX 5 KEY - without license
- Includes an empty MADRIX KEY
- Requires a proper MADRIX 5 License to activate the features or output for the MADRIX 5 Software
- The device can be connected via USB to the PC
- Made in Germany
| Weight: | 10,22 kg |
| EUROLITE LED PR-100/32 Pixel DMX rail bk |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED type: | 96 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 3; 5; 8; 48; 96 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; sound to light via microphone |
| Preprogrammed in: | Light Captain |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Dimensions: | Length: 99,9 cm
Width: 5,95 cm
Height: 13,2 cm |
| Weight: | 2,01 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| MADRIX Software 5 License start |
| DMX channels: | Output 1024 |
| Weight: | 0 g |
| Operating system: | Win 7, Win 8, Win 10, |
| MADRIX USB ONE DMX512 USB Interface |
| Power supply: | 5 V DC 500 mA |
| Power connection: | Fixed power supply cord for USB A mains connection |
| DMX channels: | Input 512
Output 512 |
| DMX output: | 1 x 5-pin XLR (F) |
| Control: | DMX |
| USB port: | USB 2.0, type A |
| Use of brands: | Built with NEUTRIK connector |
| PC connect: | MADRIX software via USB |
| Weight: | 100 g |
| Operating system: | Win 7, Win 8, Win 10, |
| MADRIX KEY |
| Power connection: | Mains input via USB A (M) connectable version |
| USB port: | Type A |
| PC connect: | Via USB |
| Weight: | 70 g |
