Productomschrijving

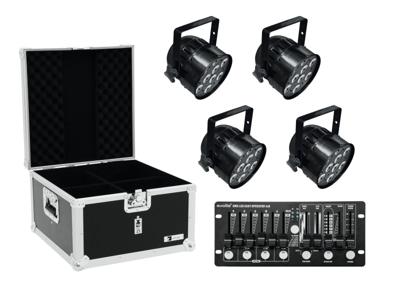

4x PAR-56 Spot with 9 x 10 W 6in1 LED including PRO flightcase and compact DMX controller
EUROLITE LED PAR-56 HCL Short bk
PAR-56 spot with 9 x 10 W 6in1 LED and RGBAW+UV color mixing
- 9 powerful LEDs 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
- Color change adjustable; Dimmer electronic; color blend stepless
- Strobe effect; UV effect
- The device is cooled by low-noise cooling fan
- Control via stand-alone; DMX; sound to light via microphone; IR remote control
- Flicker-free
- With a beam angle of 20°
- With mounting bracket
- 4 digit 7-segment LED display
- Available in various colors
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- For application areas such as: Clubs/dancing school; party room; stage; restaurants, bars and hotels
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x user manual
ROADINGER Flightcase EPS-56 4x PAR-56 Spot short
Trunk case
- With 4 Device compartments
- High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
- Interior with foam padding
- Aluminum profile frames 30mm with rounded edges
- 2 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 1 high-quality butterfly lock
- For further information about this product, please refer to the Data Sheet under "Downloads"
EUROLITE DMX LED EASY Operator 4x6
Compact DMX controller for 4 LED spotlights with up to 6 colors each
- DMX controller for standard LED spotlights
- Easy handling
- 4 fixtures with RGBAW+UV LEDs can be controlled individually or in combination
- DMX channels for red, green, blue, amber, white, UV and master
- Various modes for the DMX channel sequence selectable
- Manual control via 6 faders
- 2 faders for direct RGBW and A/UV mixing
- Adjustable strobe function
- Blackout function
- 8 integrated show programs
- Preprogrammed 8 scenes/chases
- Can transmit up to 28 DMX channels
- Control via DMX; sound to light via microphone; stand-alone
- Desktop console housing
- For application areas such as: Party room; mobile djs / entertainer; restaurants, bars and hotels
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter
| Weight: | 15,40 kg |
| EUROLITE LED PAR-56 HCL Short bk |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 75 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Fuse: | 5 x 20 mm, F 1 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 9 x 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix) |
| DMX channels: | 4; 6; 10 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 1 x low-noise cooling fan |
| Control: | Stand-alone; DMX; sound to light via microphone; IR remote control |
| Preprogrammed in: | Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Projection: | Flicker-free |
| Beam angle: | 20° |
| Beam angle (1/2 peak): | 20° |
| Beam angle (1/10 peak): | 38° |
| Housing color: | Black matte |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Aluminum casting |
| Dimensions: | Width: 20,5 cm
Depth: 17,5 cm
Height: 23 cm |
| Weight: | 1,60 kg |
| Photobiological safety: | Risk Group 0 |
| Mounting bracket |
| Diameter mounting holes: | 1 x Ã10mm; 1 x Ã8mm |
| Material: | Aluminum casting, 2,5 mm |
| Power cord |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 1,2 m |
| Remote control |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase EPS-56 4x PAR-56 Spot short |
| Maximum load: | 25 kg |
| Aluminum profile frames: | 30 mm |
| Case handle: | 2 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 1 pc/pcs |
| Material: | Birch multiplex, 7 mm |
| Color: | Dark brown, laminated |
| Compartment dimensions: | 22 cm x 22 cm x 24 cm |
| Inside dimensions: | 44 cm x 44 cm x 24 cm |
| Dimensions: | Width: 48,5 cm
Depth: 48,5 cm
Height: 31 cm |
| Weight: | 7,95 kg |
| EUROLITE DMX LED EASY Operator 4x6 |
| Power supply: | 100-240 V AC, 50/60 Hz
9 V DC 800 mA |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: | Preprogrammed 8 scenes/chases |
| DMX channels: | Output 28 |
| Control: | DMX; sound to light via microphone; stand-alone |
| Housing color: | Black |
| Color: | Black |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 25 cm
Depth: 11,5 cm
Height: 5,5 cm |
| Weight: | 1,04 kg |
| Noise classification: | Class 0 (no noise at all) |
