Productomschrijving

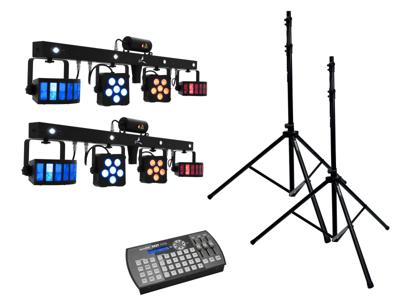

EUROLITE LED KLS Laser Bar PRO FX Light Set
Bar with 2 strong derbies and spots, white/UV strobe LEDs, laser (RG, 2M)
- Enhanced version with very high brightness and additional UV LEDs
- Compact lightweight
- Crossbar with integrated DMX control unit and stand sleeve
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating derbies for mirror ball effects
- When fog is used, this effect becomes especially attractive
- For application areas such as: Wedding/gala/events; mobile use; clubs/dancing school; mobile djs / entertainer; rental
- 39 integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; IR remote control; sound to light via microphone; wireless footswitch; master/slave function
- With mounting bracket
- Preprogrammed in EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- Laser; multi beam effect; flower effect; UV effect; strobe effect
- Application possibility: On stand
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight
- 6 powerful LEDs 6 W high-power 3in1 TCL RGB (homogenous color mix)
spots controlled separately - With a beam angle of 13°
light effect
- 6 powerful LEDs 2 W high-power R/G/B
spots controlled separately
bar
- 4 powerful LEDs 2 W high-power 2in1 BCL CW/UV (homogenous color mix)
LEDs controlled separately
Package contents
- 1 x device, 1 x power cord, 1 x user manual, 1 x declaration of conformity, 1 x remote control, 1 x foot control, 2 x knurled screw, 2 x washer, 2 x mounting bracket, 2 x battery, 1 x bag
EUROLITE EASY Show
Programmed DMX controller for over 200 spotlights from EUROLITE
- Easy-to-use DMX controller and DMX recorder
- Designed for DMX beginners with 200 programmed fixtures
- DMX recording function for your own projects, ideal for installations or rental companies
- Ideal for colored LED spotlights, KLS systems, moving lights and lighting effects
- No programming required, simply connect your spotlights and get started
- All spotlights can be freely combined to a show
- Data storage on USB flash drives
- A list of all preset devices is available at www.steinigke.de
- Program speed adjustable; color fade adjustable; Dimmer
- Strobe effect
- 24 integrated show programs
- Direct color selection for 12 preset colors
- Control via DMX; sound to light via microphone; QuickDMX via USB (optional)
- Desktop console housing
- Monochrome LCD display
- Preprogrammed 24 scenes/chases and 12 cues
- For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer; restaurants, bars and hotels; installation
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter, 2 x USB cable, 2 x mounting bracket, 4 x screw
OMNITRONIC M-4 Speaker-System Stand
Aluminum speaker stand, height adjustable 140-345 cm, maximum load 18 kg
- Durable aluminum version
- Tube diameter: Ã 35 mm
- Adjustable height
Package contents
| Weight: | 27,95 kg |
| EUROLITE LED KLS Laser Bar PRO FX Light Set |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 150 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, T 3,15 A |
| Lamp type: | LED lamp |
| DMX channels: | 3; 5; 10; 28 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; IR remote control; sound to light via microphone; wireless footswitch; master/slave function |
| Preprogrammed in: | EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Housing color: | Black |
| Attachment system: | 2x mounting bracket |
| Dimensions: | Width: 1,030 cm
Depth: 6,1 cm
Height: 38,7 cm |
| Weight: | 10,00 kg |
| Noise classification: | Class 2 (slight noise) |
| Power cord |
| Cable length: | 3 m |
| Remote control |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Foot control |
| Battery: | 1 x 9.0 V E block 6F22 zinc carbon included |
| Laser |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm
Green (G) 30 mW 532nm |
| Light effect |
| LED type: | 6 x 2 W high-power R/G/B |
| Flash rate: | 0 - 30 Hz |
| Spotlight |
| LED type: | 6 x 6 W high-power 3in1 TCL RGB (homogenous color mix) |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | 13° |
| Beam angle (1/10 peak): | 20° |
| Bar |
| LED type: | 4 x 2 W high-power 2in1 BCL CW/UV (homogenous color mix) |
| Flash rate: | 0 - 30 Hz |
| EUROLITE EASY Show |
| Power supply: | 100-240 V AC, 50/60 Hz
5 V DC 250 mA |
| Power consumption: | 1,25 W |
| IP classification: | IP20 |
| Power connection: | Mains input via USB C (W) mounting version power supply cord with AC adapter |
| Programs: | Preprogrammed 24 scenes/chases and 12 cues |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Control: | DMX; sound to light via microphone; QuickDMX via USB (optional) |
| Housing color: | Black |
| Display type: | Monochrome LCD display |
| Available storage media: | USB devices |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 28,0 cm
Depth: 14,5 cm
Height: 6,0 cm |
| Weight: | 1,35 kg |
| Noise classification: | Class 0 (no noise at all) |
| OMNITRONIC M-4 Speaker-System Stand |
| Maximum carrying capacity: | 18 kg |
| Tube diameter sector: | 38 - 35 mm |
| Height: | Maximum: 345 cm
Minimum: 140 cm
Adjustable in 10 steps with locking pin |
| Attachment system: | Ã 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Aluminum |
| Color: | Black |
| Transport dimensions: | 1,4 m x 13,5 cm |
| Weight: | 3,30 kg |
