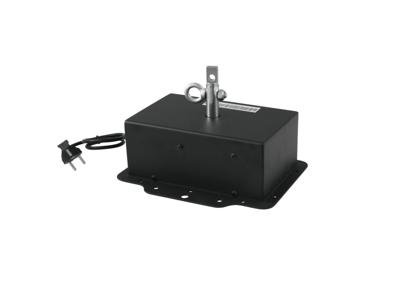

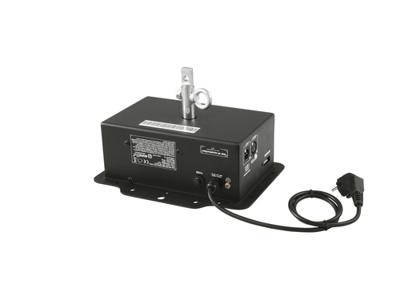

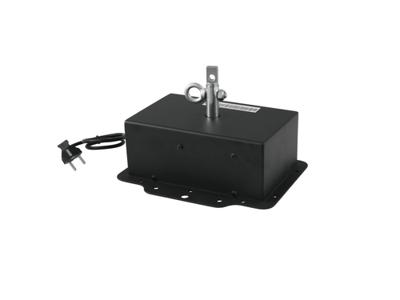

EUROLITE MD-3030 DMX Safety Rotary Motor

0
This solid mirror ball motor can carry a load of up to 40 kg. This equals a mirror ball of approximately 100 cm, 12-fold safety margin included. The motor has an adjustable speed. This creates either peaceful or more rapid effects.To make the most of these effects, you can add a pin spot to illuminate the mirror ball. The rotating direction and spe...

Verkopers met dit product

Verkoper
Bezorging
Prijs
ST-shop.nl logo
ST-shop.nl
1-3 dagen
niet bekend
211,25
dutchdjequipment.nl logo
dutchdjequipment.nl
2-5 werkdagen
gratis
199,-

Anderen bekeken ook

Nieuw
EUROLITE MD-3030 DMX Safety Rotary Motor
EUROLITE MD-3030 DMX Safety Rotary Motor
This solid mirror ball motor can carry a load of up to 40 kg. This equals a mirror ball of approximately 100 cm, 12-fold safety margin included. The motor has an adjustable speed. This creates either peaceful or more rapid effects.To make the most of these effects, you can add a pin spot to illuminate the mirror ball. The rotating direction and speed can be controlled via the DIP switches or any commercial DMX controller. For bigger light installations, a master-slave operation with multiple devices working in sync is also possible; no external control required.The motor is equipped with a patented mechanical drop protection against unintentional loosening of the axis as well as the required second eyelet for the attachment of the safety chain.All Eurolite safety motors comply with the safety norm DIN EN ISO 12100 and relevant accident prevention regulations. Each production charge is subject to strict quality control which makes the motor suitable for discotheques and other public eve…
211,25
Nieuw
EUROLITE MD-2030 DMX Safety Rotary Motor
EUROLITE MD-2030 DMX Safety Rotary Motor
This solid mirror ball motor can carry a load of up to 10 kg. This equals a mirror ball of approximately 50 cm, 12-fold safety margin included. The motor has an adjustable speed. This creates either peaceful or more rapid effects.To make the most of these effects, you can add a pin spot to illuminate the mirror ball. The rotating direction and speed can be controlled via the DIP switches or any commercial DMX controller. For bigger light installations, a master-slave operation with multiple devices working in sync is also possible, no external control required.The motor is equipped with a patented mechanical drop protection against unintentional loosening of the axis as well as the required second eyelet for the attachment of the safety chain.All Eurolite safety motors comply with the safety norm DIN EN ISO 12100 and relevant accident prevention regulations. Each production charge is subject to strict quality control which makes the motor suitable for discotheques and other public even…
156,25
Nieuw
EUROLITE MD-3010 Safety Rotary Motor
EUROLITE MD-3010 Safety Rotary Motor
This solid mirror ball motor can carry a load of up to 40 kg. This equals a mirror ball of approximately 100 cm, 12-fold safety margin included. The motor has a speed of 1 RPM (rotations per minute). This creates a peaceful effect, especially when you choose for a pin spot to shine on the mirror ball. The motor is equipped with a patented mechanical drop protection against unintentional loosening of the axis as well as the required second eyelet for the attachment of the safety chain.All Eurolite safety motors comply with the safety norm DIN EN ISO 12100 and relevant accident prevention regulations. Each production charge is subject to strict quality control which makes the motor suitable for discotheques and other public events.Mirror ball motor for mirror balls up to 100 cm diameterThe maximum load always means the mirror ball weight including chains and the fixation material2 chains and 4 quick links must be ordered separately1 rotation per minuteThe motor always has to be installed…
173,75
Nieuw
EUROLITE MD-3050 Safety Rotary Motor
EUROLITE MD-3050 Safety Rotary Motor
This solid mirror ball motor with a continuous shaft can carry a load of up to 150 kg. This equals a mirror ball of approximately 150 cm, 12-fold safety margin included. The motor has a speed of 1 RPM (rotations per minute). This creates a peaceful effect, especially when you choose for a pin spot to shine on the mirror ball. The motor is equipped with a patented mechanical drop protection against unintentional loosening of the axis as well as the required second eyelet for the attachment of the safety chain.All Eurolite safety motors comply with the safety norm DIN EN ISO 12100 and relevant accident prevention regulations. Each production charge is subject to strict quality control which makes the motor suitable for discotheques and other public events. The MD-3050 is delivered ready to use with safety plug and power cord.Patented mirror ball motor for mirror balls up to 150 cmThe maximum load always means the mirror ball weight including chains and the fixation material2 chains and 4…
248,75
Nieuw
EUROLITE MD-2010 Safety Rotary Motor
EUROLITE MD-2010 Safety Rotary Motor
This solid mirror ball motor can carry a load of up to 10 kg. This equals a mirror ball of approximately 50 cm, 12-fold safety margin included. The motor has a speed of 1 RPM (rotations per minute). This creates a peaceful effect, especially when you choose for a pin spot to shine on the mirror ball. The motor is equipped with a patented mechanical drop protection against unintentional loosening of the axis as well as the required second eyelet for the attachment of the safety chain.All Eurolite safety motors comply with the safety norm DIN EN ISO 12100 and relevant accident prevention regulations. Each production charge is subject to strict quality control which makes the motor suitable for discotheques and other public events. The MD-2010 is delivered with open wires that allow you to mount a fitting plug yourself.Mirror ball motor for mirror balls up to 50 cm diameterThe maximum load always means the mirror ball weight including chains and the fixation material2 chains and 4 quick l…
49,89
Nieuw
EUROLITE MD-1030 Rotary Motor w/o Plug
EUROLITE MD-1030 Rotary Motor w/o Plug
This solid mirror ball motor can carry a load of up to 3 kg. This equals a mirror ball of approximately 30 cm, safety margins included. The motor has a slow ration speed of 3 RPM. This creates calm, relaxing effects, especially when you choose for a pin spot to shine on the mirror ball. This product is available with or without plug. The mounting material must be ordered separately.Motor for mirror balls up to 30 cm with 3 RPMThe maximum load always means the mirror ball weight including chains and the fixation materialThe motor always has to be installed with a secondary safety attachmentBefore taking into operation for the first time, the installation has to be approved by an expertSuitable for a mirror ball with a diameter of up to 30 cmFor application areas such as: Clubs/dancing schoolPackage contents1 x motor, 1 x chain, 3 x mounting material, 3 x screw, 1 x user manualPower supply:230 V AC, 50 HzPower consumption:4 WIP classification:IP20Protection class:Protection class IPower …
14,89

Klanten-reviews van EUROLITE MD-3030 DMX Safety Rotary Motor

Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

Meer over EUROLITE MD-3030 DMX Safety Rotary Motor

Productomschrijving

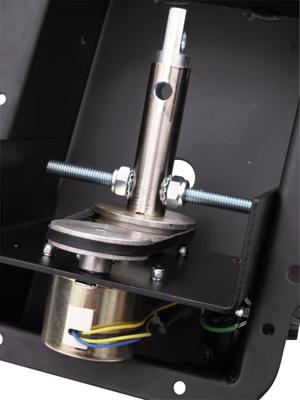

This solid mirror ball motor can carry a load of up to 40 kg. This equals a mirror ball of approximately 100 cm, 12-fold safety margin included. The motor has an adjustable speed. This creates either peaceful or more rapid effects.To make the most of these effects, you can add a pin spot to illuminate the mirror ball. The rotating direction and speed can be controlled via the DIP switches or any commercial DMX controller. For bigger light installations, a master-slave operation with multiple devices working in sync is also possible; no external control required.The motor is equipped with a patented mechanical drop protection against unintentional loosening of the axis as well as the required second eyelet for the attachment of the safety chain.All Eurolite safety motors comply with the safety norm DIN EN ISO 12100 and relevant accident prevention regulations. Each production charge is subject to strict quality control which makes the motor suitable for discotheques and other public events. The MD-3030 is delivered ready to use with safety plug and power cord.

DMX controlled motor for mirror balls up to 100 cm, up to 5 RPM

  • The maximum load always means the mirror ball weight including chains and the fixation material
  • 2 chains and 4 quick links must be ordered separately
  • The motor always has to be installed with a secondary safety attachment
  • Before taking into operation for the first time, the installation has to be approved by an expert
  • Control via stand-alone; DMX
  • Suitable for a mirror ball with a diameter of up to 100 cm
  • For application areas such as: Clubs/dancing school
  • Rotation speed adjustable; Rotation direction adjustable
  • Preprogrammed in LED PC-Control 512

Package contents

  • 1 x motor, 1 x user manual


Power supply:230 V AC, 50 Hz
Power consumption:5 W
IP classification:IP20
Protection class:Protection class I
Power connection:Fixed power supply cord with safety plug
Cable construction:3 x 0,75 mm² H05VV-F
Cable length:Approx. 0,9 m
Fuse:Circuit breaker, 2,5 A
Speed:0 RPM - 5 RPM forward/backward
DMX channels:1
Control:Stand-alone; DMX
Preprogrammed in:LED PC-Control 512
Maximum load:40 kg
Max. mirror ball diameter:100 cm (EUROLITE)
Housing color:Black matte
Diameter mounting holes:2 x Ã12mm; 4 x Ã8mm; 10 x Ã6mm
Material:Metal, 3 mm
Dimensions:Width: 28,5 cm
Depth: 23,5 cm
Height: 19 cm
Weight:6,20 kg

Productinformatie

    Productspecificaties

    Artikelnummer(s)
    EAN
    4026397454109
    Kenmerken
    Type product
    Motor
    Maximaal gewicht belasting
    40 kg
    Maximale baldiameter
    100 cm
    Rotatiesnelheid ( max)
    5 RPM
    Energie
    Stroombron
    AC
    Motor vermogen
    16 W
    AC-ingangsspanning
    230 V
    AC-ingangsfrequentie
    50 Hz
    Gewicht en omvang
    Breedte
    285 mm
    Diepte
    235 mm
    Hoogte
    190 mm
    Gewicht
    6,4 kg
    Verpakking
    Breedte verpakking
    285 mm
    Diepte verpakking
    265 mm
    Hoogte verpakking
    225 mm
    Gewicht verpakking
    6,75 kg
