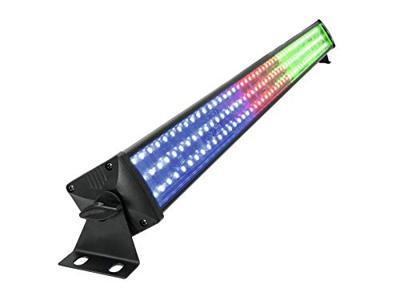

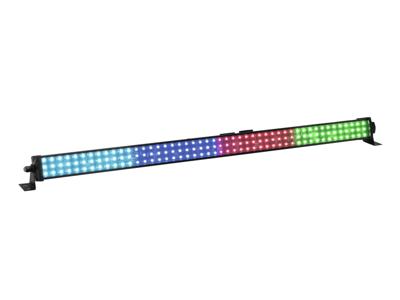

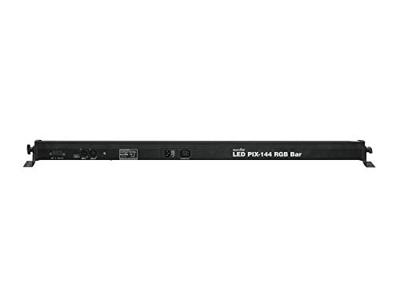

EUROLITE LED PIX-144 RGB Bar

Bar (100 cm) with 144 wide beam SMD LEDs (RGB), 8 segments144 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)8 segments controlled separatelyDimmer electronic; color blend stepless; color change adjustable; colors presetStrobe effectThe device is cooled by passive convection coolingControl via DMX; sound to light via microphoneFlicker-fr...

Snel naar

Prijzen

PrijzenProductomschrijvingProductspecificaties

Meer over EUROLITE LED PIX-144 RGB Bar

Productomschrijving

Bar (100 cm) with 144 wide beam SMD LEDs (RGB), 8 segments

144 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
8 segments controlled separately
Dimmer electronic; color blend stepless; color change adjustable; colors preset
Strobe effect
The device is cooled by passive convection cooling
Control via DMX; sound to light via microphone
Flicker-free
With mounting bracket
4 digit 7-segment LED display
Preprogrammed in LightÂ´J; LED PC-Control 512; Light Captain
Silent operation
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; party room; restaurants, bars and hotels; mobile djs / entertainer
Application possibility: Suspended; wall mounting

knurled screw

M8 thread

Package contents

1 x light effect, 1 x power cord, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x user manual

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	25 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
Fuse:	5 x 20 mm, T 1 A fuse replaceable
Lamp type:	LED lamp
LED type:	144 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Flash rate:	0 - 20 Hz
DMX channels:	3; 5; 6; 12; 24; 48
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	DMX; sound to light via microphone
Preprogrammed in:	LightÂ´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
Housing color:	Black
Attachment system:	2x mounting bracket
Display type:	4 digit 7-segment LED display
Material:	Aluminum casting
Dimensions:	Length: 1,02 m Depth: 6,5 cm Height: 8 cm
Weight:	1,54 kg
Noise classification:	Class 0 (no noise at all)
Power cord
Cable construction:	3 x 0,75 mmÂ² H05VV-F
Cable length:	Approx. 1,2 m
Mounting bracket
Diameter mounting holes:	1 x Ã11mm; 2 x Ã8mm; 1 x Ã8,5mm
Material:	Metal, 2 mm
Knurled screw
Thread:	M8 thread x 16 mm
Washer
Material:	Rubber
Dimensions:	Height: 3 mm Diameter: Ã 2 cm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
